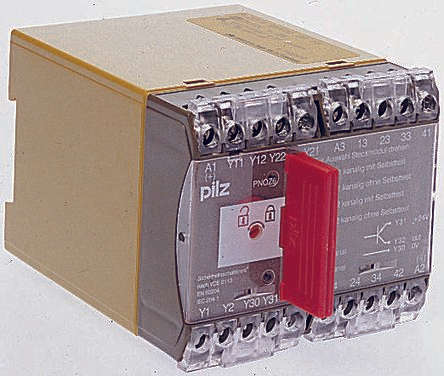

Product Details
Multi-input circuit options, 16 variations obtained via plug-in module supplied
Single or dual channel input

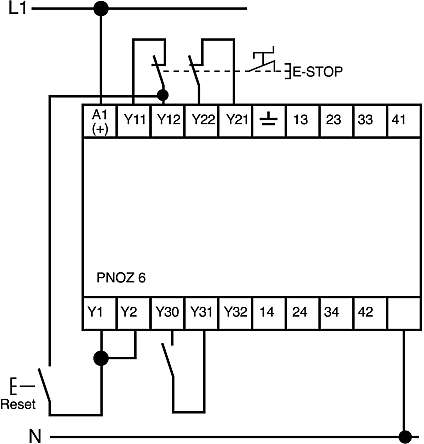

Can be used as emergency stop unit or safety gate monitor
Contact rating on safety circuit: 8A
Semiconductor output specifically designed to interface with PLCs
Recognises short circuited inputs
Allow extra 20mm on depth of unit for the plug-in card
TUV, BG, CSA
Standards
VDE 0113; EN 60204-1; IEC 204-1
Specifications
Attribute | Value |
---|---|
Supply Voltage | 24 V dc |
Number of Channels | 1, 2 |
Safety Contacts | 4 |
Terminal Type | Screw |
Configurable | Yes |
Depth | 110mm |
Width | 90mm |
Length | 75mm |
