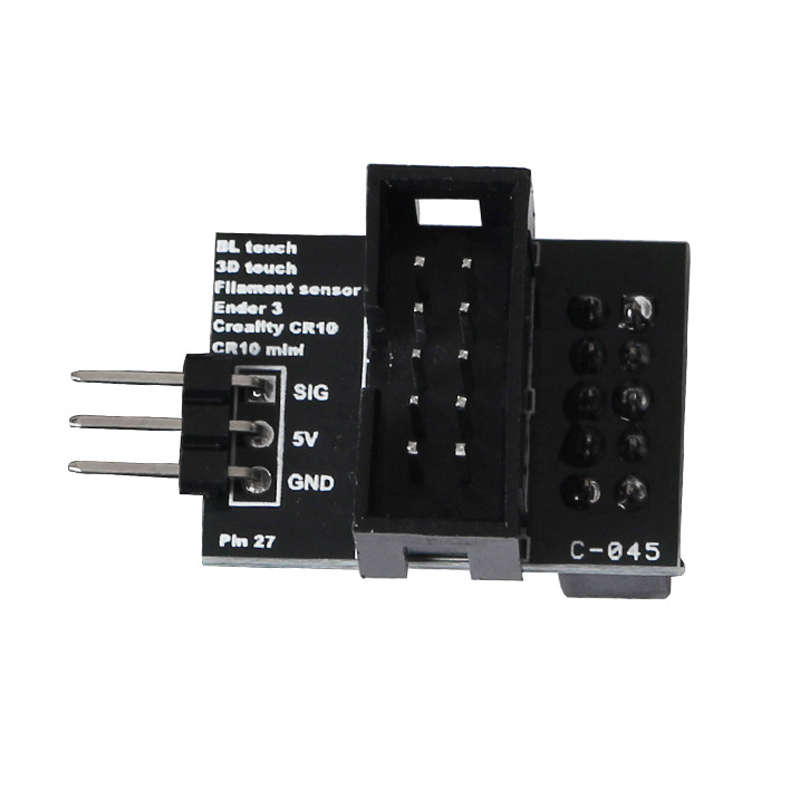

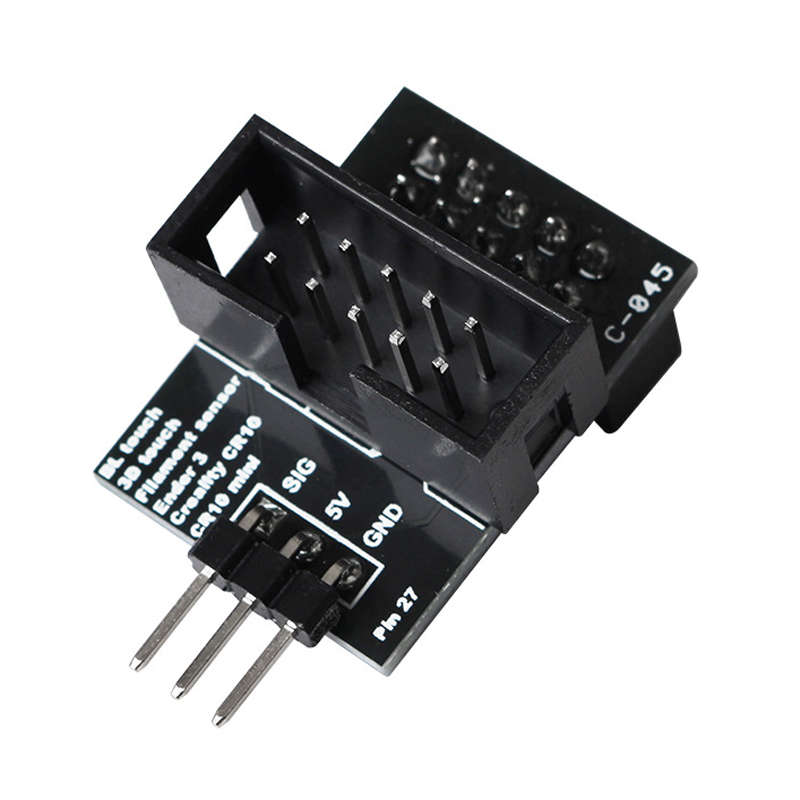

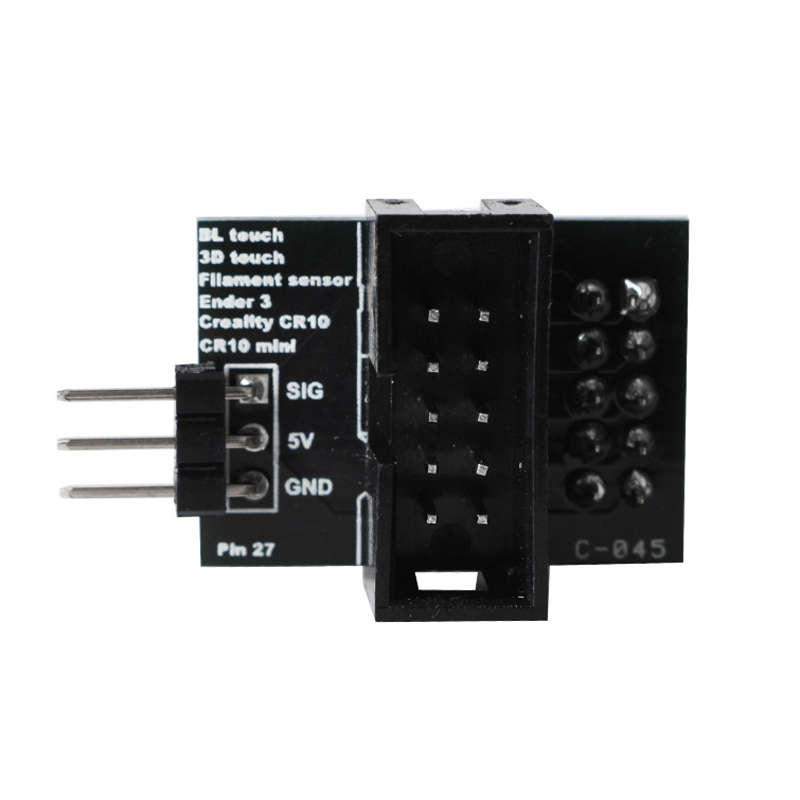

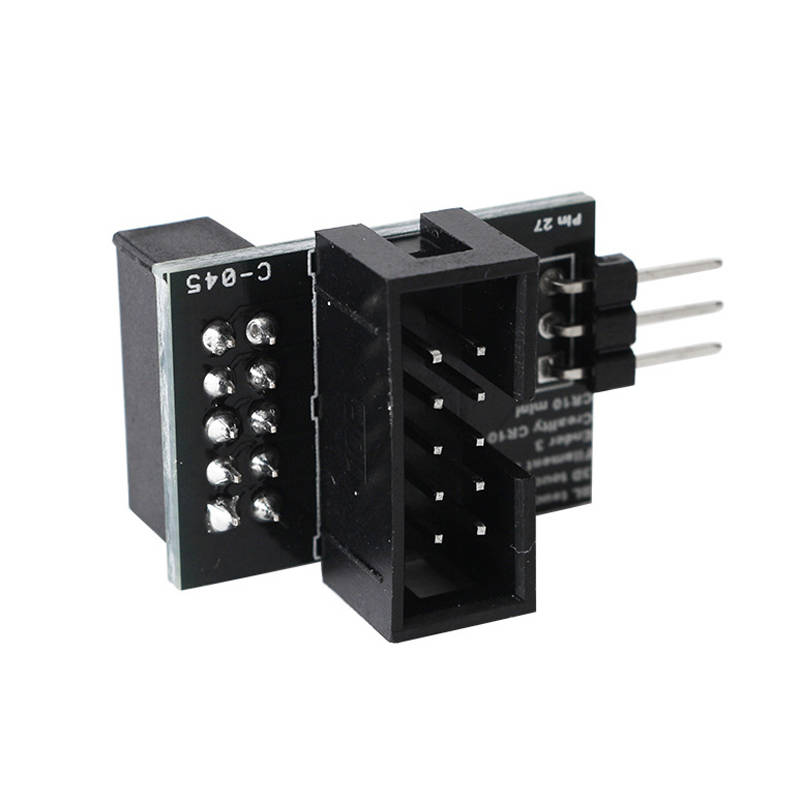

Product | Pin 27 Black PCB Board Adapter Plate for BLTouch Filament Sensor Compatible With Creality CR-10/Ender 3/Ender-5 3D Printer |
Important Information | If you have any pre-sale questions or require more information, please feel free to ask. Please confirm stock availability before purchasing. Please read the Shipping Options for information regarding shipping and delivery lead times and other important related information. |

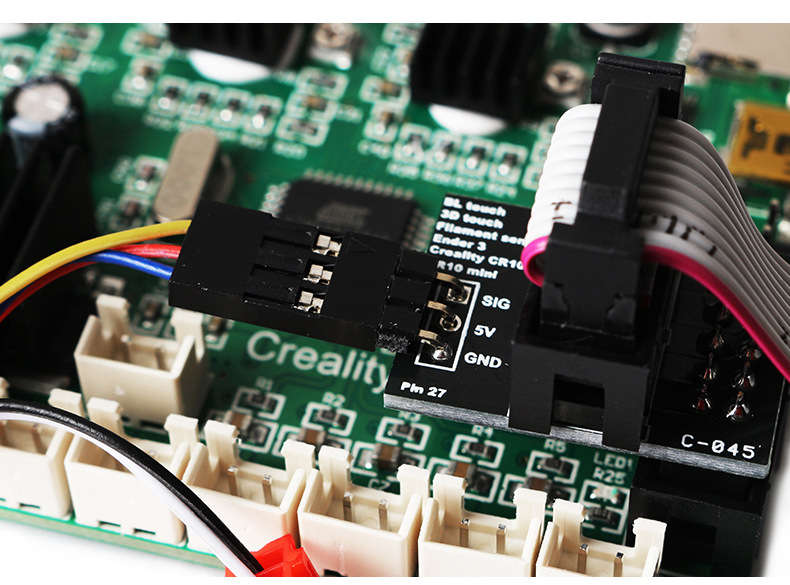

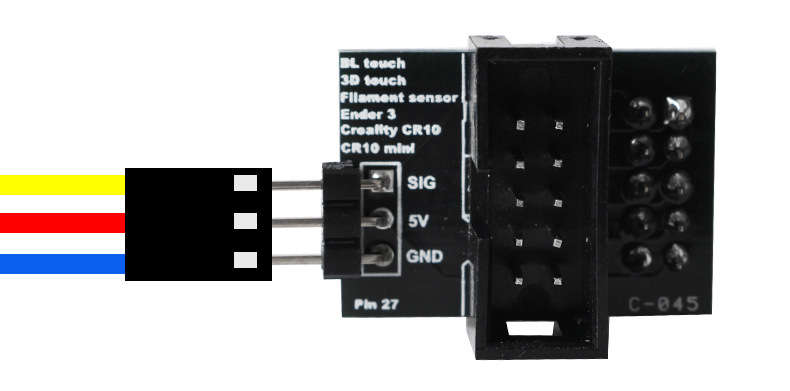

Features: ● This PCB board is black. Works on BLTouch or filament detection sensor. ● Improved design with wider power channels ● With this adapter, no wires need to be cut!! Simply connect this between your board and your cable, attach the 3 bltouch wires and upgrade your firmware. ● BLTouch is not included with the Pin 27 Board ● Compatible with: Ender 3/Ender 3 Pro/Ender 5/CR-10 Mini/CR-10. Incompatible with: ANet A8/CR-8 ● You must have a Bootloader flashed to your Ender 3 Board in order to use this. Using Note: ● Disconnect lcd ribbon ext1 on the control board ● Connect Ext1 to the pin 27 board ● Connect bltouch to the 3 pins on the pin 27 board. Left to right: Brown-Ground, Red-5v, Yellow-Signal ● Connect the pin27 to the main board. Make sure to align the header pins from the pin 27 to the main board. Installation instructions: Click to know more - Bootloader guide: Clilck - Ender 3 marlin guide: Cllick (no loss of ![]() - Ender 3 marlin with bltouch: Click (no loss of ![]() Package Included: 1 x Black Creality CR-10/Ender 3 Pin 27   ![]() ![]() ![]() ![]() ![]() |
