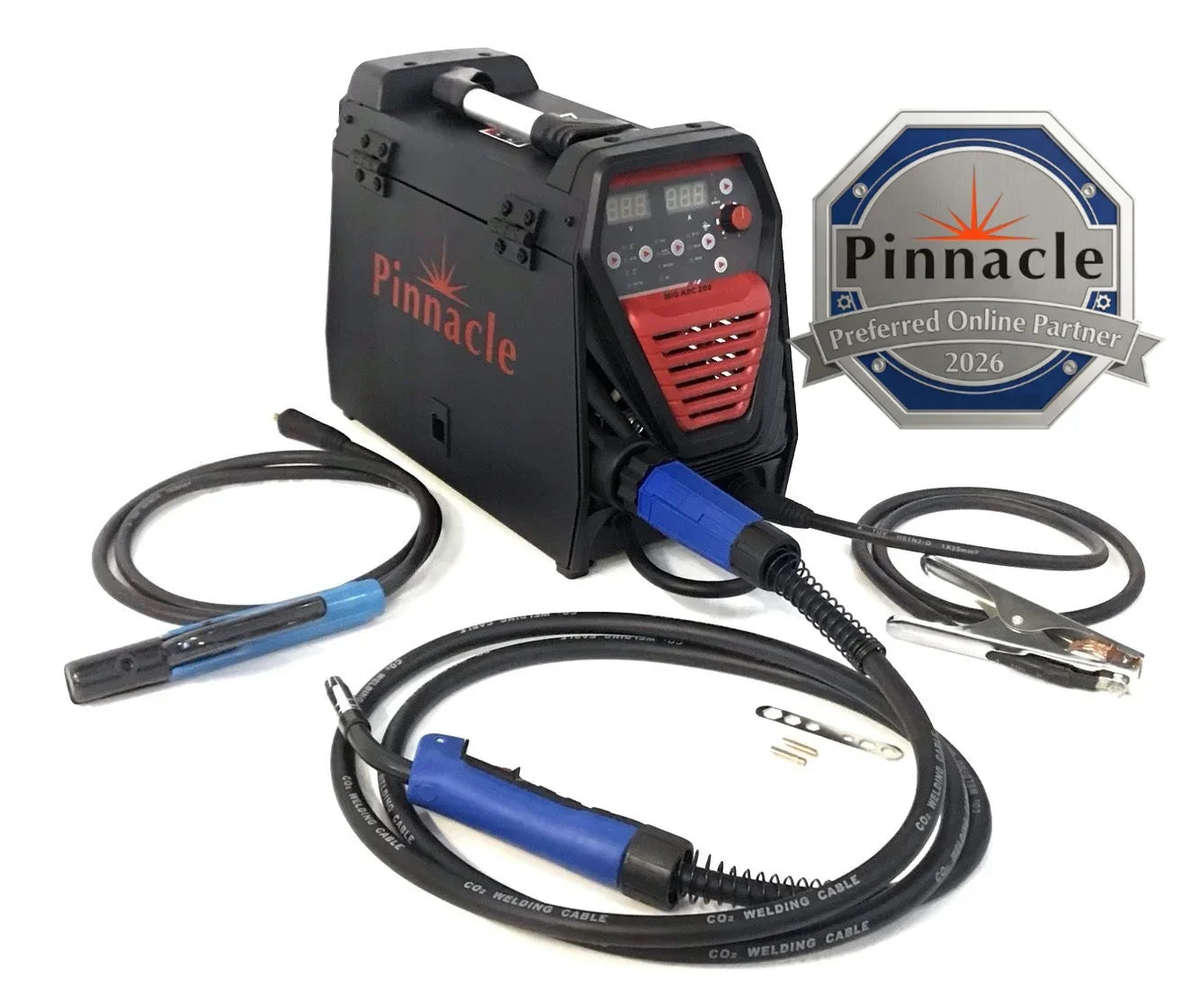

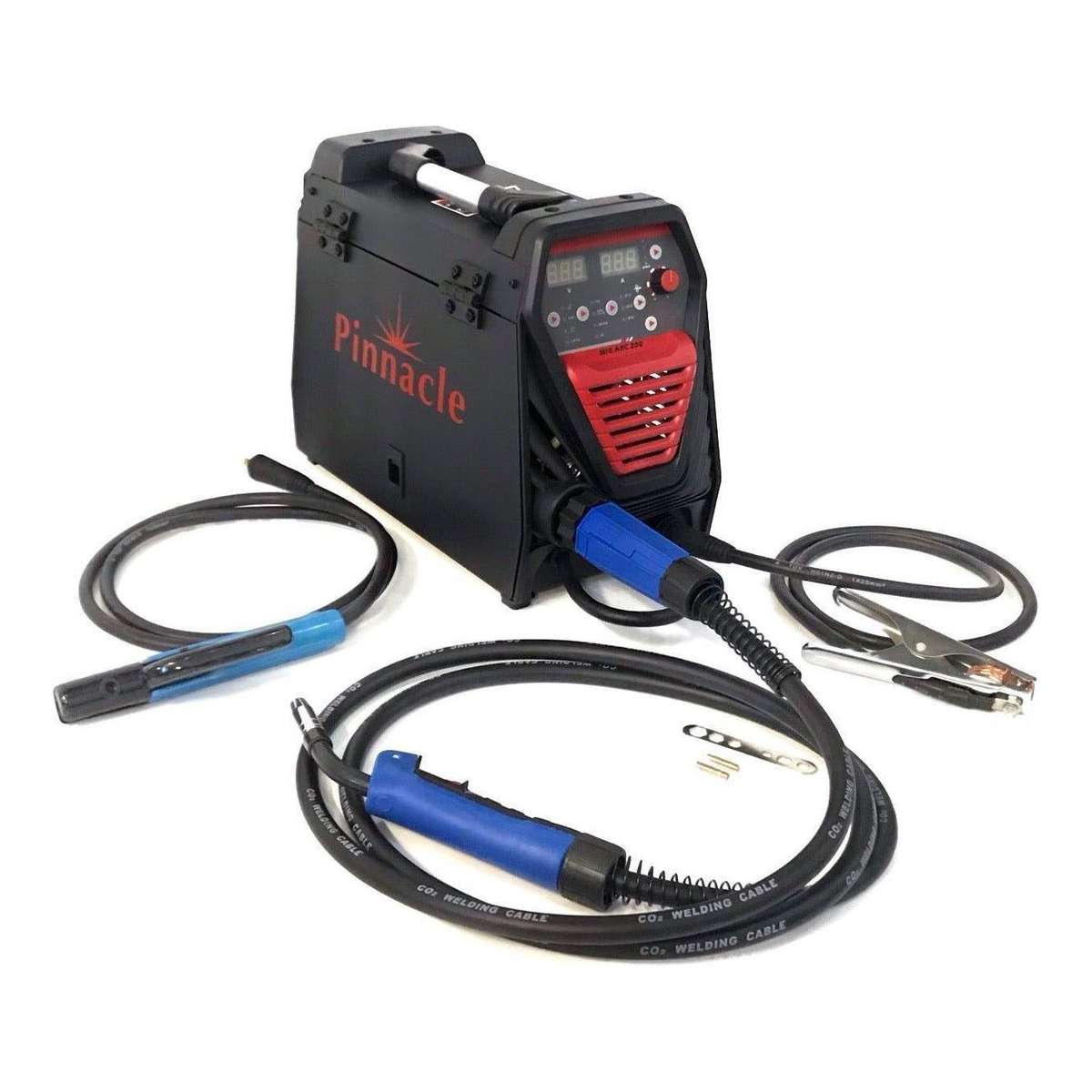

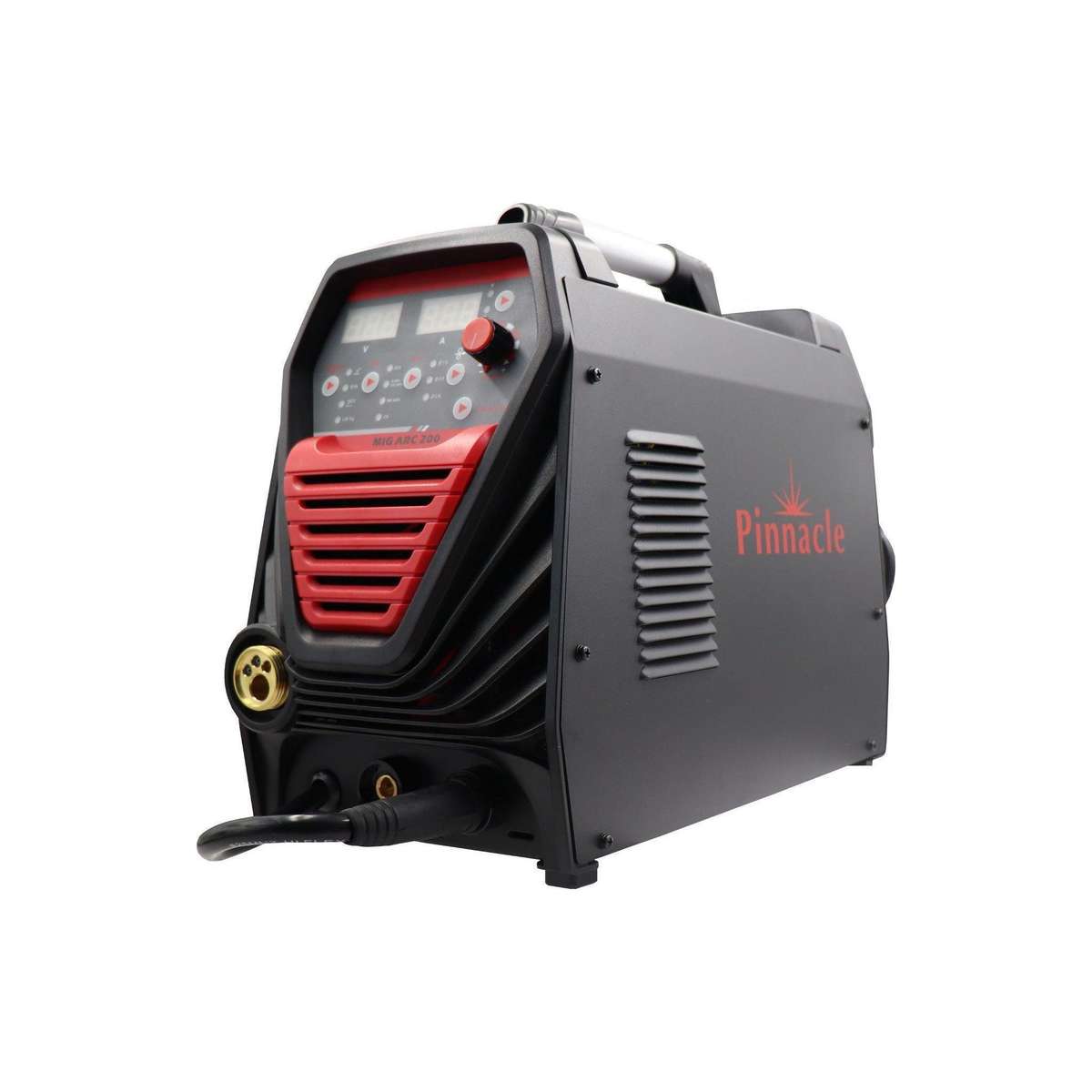

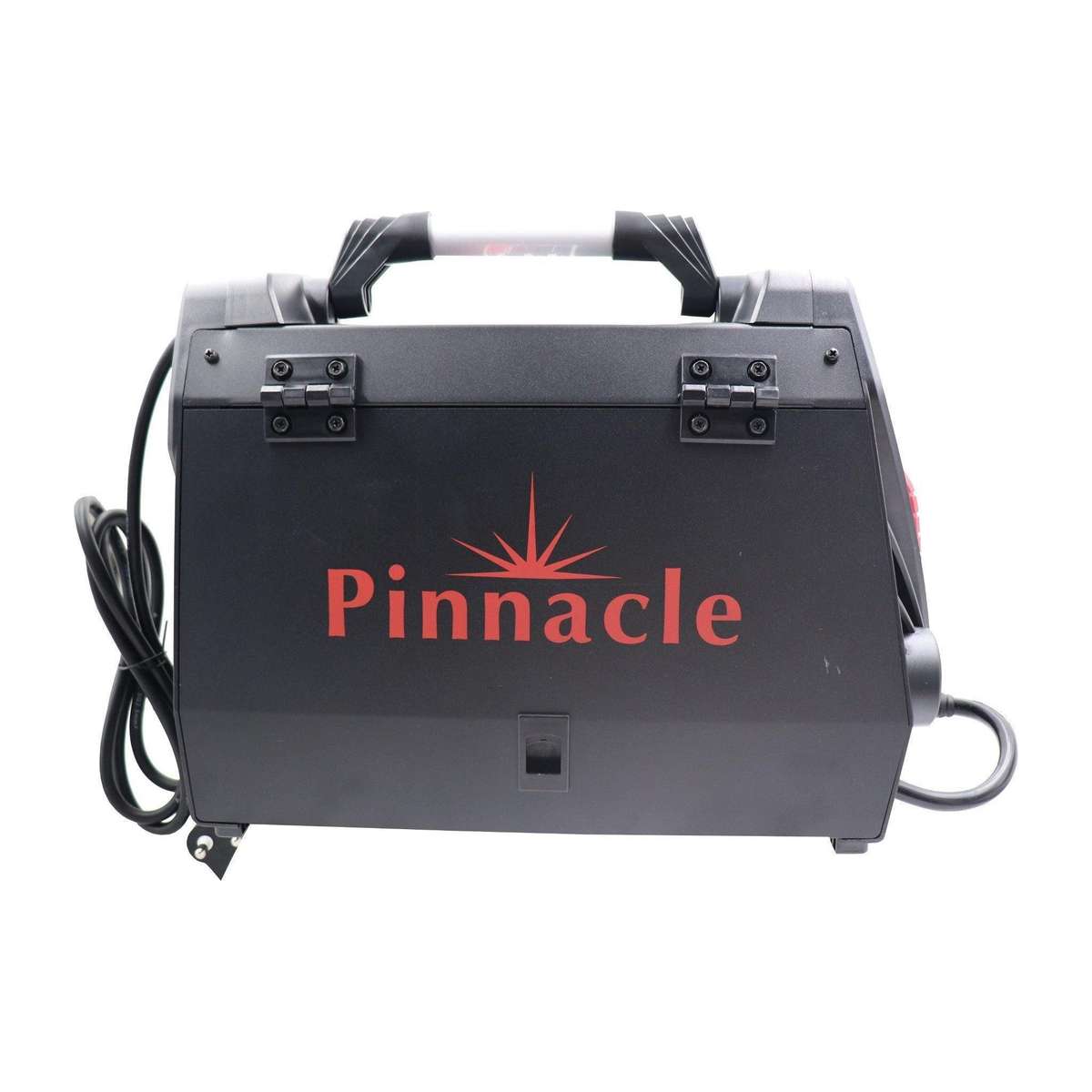

Pinnacle MIGARC 200 Digital Welding Machine – 220V Multi Process MIG/MMA/Lift TIG Inverter

The Pinnacle MIGARC 200 Digital Welding Machine is a compact, high-performance multi process inverter welder designed for precision and ease. With full support for MIG (gas & gasless), MMA (Stick), and Lift TIG welding, it features a synergic digital control panel that auto-adjusts wire speed and voltage for smoother welds. Whether you're working in a garage, workshop, or on-site, this machine delivers plug & play simplicity with serious welding power.

Key Features

    MIG (gas & gasless), MMA (Stick), and Lift TIG welding processes

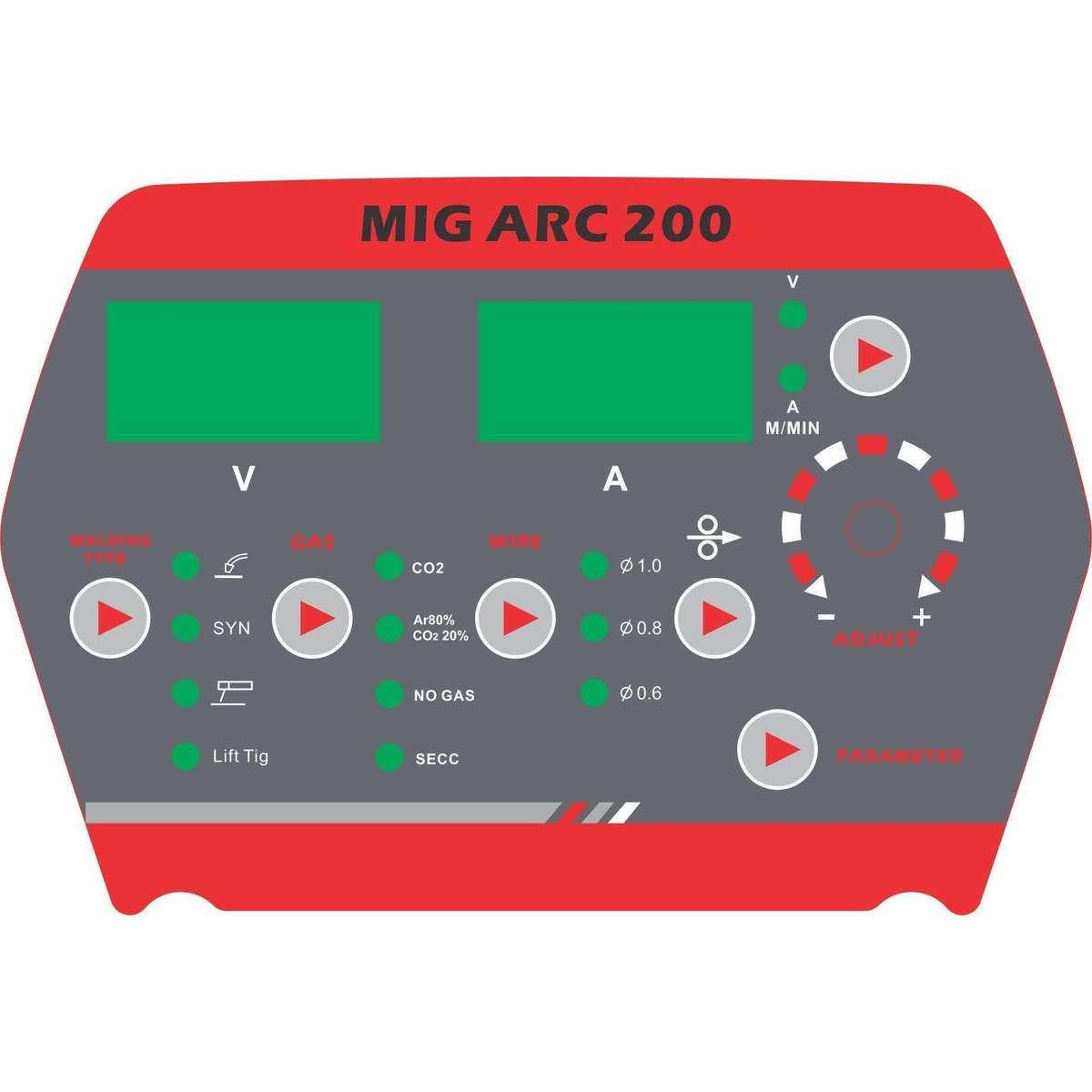

    Synergic digital control panel with preset welding modes
    Microprocessor operation for precise arc control
    Built-in wire feeder for 5kg spools
    Removable MB15 torch with 2m Euro connector
    Fan-cooled system for extended duty cycles
    Compact, portable design with carry handle
    Safety-certified with IP21S protection class
    IEC60974-1 compliant
    12-month warranty

Specifications

    Input Voltage: AC 220V ±15%, Single Phase
    Frequency: 50/60 Hz
    Rated Input Power Capacity: MIG: 6 kVA  MMA: 5.4 kVA  Lift TIG: 3.3 kVA
    Rated Input Current: MIG: 27A  MMA: 24.5A  Lift TIG: 15A
    No-Load Voltage: 52V
    Output Current Range: MIG: 20200A  MMA: 20200A  Lift TIG: 20160A
    Duty Cycle: 60% @ 200A
    Wire Diameter Compatibility: 0.6mm / 0.8mm / 0.9mm / 1.0mm
    Electrode Size: MMA: 2.0mm 3.2mm  Lift TIG: 1.6mm 2.0mm
    Spool Capacity: 5kg only
    Weight: Approx. 13kg
    Dimensions: 525 × 380 × 380mm

What's Included

    Pinnacle MIGARC 200 Digital Welding Machine 220V
    MB15 MIG Torch (Removable, 2m)
    Earth Clamp with Cable
    Electrode Holder with Cable
    Quick Start Guide & User Manual
