Pinnacle MIGARC 200 Gasless Welding Machine Combo – 220V Digital Multi Process MIG/MMA/Lift TIG...

The Pinnacle MIGARC 200 Gasless Combo is a high-performance digital inverter welding machine built for DIY users, weekend warriors, and light industrial tasks. With full support for MIG (flux core), MMA (Stick), and Lift TIG welding, this 220V single-phase unit delivers up to 200A output with a 60% duty cycle. Its synergic control panel simplifies setupautomatically adjusting wire speed and voltage for smoother welds. Whether you're working outdoors, in a garage, or on-site, this machine offers gasless convenience, precision control, and plug & play simplicity.

Key Features

    Multi Process Capability: MIG (gasless), MMA (Stick), Lift TIG
    Digital Synergic Control: Auto-adjusts wire speed and voltage for optimal welds
    Gasless MIG Ready: Weld with flux core wireno shielding gas required
    Microprocessor Operation Panel: Intuitive digital display for easy setup
    Compact & Portable: Lightweight design with carry handle for mobile use
    Built-In Wire Feeder: Supports 5kg flux core wire spools
    Removable MB15 Torch: 2m Euro connector torch for quick maintenance
    Heavy-Duty ARC Kit: Electrode holder and earth clamp included
    Fan-Cooled System: Maintains performance under extended use
    Safety & Compliance: IP21S protection class, IEC60974-1 certified
    Warranty: 12 Months

Specifications

    Input Voltage: AC 220V ±10%, Single Phase
    Rated Power Capacity: 7.1 kVA
    No-Load Voltage: 53V
    Output Current Range: 10200A
    Duty Cycle: 60% @ 200A
    Wire Diameter Compatibility: 0.6mm / 0.8mm / 0.9mm
    Electrode Size: 2.0mm 3.2mm
    Spool Capacity: 5kg only
    Weight: Approx. 12.5kg
    Dimensions: 480 × 180 × 350mm

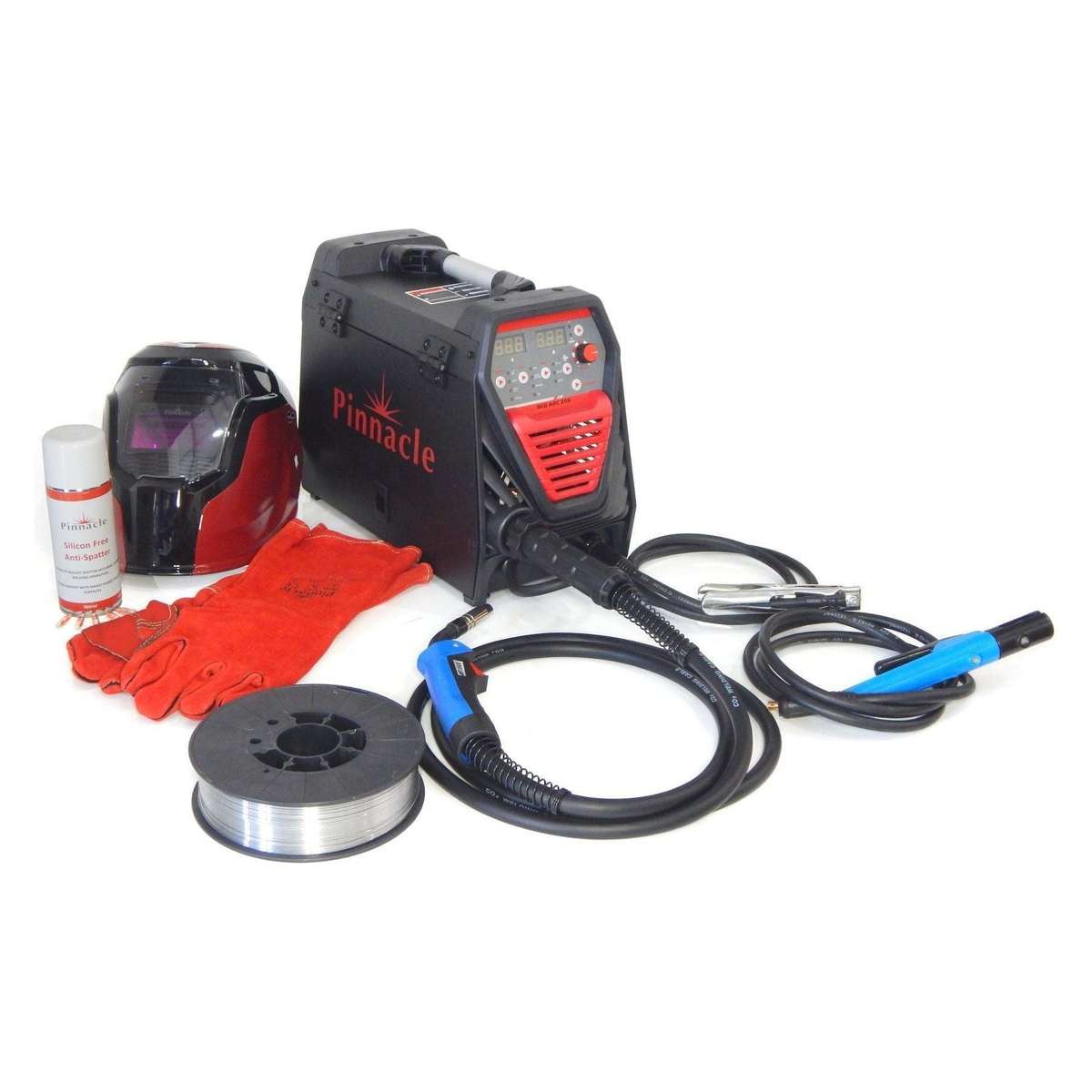

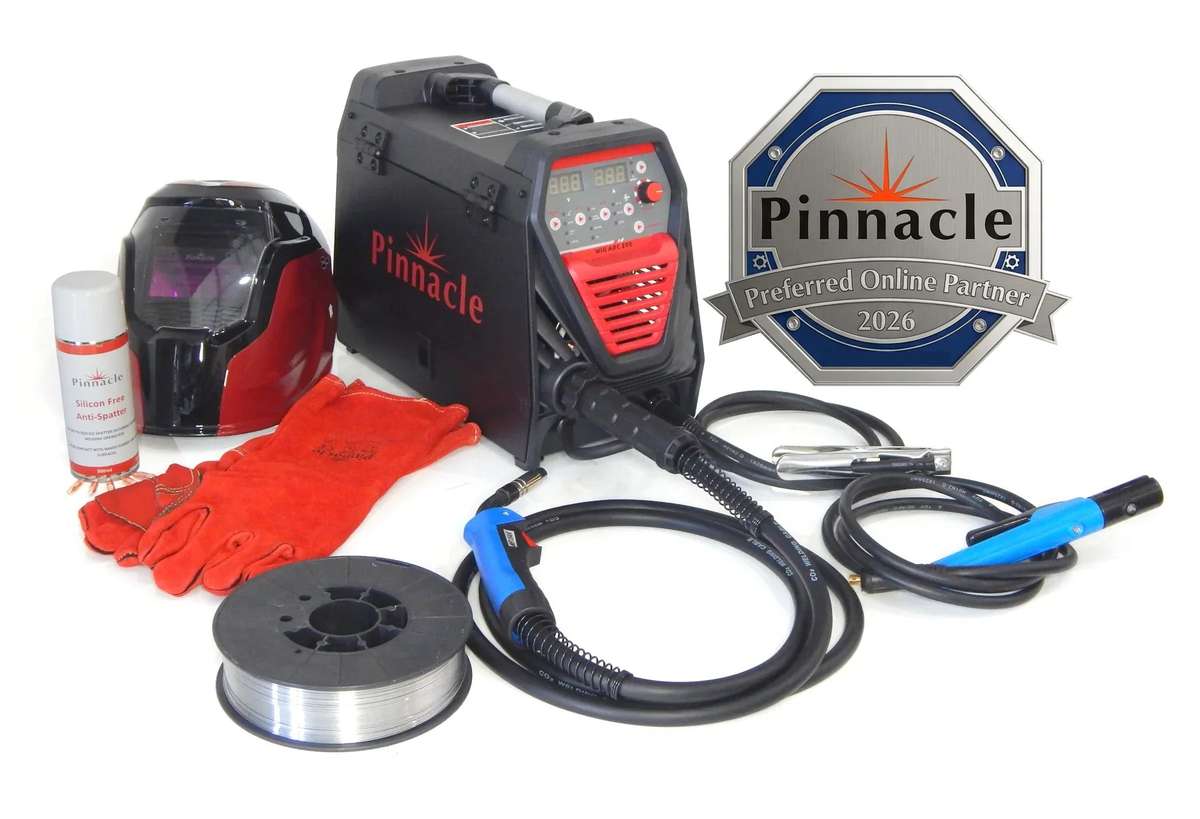

What's in the Combo Kit

    Pinnacle MIGARC 200 Digital Gasless Welding Machine 220V
    MB15 MIG Torch (Removable, 2m)
    Earth Clamp with Cable
    Electrode Holder with Cable
    5kg Flux Core MIG Wire (0.9mm E71T-11)
    5 × M6 Contact Tips (0.9mm)
    Auto-Darkening Welding Helmet (Otosola with grind mode)
    Red Heat-Resistant Welding Gloves
    Anti-Spatter Spray
    Wire Brush & Chipping Hammer
     User Manual
