Pinnacle PrimiTIG ACDC 208P TIG Welding Machine

Digital Multi-Process ACDC Pulse TIG/MMA Machine

Features:

- AC/DC TIG & MMA & Pulse 4 in 1, more compact design, easy to carry.

- Microprocessor control; simple operation, better welding performance.

- 10 Programmable slots, save your parameters for specific welding projects.

- Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds.

- The unique air duct design; failure rate greatly reduced, extending the service life of the machine.

- Various Output Wave settings for professional welding applications

- Auto protection against over-voltage and under-voltage

- Lightning strike, over-current and over-heat protection

- Generator safe

Specifications:

- Input Power Voltage (V): AC 220V +/- 15%, Single Phase

- Input Voltage Frequency (Hz): 50/60

- Rated Input Power Capacity (KVa): MMA: 4.6 ; TIG: 7

- No-Load Voltage (V): 60

- Output Current Range (A): MMA: 5-200 ; TIG: 40-200

- Duty Cycle (%): 60% at 40 C

- Pre-Flow: TIG: 0-10 sec

- Post Flow: TIG 0-10 sec

- Pulse Frequency (Hz): 0.1 - 20

- Weight (Kg): 14

- Dimensions (mm): 480 x 200 x 295

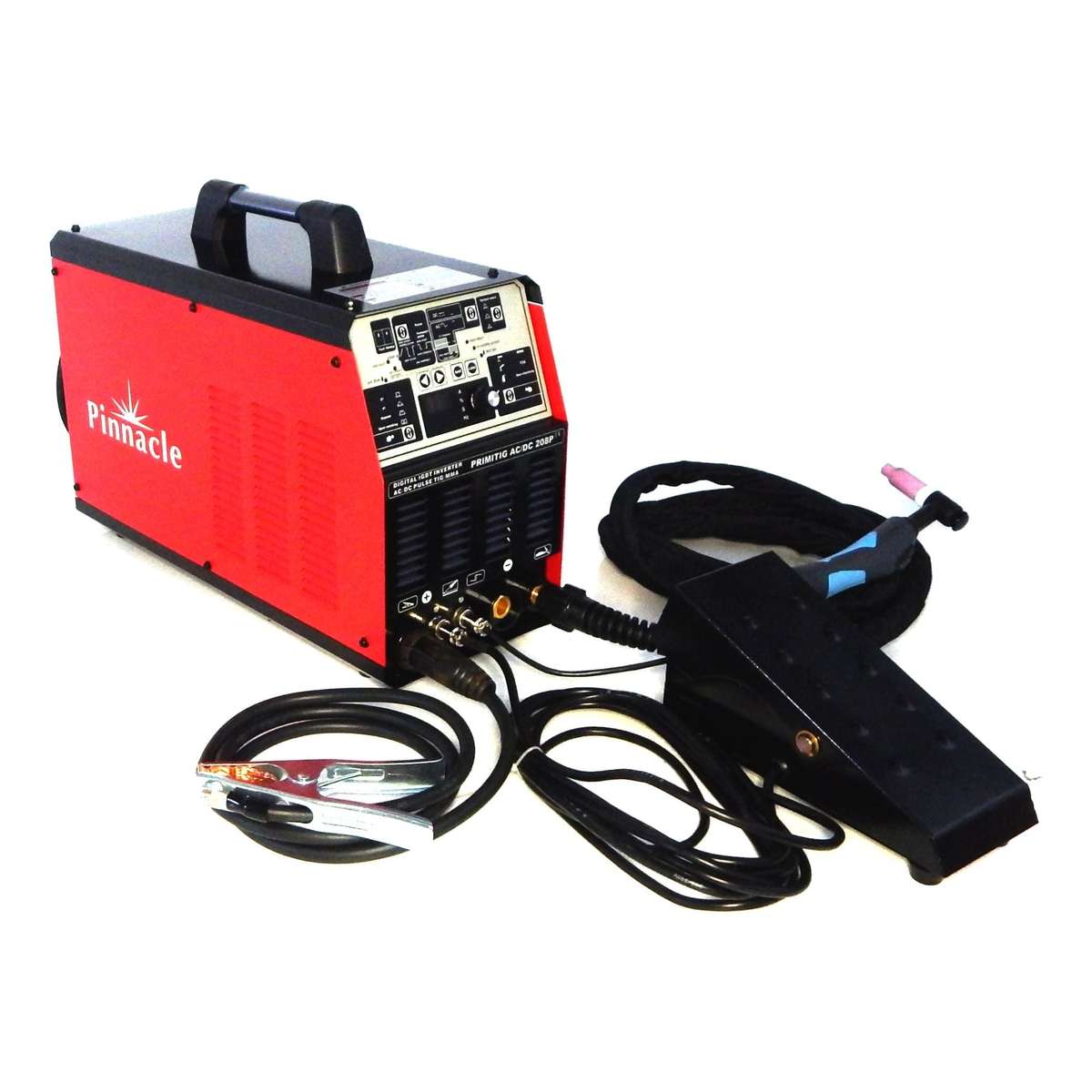

What's in the Box:

- Inverter Power Source

- WP26 4Mt TIG Torch HF

- Earth Clamp & Cable

- Foot Control
