Pinnacle Protig 180 TIG/MMA Welding Machine

Pinnacle Protig 180 TIG/MMA Welding Machine

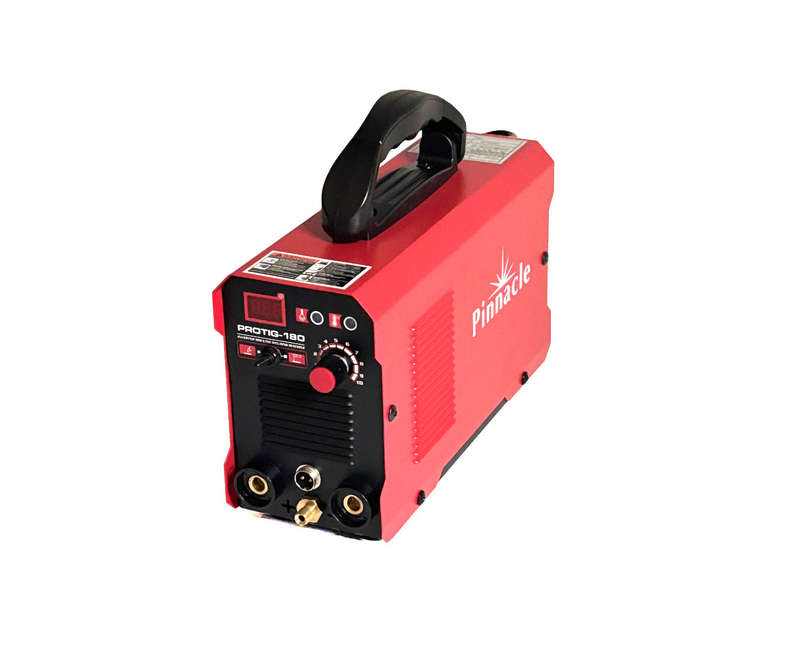

The Pinnacle PROTIG 180 TIG/MMA Welding Machine is a compact, high-performance inverter welder designed for both professional and DIY use. It features advanced IGBT module technology, delivering stable and precise welding for a variety of applications, including stainless steel and mild steel.

• Dual Functionality: Supports both TIG and MMA welding processes.
• Digital Display: Allows for easy adjustments and improved accuracy.
• Overheat Protection: Built-in safety to prevent damage during extended use.
• Lightweight & Portable: Weighs just 3.7 kg, ideal for on-site or workshop use.
• Power Specs: Operates on 230V ±15%, with a welding current range of 10180A for TIG and 10160A for MMA.

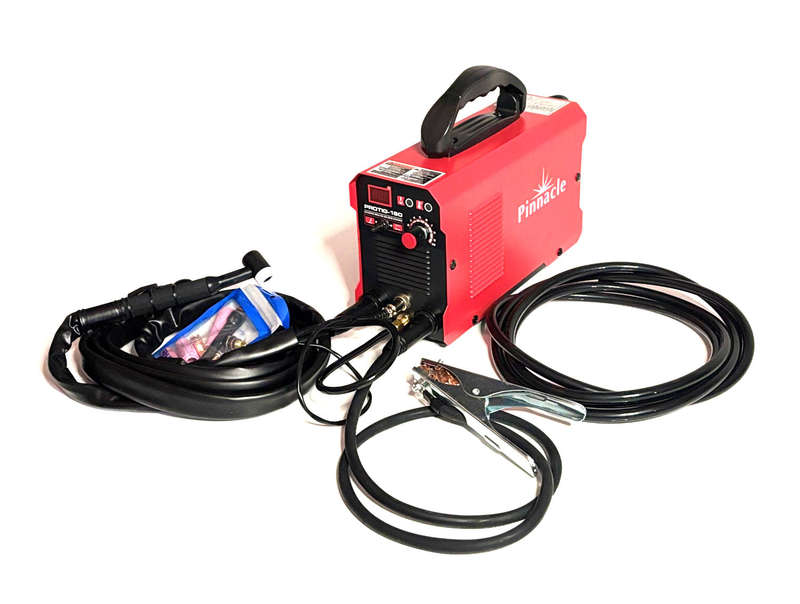

It comes equipped with a 3m WP-17 split TIG torch, earth clamp, and cableready to go right out of the box. A solid choice if you're after efficiency, portability, and versatility in one sleek unit.

Technical Data

• Rated Input Voltage: 230V ±15%
• Frequency: 50/60 Hz
• Output No-Load Voltage: 62V
• Rated Input Current: 30A
• Welding Current Range: TIG 10180A MMA 10160A
• Duty Cycle: 30% at 25°C
• Efficiency: 75%
• Power Factor: 0.85
• Insulation Class: H
• Protection Class: IP21S
• Weight: 3.7 kg
• Dimensions: 340 × 115 × 220 mm
