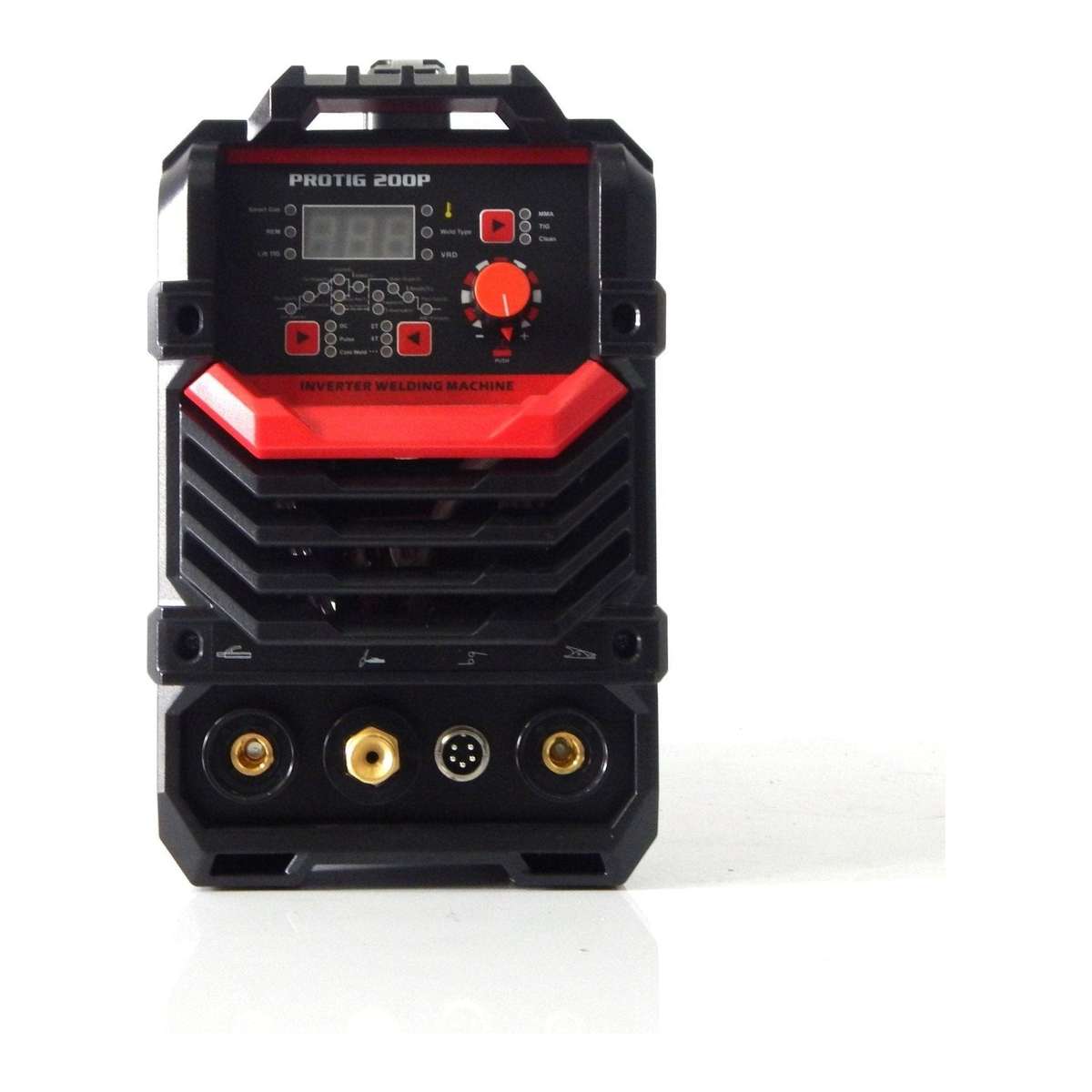

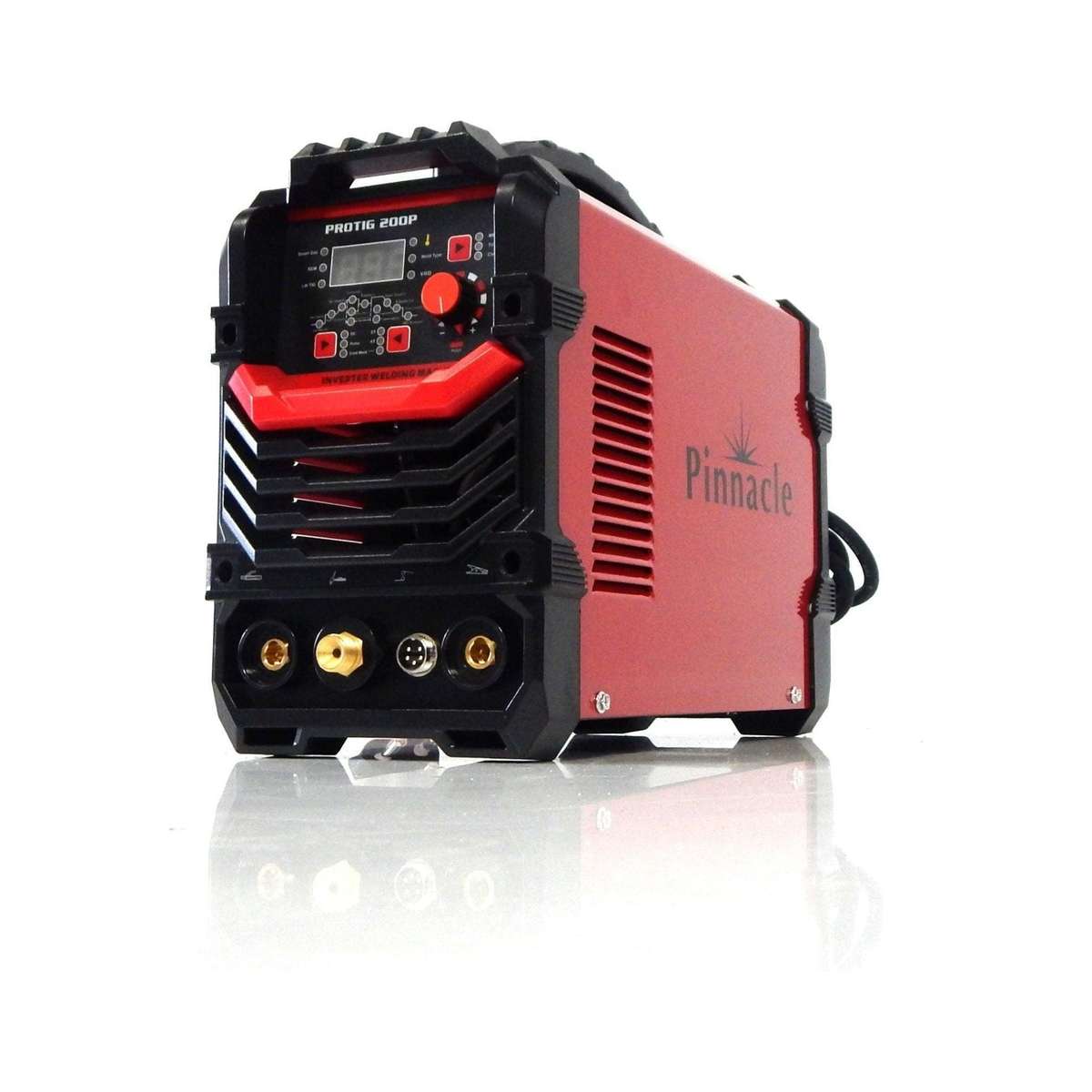

Pinnacle PROTIG 200P DC TIG Inverter Welding Machine

The Pinnacle PROTIG 200P DC TIG Welder is a high performance DC TIG welder which features a full range of pulse functions and cleaning control.

Features:

- Processes include MMA, Square Wave DC TIG, DC Pulse TIG and TIG Spot Welding

- Compact design with multi-functionality and steady welding performance and efficiency

- User-friendly Control Panel

- Various Welding Modes

- Real-time Display of Output Current

- Anti-Stick and VRD Function

- Self Adaptive Propulsive Force Current (improves performance and longer welds)

- Advanced HF Arc Striking Force Current

- Intelligent Temperature Control

Specifications:

- Input Voltage: AC 220V Single Phase

- Input Frequency: 50/60 Hz

- Rated Input Peak Current: 35A

- Power Capacity: 6.0 Kva

- Rated Output Current: (MMA: 160A) (TIG: 200A)

- Output Current Range: (MMA: 20-160A) (TIG: 100-200A)

- Current Range of Arc Force: 0-100A

- No Load Voltage: (12V with VRD) (60V without VRD)

- Pre Flow Time: 0.1-15s

- Post Flow: 0.5-15s

- Start Current: 10-100%

- I-finish: 10-100%

- Down Slope Time: 0-15s

- Up Slope Time: 0-15s

- Base Current: 10-200A

- l-base- 10-100A

- T-weld - 1-999ms

- T-interval- 0.1-10s

- Pulse Frequency: 0.2-20Hz

- Pulse Ratio: (0.2Hz~10Hz: 1~99%) (11Hz~200Hz: 10~90%)

- Trigger Start: Yes

- Arc Strike: High Frequency

- Efficiency: 85%

- Duty Cycle: (160A (MMA)-60%) (200A (TIG)-60%)

- Power Factor: 0.85

- Insultation Degree: F

- Protection Degree: IP21S

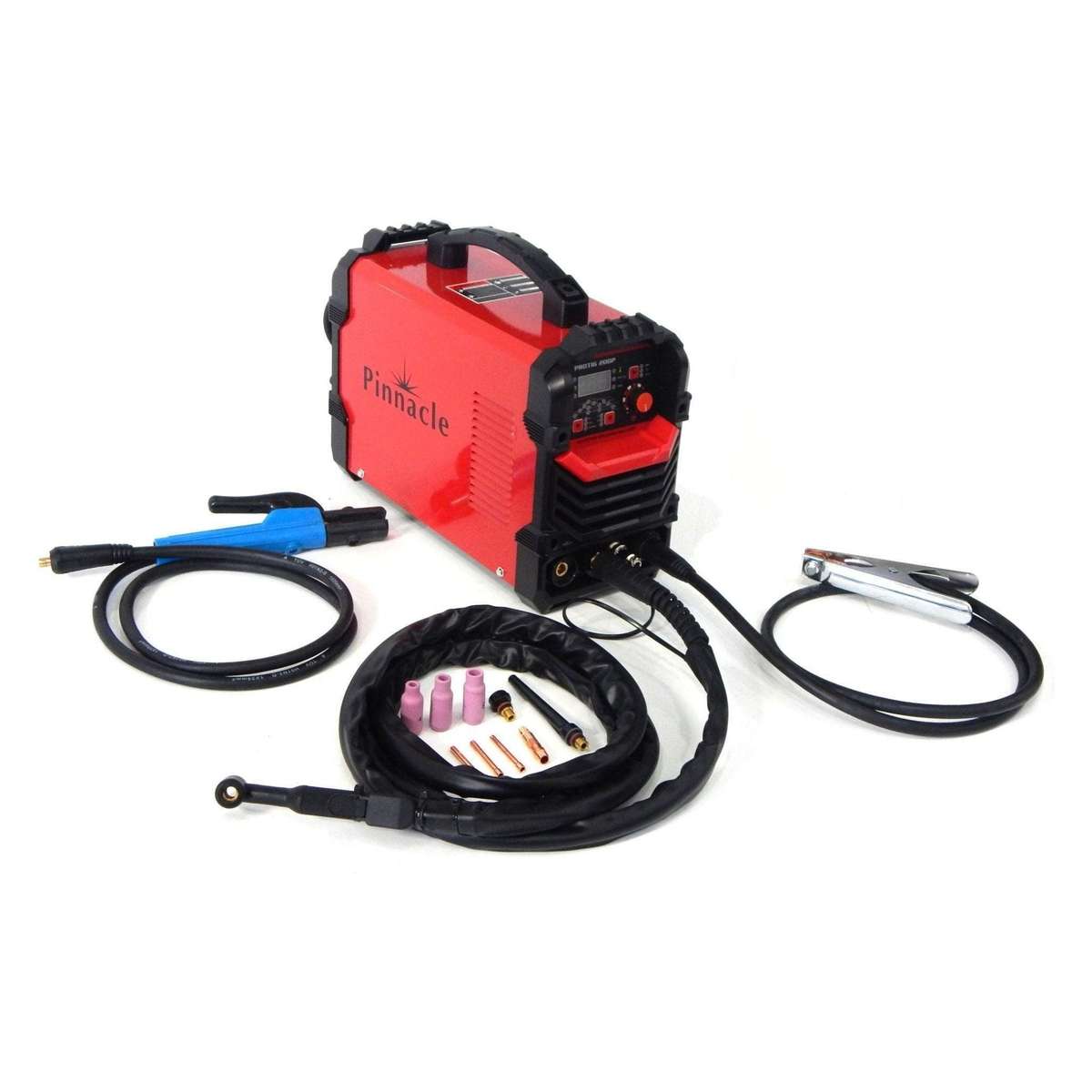

What's in the Box:

- 200A TIG Inverter Welder

- Wp17 Tig Torch with Trigger 4M

- Electrode Holder & Cable for Stick Welding)

- Pack of TIG consumables
