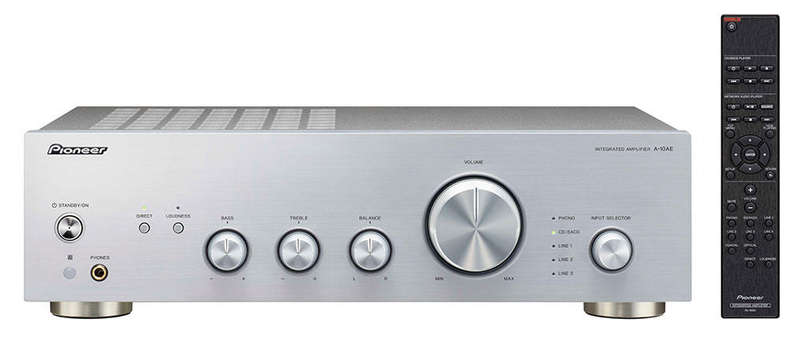

Pioneer A-10AE Integrated Amplifier - Silver
The Pioneer A-10AE integrated amplifier is the perfect solution for those looking to add crisp and dynamic sound to their home stereo system.
Immerse yourself in the clarity
All the beauty and intensity of a live performance, right from the comfort of your couch. Whatever media format you love vinyl, streaming, or even CDs this dynamic amplifier will reproduce all the finest nuances your favorite artists want you to hear as you fall in love with their work all over again.
Based on Pioneer's Direct Energy Design concept, lossless transfer of energy from the amplifier to the speakers, the A-10AE integrated amplifier pursues a high S/N ratio to create an overwhelming sound field rich with reality.
Direct function
The A-10AE features Direct Function, which bypasses other circuits except for the volume to offer a pure listening experience suitable for musical content. The function is not just a simple switching, but is finely tuned to enhance the musicality.
Isolated power supply
The windings for the power amplifier, pre-amplifier, and controls are each separated inside the power transformer to prevent mutual noise interference.
Auto standby
Auto standby can be enabled to automatically turn off the receiver after being left uncontrolled.
Amplification & Design
Application Type: Direct Energy
Analog Discrete 2ch Amplifier
Isolated Power Supply Circuits
1.6 mm-Thick Rigid Steel Chassis
50 W/ch (20 Hz-20 kHz, THD 0.9 %, 4 ohms, 2ch Driven, FTC)
30 W/ch (20 Hz-20 kHz, THD 0.7 %, 8 ohms, 2ch Driven, FTC)
Screw Type Speaker Terminals Compatible with Thick Cables
Auto Standby
Audio Features
Direct Function for Pure Sound Output as Originally Intended
THD: 0.05 %, 8 ohms, 1 kHz, half power
S/N Ratio: LINE In, SP Out 103 dB
Tone Controls: Bass (100 Hz)/Treble (10 kHz): ±10 dB
Frequency Response: DIRECT 10 Hz-100 kHz, +1 dB/-3 dB
Balance Control
Loudness

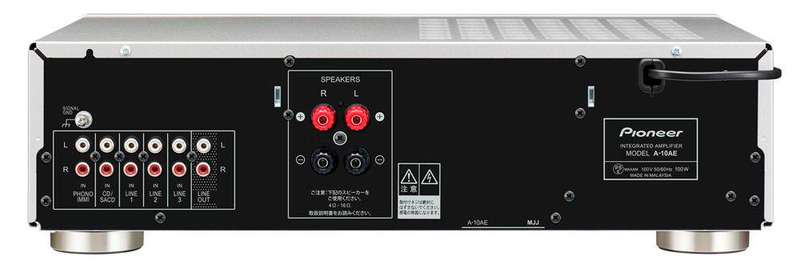

Terminals
Analog Audio Inputs: PHONO (MM), CD/SACD,
LINE 1, LINE 2, LINE 3
Analog Audio Output: LINE OUT
Phones Output
Specifications
Power Requirements: AC 120 V, 60 Hz
Power Consumption (in Use/in Standby): 130 W/0.1 W
Dimensions (W x H x D): 17-1/8 x 5-1/16 x 12-11/16
inches (435 x 129 x 323 mm)
Weight (Without Package): 15.0 lbs (6.8 kg)
