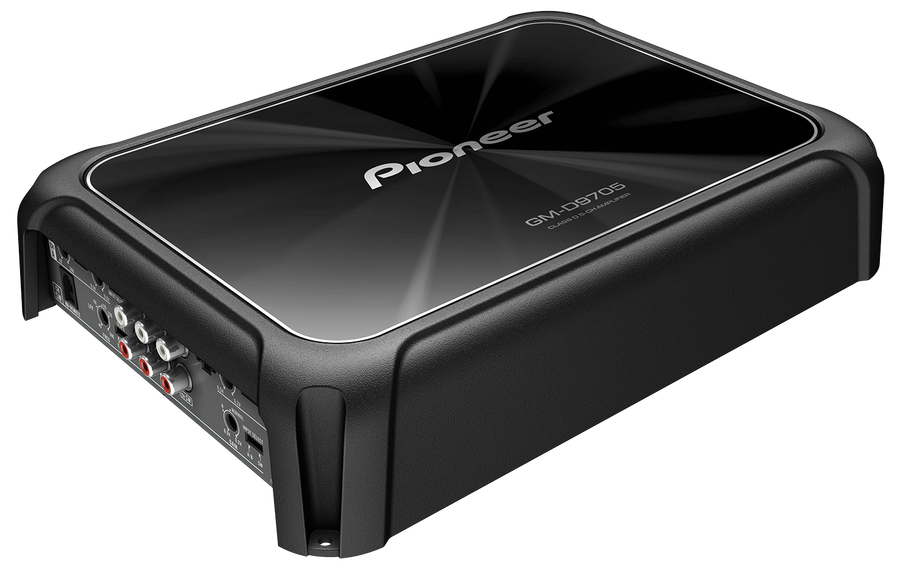

Pioneer GM-D9705 4X75RMS & 1X600RMS 5-Channel Amplifier

Pioneer GM-D9705

• Amplifier Class: Class-FD
• No. of Channels: 5/3
• Max.power output: 150 W x 4 (A-/B-Ch.) / 700 W x 1 (Subwoofer Ch. ) (4) 200 W x 4 (A-/B-Ch.) / 1,200 W x 1 (Subwoofer Ch. ) (2) 400 W x 2 (A-/B-ch Bridgedable ) (4 Bridged)
• RMS power output: 75 W x 4 (A-/B-Ch.) / 350 W x 1 (Subwoofer Ch. ) (4) 100 W x 4 (A-/B-Ch.) / 600 W x 1 (Subwoofer Ch. ) (2) 200 W x 2 (A-/B-ch Bridgedable ) (4 Bridge
• Frequency Response: 10 Hz to 50 kHz (A-/B-Ch.) 10 Hz to 500 Hz (Subwoofer Ch.)
• Impedance: 2 to 8
• Total Harmonic Distortion(THD)<0.05% (A-/B-Ch.: 1 kHz) (Subwoofer Ch. : 100 Hz)
• S/N Ratio>94 dB
• Speaker Level Input
• Automatic Signal Sensing and Turn-On
• Crossover Type: Variable HPF/LPF
• Crossover Frequency: 40 Hz to 500 Hz
• Bass Boost Frequency: 50 Hz (Subwoofer-Ch)
• Baas Boost Level: 0 dB to 18 dB (Subwoofer-Ch)
• Bass Boost Remote (Subwoofer-Ch)
• Dimensions302 mm x 60 mm x 215 mm
