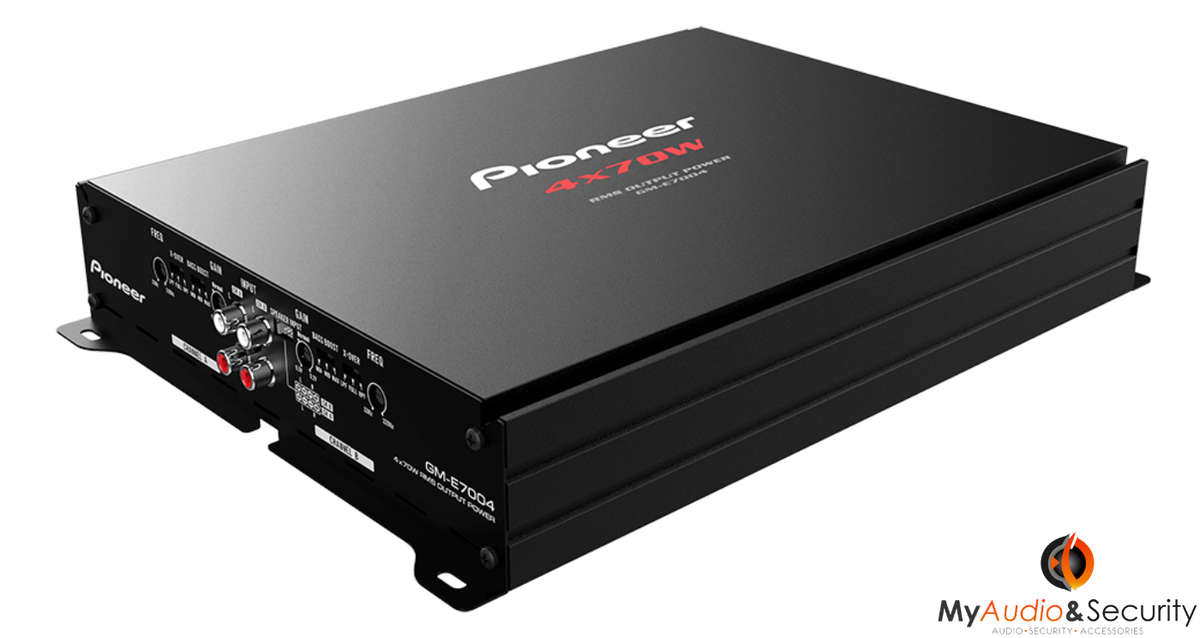

Pioneer GM-E7004 4 Channel 4x70W Amplifier

PIONEER GM-E7004 4 CHANNEL 4X70W AMP.

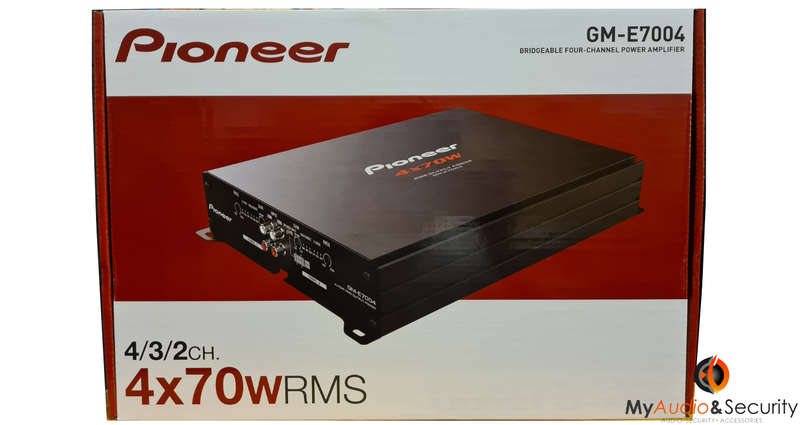

Front of Box

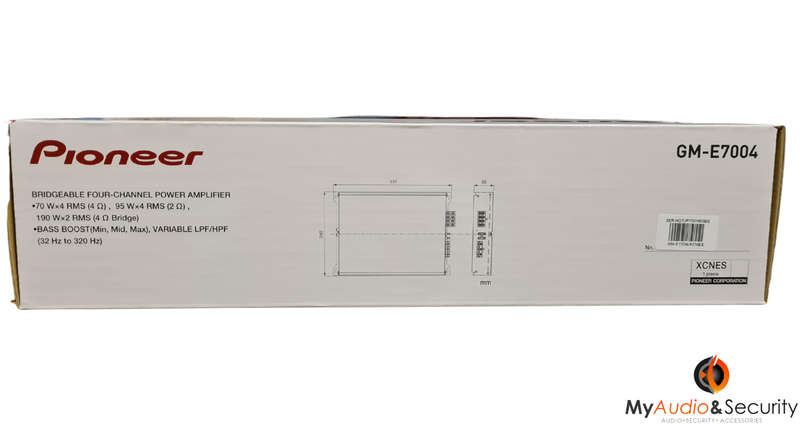

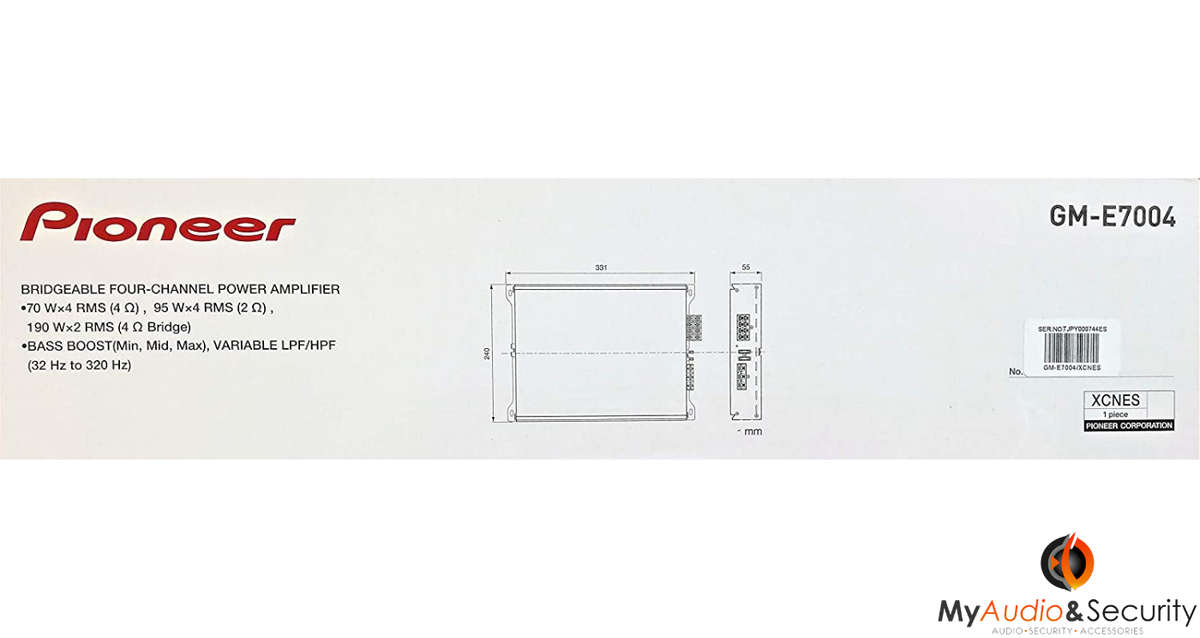

Side of Box

PRODUCT FEATURES:

PIONEER GM-E7004 4 CHANNEL 4X70W AMP

The Pioneer GM-E7004   4/3/2 CH. 4 X 70W RMS 4 Channel Bridgeable Power Amplifier with Bass Boost

FEATURES:

• Bridgeable four-channel power amplifier
• 70W x 4 RMS ( 4 ), 95W x 4 RMS ( 2 ), 190W x 2 RMS ( 4 Bridge )
• Bass Boost (Min, Mid, Max), Variable LPF/HPF (32Hz to 320Hz)

OTHER FEATURES:

Bass Boost

Give more juice to your sound.

Two-step Bass Boost allows precise control for optimal bass, giving you enhanced sound impact based on your music choice and style.

RCA Level Input

Use your RCA interconnect cables for hassle-free linking of the amplifier to the source unit.

Speaker Level Input

Allows you to connect the amplifier to your source without RCA-type inputs and without the need for adapters.

Variable LPF

Allows adjustment of the Low-Pass Filter according to your listening preference.

Variable HPF

Adjust your High-Pass Filter frequency for greater audio flexibility.

SPECIFICATIONS:

GENERAL

Amplifier Class:     Class AB

No. of Channels:     4/3/2

RMS power output:     70 W x 4 RMS (4) 95 W x 4 (2) 190W x 2 (Bridged)

Frequency Response:     15 Hz to 22 kHz

Total Harmonic Distortion(THD):     <0.1%

S/N Ratio:     >80dB

Speaker Level Input:     Yes

Crossover Type:     Variable HPF/LPF

Crossover Frequency:     32Hz to 320 Hz

Bass Boost Frequency:     50 Hz

Baas Boost Level:     Min/Mid/Max

Dimensions:     343 mm x 55.5 mm x 240 mm
