DIGITAL AMPLIFIER
Pioneer digital receiver VSX D-510 - Black (WORKS OCCASSIONALLY, OVERHEATS AND THERE ARE NO SPARES ARE AVAILABLE FOR THIS UNIT)
DVD PLAYER
Pioneer single disc player DV-344 - Black

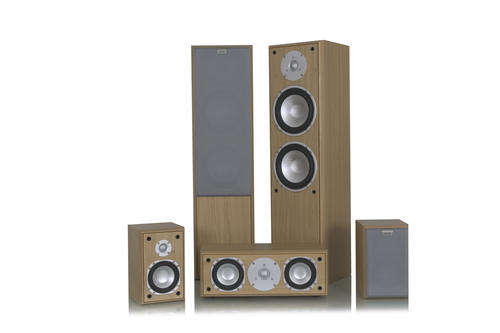

SPEAKER DETAILS
Features
• Complete loudspeaker surround system
• 3 way floorstanding bass reflex speakers
• Magnetically shielded centre speaker
• Compact rear speaker
• Binding posts
Centre speaker
System: 2 way
Long term Max power: 70 watts
Short term Max power :120 watts
Frequency range +/- 4 dB: 80-20,000Hz
Sensitivity (2,83V / 1M): 88dB
Impedance: 4-8 Ohm
Tweeter: 25mm, shielded soft dome
Woofer: 2 x 100mm, shielded
Dimensions (HxWxD): 145x400x182mm
Terminal type: Clip
Accessories: Rubber feet
Rear Speakers
System: 2 way
Long term Max power: 40 watts
Short term Max power: 60 watts
Frequency range +/- 4 dB: 70-20,000Hz
Sensitivity (2,83V / 1M): 88dB
Impedance: 4-8 Ohm
Tweeter: 19mm soft dome neodynium
Woofer: 100mm
Dimensions (HxWxD): 228x144x182mm
Terminal type: Clip
Accessories: Wall bracket (integrated)
Front
System: 3 way bass reflex
Long term Max power: 100 watts
Short term Max power: 200 watts
Recommended power amplifier: Av-amps. Up to 130 watts RMS pr. channel
Frequency range +/- 4 dB: 45-20,000Hz
Sensitivity (2,83V / 1M): 90dB
Impedance: 4-8 Ohm
Tweeter: 25mm soft dome
Midrange: 165mm
Woofer: 165mm
Dimensions (HxWxD): 835x220x250mm
Terminal type: Binding posts
SUBWOOFER
Features
• Active subwoofer
• Optimized for Home Theatre
• High Level In/High Level Out
• Danish design
• Available in black/beech finish
System: Bass reflex
Sinus Max power: 120 watts
Frequency range +/- 4 dB: 40-250Hz
Subwoofer: 200mm downfiring
Crossover Frequency: 50-250Hz adjustable
Phase Changer: Yes
Volume control: Yes
Subwoofer RCA line-in: Yes
Speaker input terminals: Left, Right clip
Speaker outputs: Left, Right clip
Mains voltage: 230-240V / 50-60Hz
Power consumption: 230 watts
Power consumption stby.: <1 watts
On / off automatic (stby.): Yes
Dimensions (HxWxD): 300 x 300 x 300mm
Weight: 10.0Kg
Accessories: 1 x 2m RCA
Pioneer's VSX-D510 sports an uncluttered front panel and a no-nonsense attitude — performance is the name of the game! This receiver brings your movies and music to life with 5.1-channel Dolby® Digital and DTS® decoding, and 100 watts for each of your home theater speakers. Plus, you get Dolby Pro Logic™ for multichannel surround sound from sources like VHS movies and many broadcast TV shows. Versatile back-panel jacks, myriad DSP options, and a savvy multibrand remote all add up to a great value, and great fun!
Details:
- Dolby Digital, DTS, and Pro Logic decoding
- 2 digital inputs (1 optical, 1 coaxial)
- multibrand remote
- 6 audio DSP modes (Hall 1 & 2, Jazz, Dance, Theater 1 & 2)
- 4 video modes (Musical, Action, Drama, Expanded)
- 100 watts x 2 (stereo) into 8 ohms (20-20,000 Hz) at 0.2% THD — or 100 x 5 in surround mode
- 2 audio, 3 A/V (including one 5.1-channel) inputs
- no phono input
- 1 set of main speaker outputs
- Midnight listening mode
- preamp-level subwoofer output
- 30 AM/FM presets
- 16-1/2"W x 6-1/4"H x 16-7/8"D
