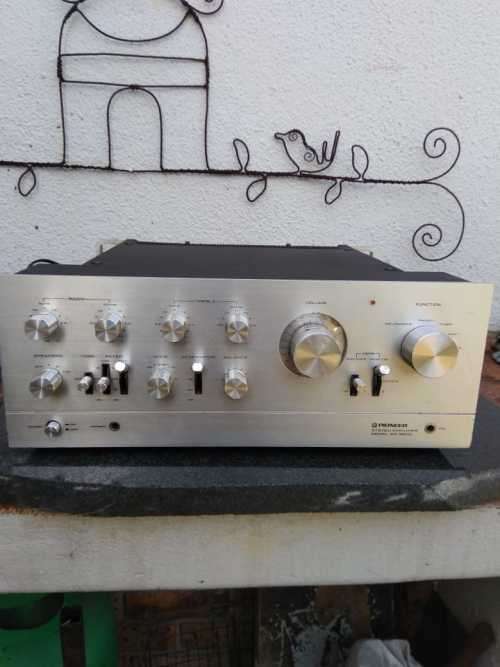

PIONEER SA-9900 AMPLIFIER

Pioneer SA-9900.

100% Working condition.

The buyer organize shipping.

The SA-9900 is a top of the line stereo integrated amplifier with state-of-the-art technology and advanced features.

Differential amplifier circuits are employed in the equaliser, tone control and power amplifier sections.

Each amplifier section is supplied by a balanced power supply system that assures excellent DC balance and stability, while nearly eliminating switching noise during control operation.

Specifications

Power output: 110 watts per channel into 8¿ (stereo)

Frequency response: 7Hz to 40kHz

Total harmonic distortion: 0.05%

Damping factor: 30

Input sensitivity: 6mV (mic), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 65dB (mic), 70dB (MM), 95dB (line)

Output: 150mV (line), 2V (Pre out)

Speaker load impedance: 4¿ to 16¿

Semiconductors: 10 x FET, 74 x transistors, 33 x diodes

Dimensions: 420 x 165 x 403mm

Weight: 20kg

Accessories: hex wrench

Year: 1976
