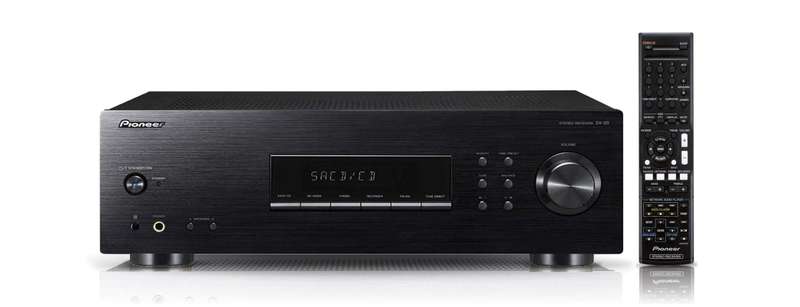

With an immense power output of 100 W per channel, the SX-20-K stereo receiver is built to provide massive sound.
You can hook the stereo receiver to a Super Audio player, a network audio player, a recorder, and even to a turntable via thePhono MM terminal.
Completely power-driven, the SX-20-K includes large A/B speaker terminals to support two pairs of speakers. Each pair can be set up separately (A / B) or simultaneously (A + B). Bi-wiring is also supported for the optimum clarity in sound quality.
Specifications
Main Features | |
Output Power per Channel | 100 W + 100 W |
Impedance at Output Level 4-16 (A / B) | 8-16 (A + B) 4-16 (Bi-Wire) |
Number of Channels | 2 |
Input Connections | SACD/CD Network Recorder PHONO (MM) |
Output Connections | Recorder |
On-Screen Display (GUI) | FL Display |
Input & Output connections | |
Headphone | Yes |
Large speaker terminals | Yes |
Phono Input | Yes |
Pre-amp Output | Yes (2.1 ch) |
Speaker A/B | Yes |
Audio Features | |
AM/FM Tuner with RDS | Yes |
Tuner Pre-set Stations | 30 pre-sets |
Power Output | |
Power output per channel | 100 W + 100 W |
Condition | 20 Hz-20 kHz, THD 1 %, 8 |
Rated Power Output | THD: 0.02 %, -3 dB, 8 , 1 kHz |
Frequency Response: LINE | Phono: 20 Hz-20 kHz, 0.5 dB (RIAA Eqalisation) MM, Line (SACD/CD, Network, Recorder): 5 Hz-100 kHz, 0 dB/-3 dB |
Signal-to-Noise Ratio: LINE (DIN) | Line (SACD/CD, Network, Recorder): 100 dB Phono (MM): 80 dB dB |
Power Requirements | 220-230 V, 50/60 Hz |
Power Consumption (in use / standby) | 210 W / 0.3 W |
Auto Power Down |
Yes |
Construction | |
Design | Aluminium Front Panel |
Amplifier Specifications | |
Dimensions (W x H x D) | 435 x 142.5 x 364 mm |
Weight | 8.3 kg |
