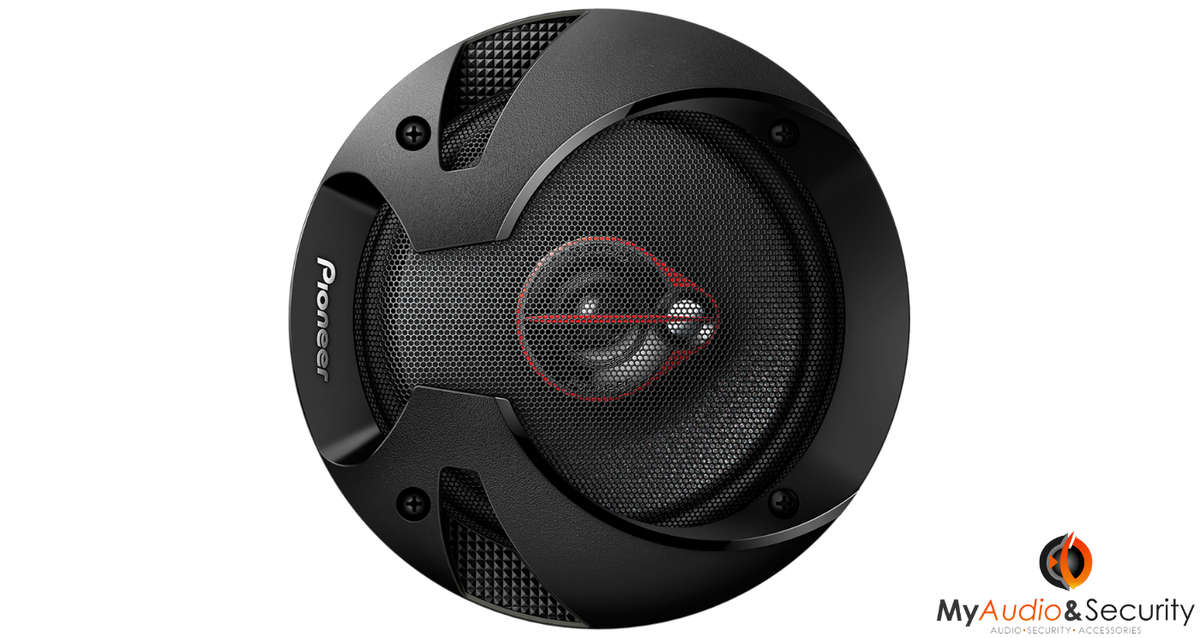

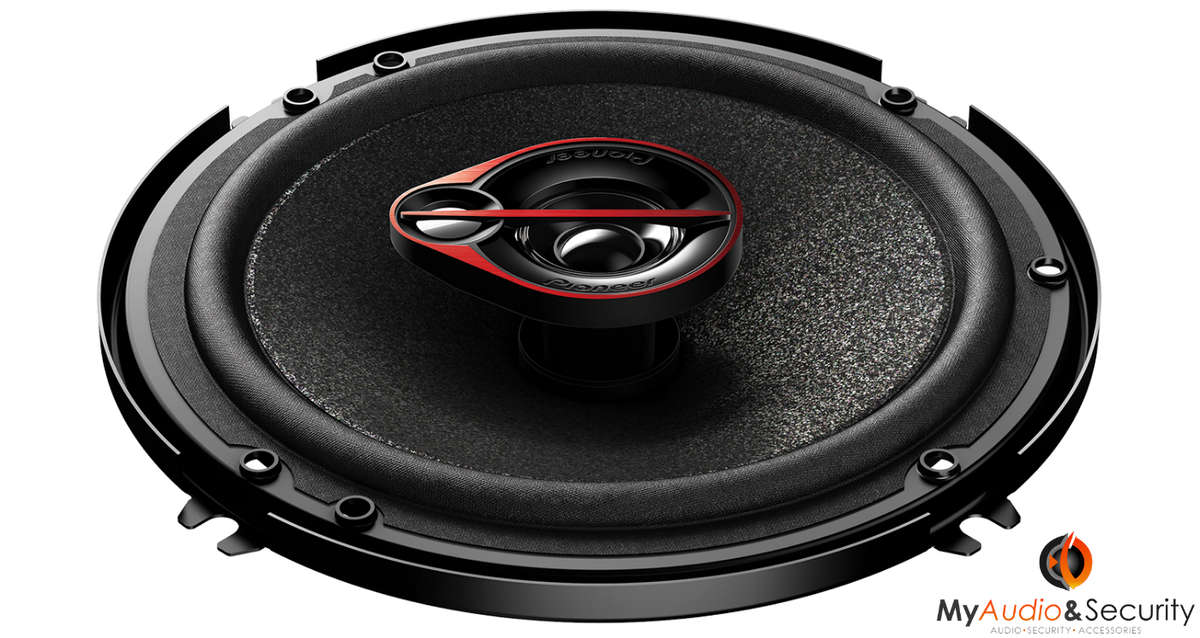

PIONEER TS-R1651S 16CM 300W 3-WAY SPEAKERS.
[caption id="attachment_11512" align="aligncenter" width="1400"]

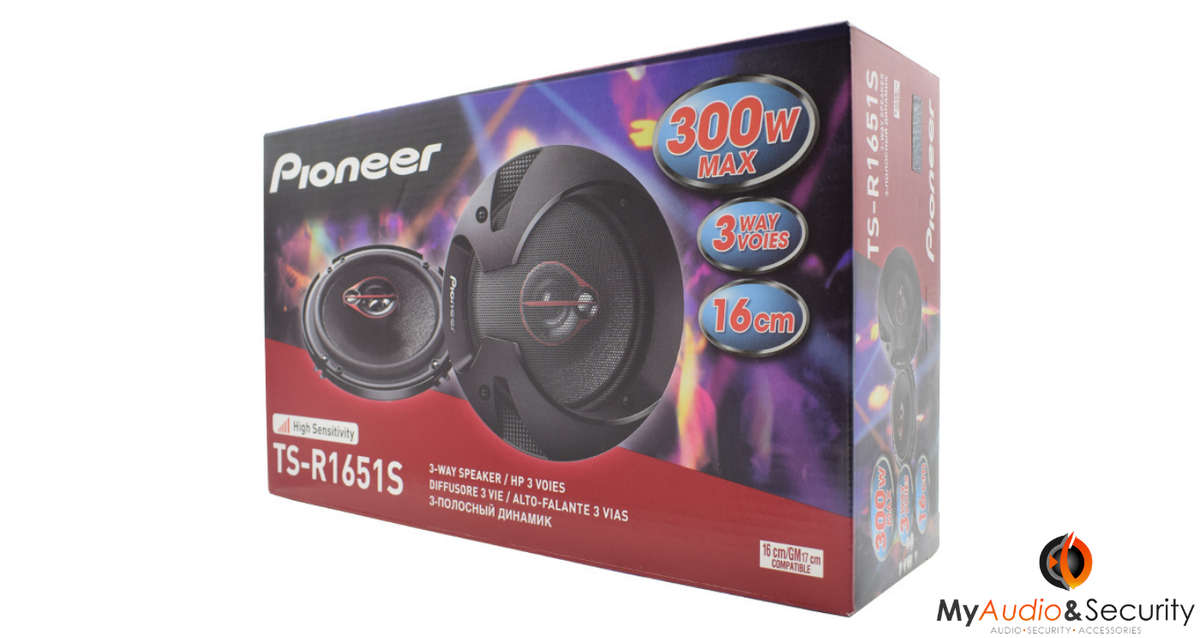

4-1114 ( BOX )[/caption]
PRODUCT FEATURES:
PIONEER TS-R1651S 16CM 300W 3-WAY SPEAKERS
The Pioneer R-Series TS-R1651S 16cm / 6.5" 300W 3-Way Speakers This 16cm car speakers produce high energy sounds from a shallow design.
16 cm is the default size of most inbuilt speakers in a car. Pioneer have used a shallow basket with flexible installation options to fit these speakers in most cars. Also features a young aggressive design, the trademark of R-series, a MMM cone and aluminum bobbin for high performance.
Features of TS-R1651S
Mica reinforced pulp cone
The mica is mixed into the pulp cone material in precise proportions to optimise cone rigidity and to reproduce impactful bass.
Impactful Bass
Its unique design with long stroke space, powerful motor and long stroke suspension helps it in providing powerful bass and strong sound.
P.F.S.S. spider
Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction.
Its soft part makes movement smooth and reproduces clear sound and at excessive input, it's hard part controls excessive vibration and prevents movement error.
Flexible Installation
With a redesigned basket, you can now install these speakers in more cars with minimum effort.
Especially in cars by Honda with provision for 3 spoke basket. Further, four new screw holes ensure a perfect fit.
Other features of TS-R1651S
3-way
3-way speakers feature 3 different drivers for effectively recreating separate sound frequency.
Shallow basket
Lightweight design with lesser mounting depth for easy installation in your car
Aluminum bobbin
High quality aluminium voice coil bobbin is used to safeguard from heat and prolong speaker life
Full covered grille
This prevents a physical damage and deliver a reliability and high endurance
SPECIFICATIONS:
GENERAL INFORMATION:
System:
Coax. 3-Way FREQUENCY RANGE:
30 Hz 18 KHz (-20dB) Nominal Wattage:
40W Impedance:
4 Ohms Sound Pressure Level:
90 dB ( 1.5dB) Max Wattage:
300W SIZE:
6-1/2" (160mm), cone WOOFER:
CONE MATERIAL:
Mica reinforced pulp cone Surround Material:
Rubber coated cloth surround Colour:
Black MID RANGE:
Type:
Piezoelectric Colour:
Black DIAPHRAGM MATERIAL:
PET TWEETER:128 mm
Type:
Piezoelectric Colour:
Silver DIAPHRAGM MATERIAL:
PET INSTALL INFORMATION:
Dimensions (Dia x Depth) w/o Grille:
158 x 61 (mm) Dimensions (Dia x Depth) with Grille:
171 x 73 (mm) Weight:
0.60Kg Cutout hole:
128 mm Mounting Depth:
42 mm *Be sure to follow us on Facebook or Instagram so you don't miss out on our latest products, new stock and much more: My Audio and Security Facebook / My Audio and Security Instagram .*
