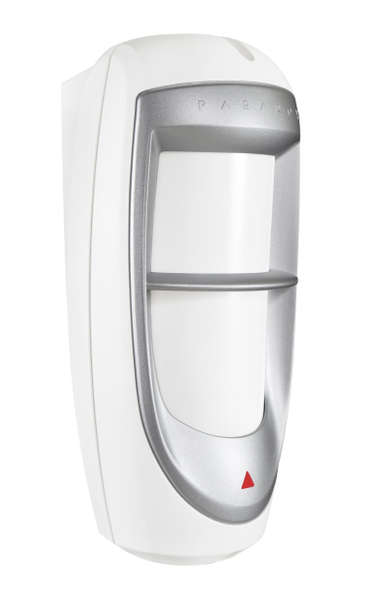

| PDX-DG85 | |
| Sensor type | Dual Element Infrared X 2 |
| RFI / EMI rejection | 10V/m up to 2000 MHz |
| Optical geometry | Double opposed dual rectangular |
| Voltage input | 9 to 16Vdc |
| Current consumption | 30mA Standby; 40mA Alarm |
| Anti-tamper switch | 150mA/28Vdc, N.C |
| Lens | 2nd generation Fresnel lens, LODIFF®, segments |
| Alarm output | Form A relay 100mA/28Vdc, N.C. |
| Detection speed | 0.2m/s to 3.5m/s (0.6ft/s to 11.5ft/s) Ingress |
| Operating temperature | -35°C to +50°C (-31°F to +122°F) |
| Standards | EN 50131-2-2 Grade 2 Class IV |
