PIR Detector
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Description:

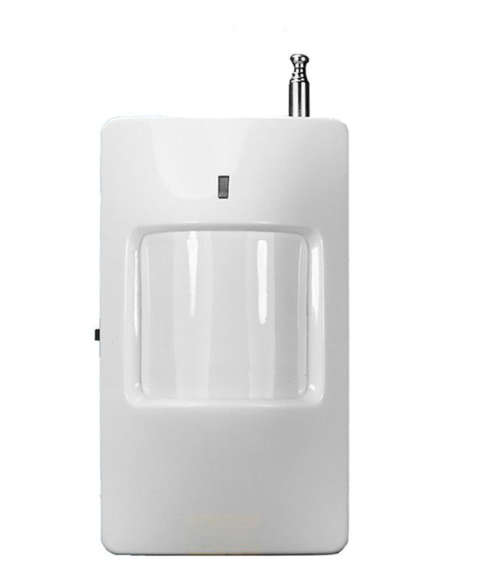

- 315MHZ Wireless PIR Motion Detector for Home Alarm Home Security
- MCU processing adopted
- Wireless transmitting digital signal
- Anti- burnt cover
- Auto temperature compensation
- Automatically identify valve control
- LED on/off optional
- SMT design, high RFI/EMI Immunity
- Alarm delay time optional
- Triple pulse optional
- Sending a warning singal to host if it detect any movement
Specifications:
- Power: AA alkalescence battery
- Standby current: less than 12uA
- Alarm current: less than 15mA
- Operating temp: - 10 to +50 degrees
- Installation mode: wall mounted

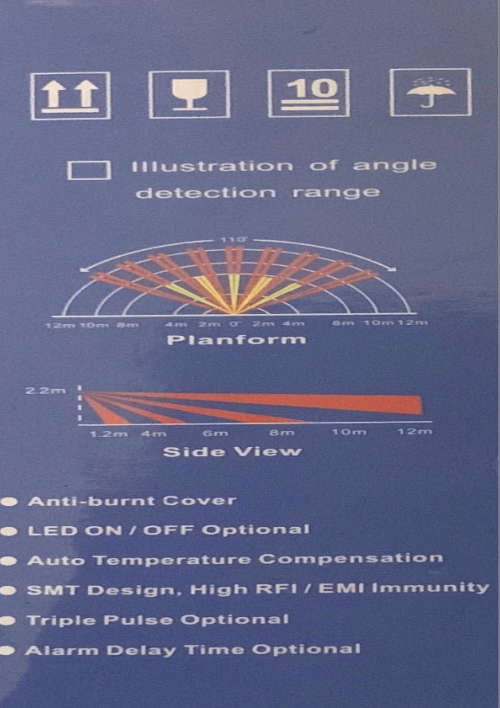

- Detecting distance: 12m
- Detecting angle: 110 degrees
- Operating Frequency: 315MHz
- Sending distance: more than 100m
Package included:
- 1 x Wireless PIR Motion Detector
- 1 x Wall Mount Kit
What's in the box
1x PIR motion sensor
