Product details
Description:
100% brand new and high quality
Easy to install.
Automatic, convenient, safe and practical.
The motion sensor can identify day and night automatically.
It has wide detection range made up of up and down, left and right service field.
This product is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit and SMT.
It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once.
Specifications:
Color : Grey
Voltage: DC90V~250V
Material: ABS
Working Rotation: 180°
IP Rating: Indoor application IP44

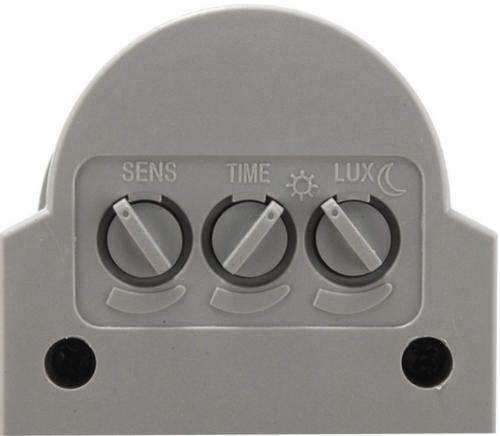

LUX Setting: 2-2000lux svr adjustable
Size: 60*47*156mm (approx.)
Induction lighting time: 5s~6min adjustable time

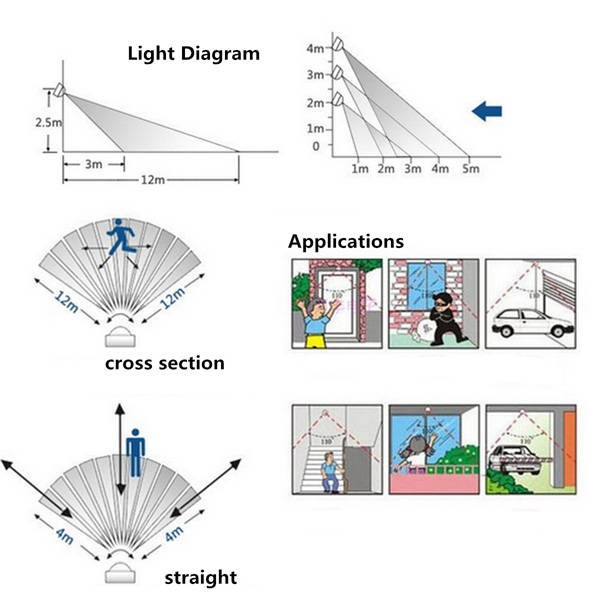

Detection distance: Approx 12M, installation 1.5-2.5M High

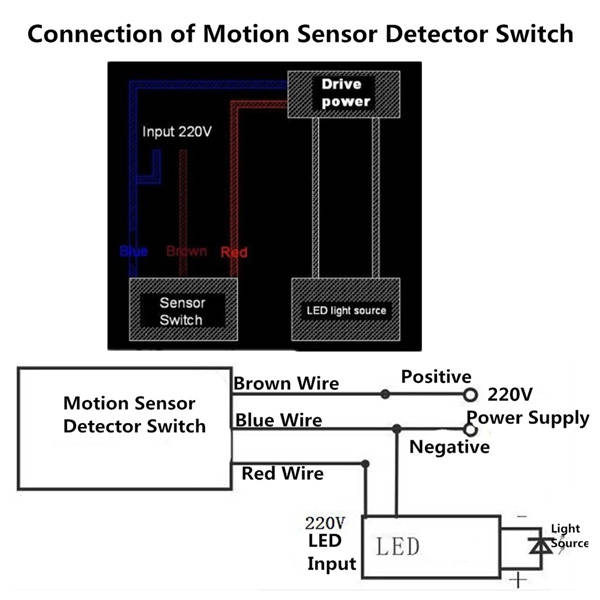

Connection:
Blue color: Zero line (Neutral)
Brown color: Live wire
Red: Ground wire
Package Includes:
1pc Infrared sensor switch (Only Grey)
