This Wireless 433Mhz PIR Infrared Motion Sensor Indoor is for expansion to our range Smart WiFi Security Alarm Systems that support the connection of 433Mhz devices. This is the identical PIR that comes standard within our Smart Alarm Kits.
Home Automation made Smart, Simple and Affordable via the Tuya, Smart Life App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
This Wireless PIR Detector uses advanced signal processing technology. When an intruder comes into the detection zone, the detector will automatically detect the intruder's motion and emit wireless signal to the alarm Host (Alarm starter kit). This product is widely used in homes, factory's, warehouses and offices. it easily adapts to environment changes, the detector also has energy saving, reliability and easily installation, this device is built be connected to your smart security Alarm starter kit
To purchase our 'Smart Home, Security Alarm System' - this device adds to the system [click here]
Product features
- The PIR (passive-infrared) detects any movement within the detection zone.
- Anti-theft
- Adjustable detecting distance
- Low battery indication
- Digital dual-core fuzzy logic infrared control chip and intelligent analysis which effectively and reduce false alarm rate
- Communication range of up to 100m
- Detection range of the infrared sensor of up to 12m.
- In or Outdoor use
- Smart Home Sensor
Specifications:
| Power Supply | Battery |
| Battery Type | 3x AA Battery DC4.5V (*lifespan +2years) |
| Wireless frequency | 433MHz |
| Wireless transmission range | 100-150 meters (Open area) |
| Coding chip and Resistance | EV 1527 / 330K |
| Detecting distance | 12m |
| Detecting angle | 110° |
| Alarm indicator | Blue / Red LED |
| Low battery indicator | Yellow LED |
| Power switch | ON/OFF |
| Antenna type | Telescopic antenna |
| Static current | 25A |
| Alarm current | 15mA |
| Operation Temp. | 10°C to +50°C |
| Humidity | 5%--95% non-condensing |

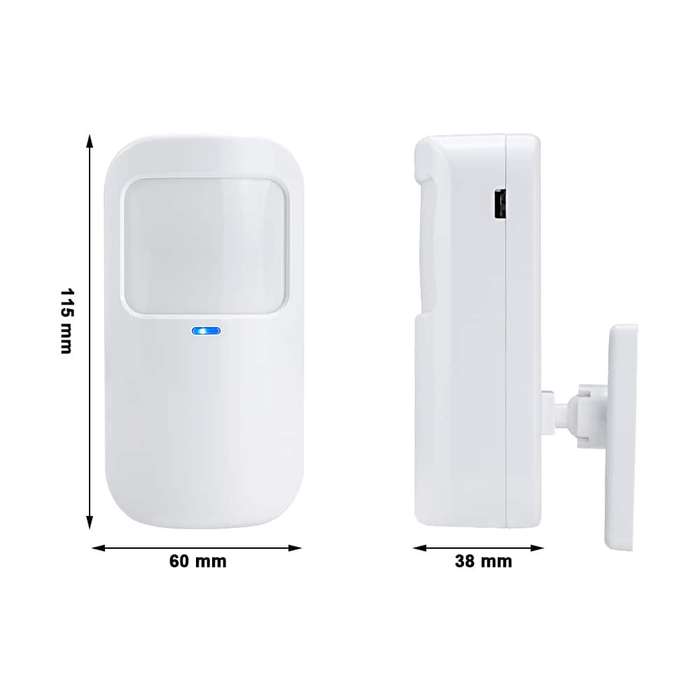

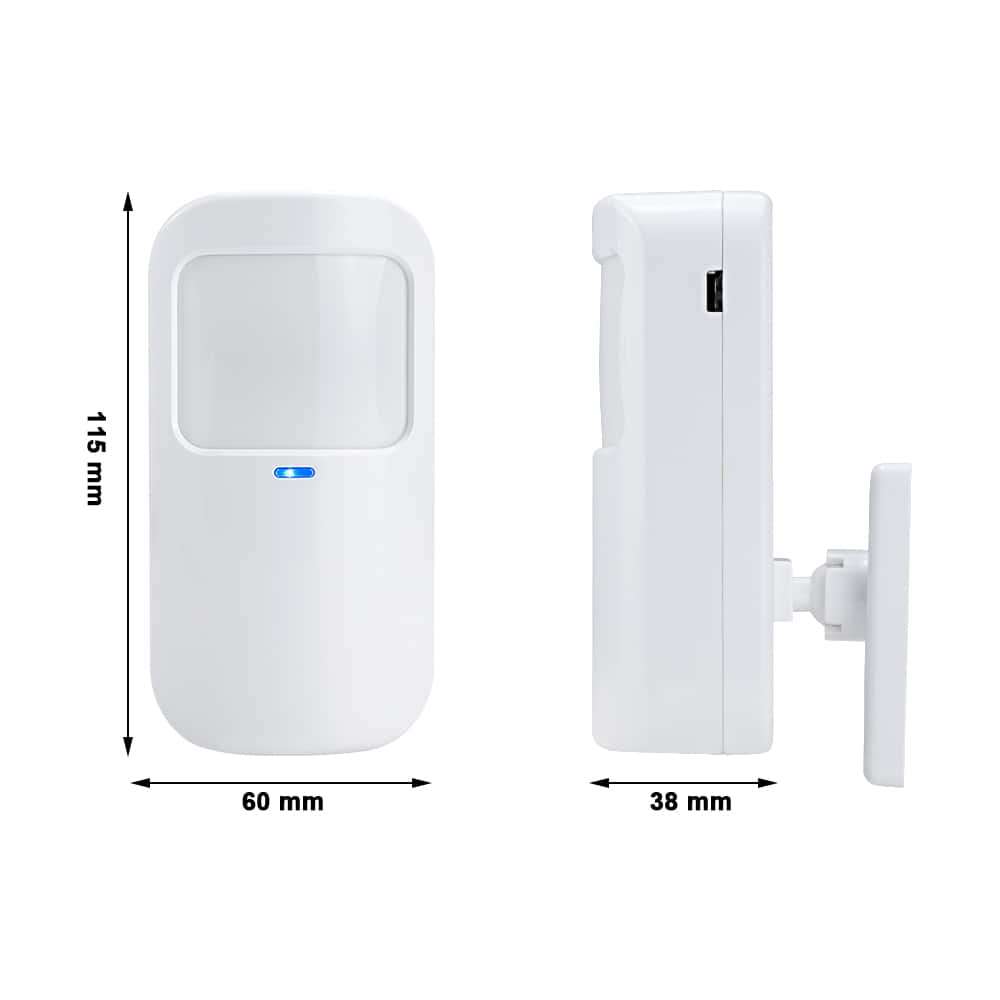

| Dimension | 53x38x108mm |
| Weight | 150g |
What's in the box?
1 x Wireless Indoor 433Mhz PIR Detector
1 x Mounting Stand
1 x User Manual
2 x Screws
2 x Nuts
