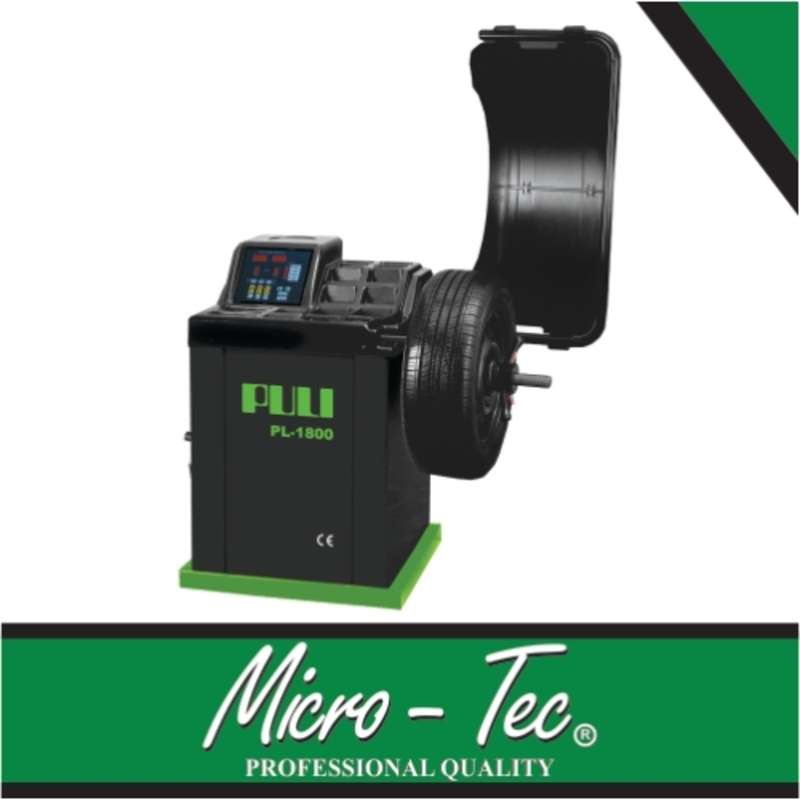

PL-1800 WHEEL BALANCER - MICRO-TEC

Wheel Balancer / Passenger Cars 10-24
High precision main shaft with strict heat treatment process makes sure
repeated measuring accuracy.
High stable and high accurate computer chip. With self-calibration and
self-diagnosis fuctions.
Deluxe design. Bigger machine cabinet with thicker material. Bigger and higher
steel bottom stand can protect inside chips from moisture and coldness so as to
make machine running stable.
LED light & Digital display.
With 5 balancing modes and OPT function. Extended measuring scale can
measure rims from10 to 24.
With standard automatic braking system, make operation much easier.
With optional brake pedal for accurate positioning of counter weights.
With optional larger cone and spacing ring, machine can balance rim with big
central bore such as that of Toyota coaster, Transit, Iveco etc.
With optional universal flange adaptor, machine can balance, French cars'
tyres such as that of Citroen.
High accuracy for the balancer, guarantee high quality service.
Easy and safety operation.
Max. wheel weight: 65kg (143 lbs)
Optional Power supply: 220v (1/3ph)
Motor power: 0.20 / 0.37kw
Balancing speed: 200 r.p.m
Balancing accuracy: ±1g (±0.04 oz)
Rim diameter: 252 610mm (10-24)
Rim width: 40 510mm (1.5-20)
Measuring time: 8s
Noise level: <70dB
Package size: 960 x 760 x 1160mm
Nett weight / Gross weight: 98 / 122 kg
