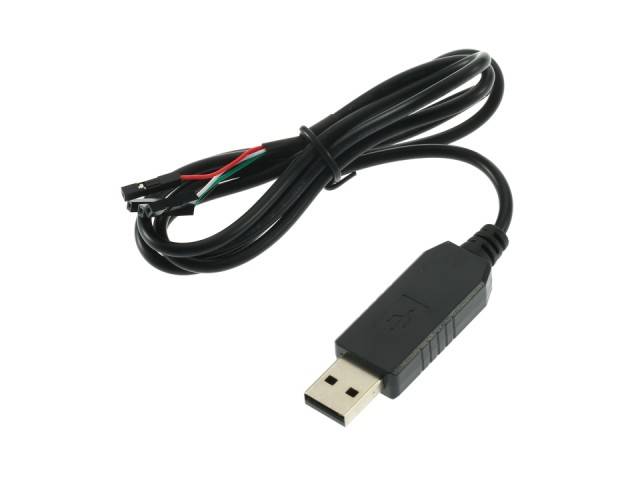

PL2303 Serial Converter (Prolific)

The PL2303 serial converter allows any PC to connect to serial devices and programs that communicate through COM ports. Utilizes the PL-2303HX Rev D Chipset for high performance and compatibility across Windows, Mac, Linux, and other platforms.

Features:

• Plug and play creation of a COM port. Powered by USB – no external power needed
• Programmable baud rate from 75bps to 12Mbps. 256 byte inbound and outbound buffers. Typical speeds up to 230 Kbps.
• Full duplex transmitter and receiver. Modem RTS, CTS, DTR, DSR, DCD, and RI signals
• Standard USB type A male and TTL 4 pin connector
• Simple and Easy way to give USB support to your designs
• Available for Linux, Mac, WinCE and Windows (XP, 2003), Vista Win 7

Black cable   --   GND
Green cable   --   TXD
White cable   --   RXD
Red cable   --   VCC
