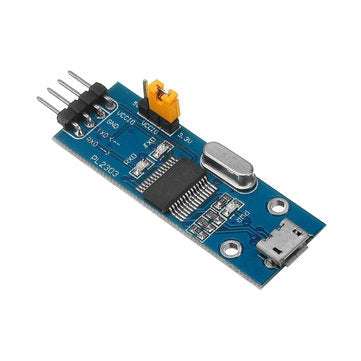

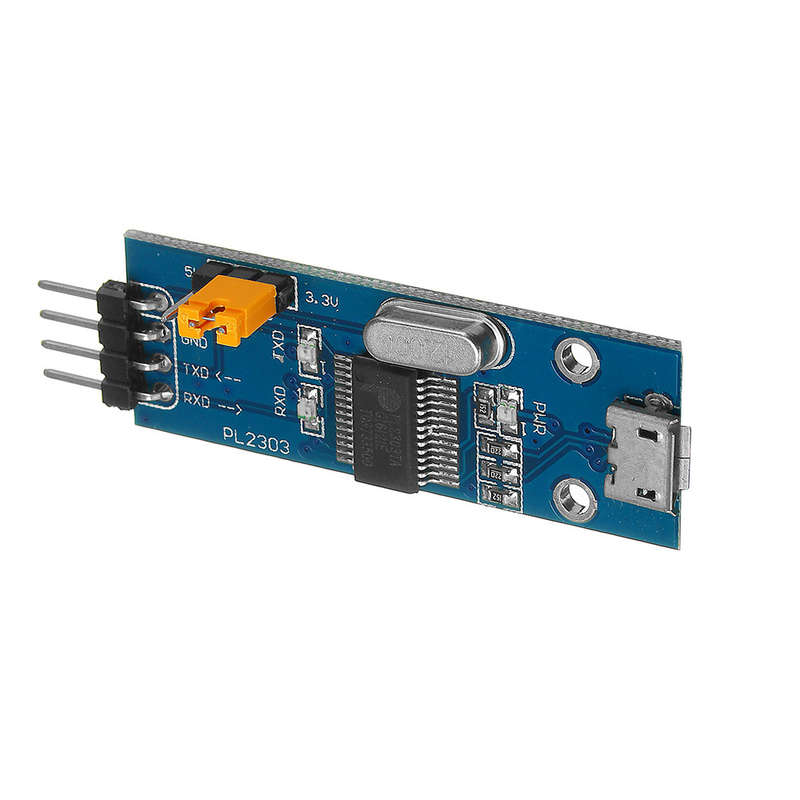

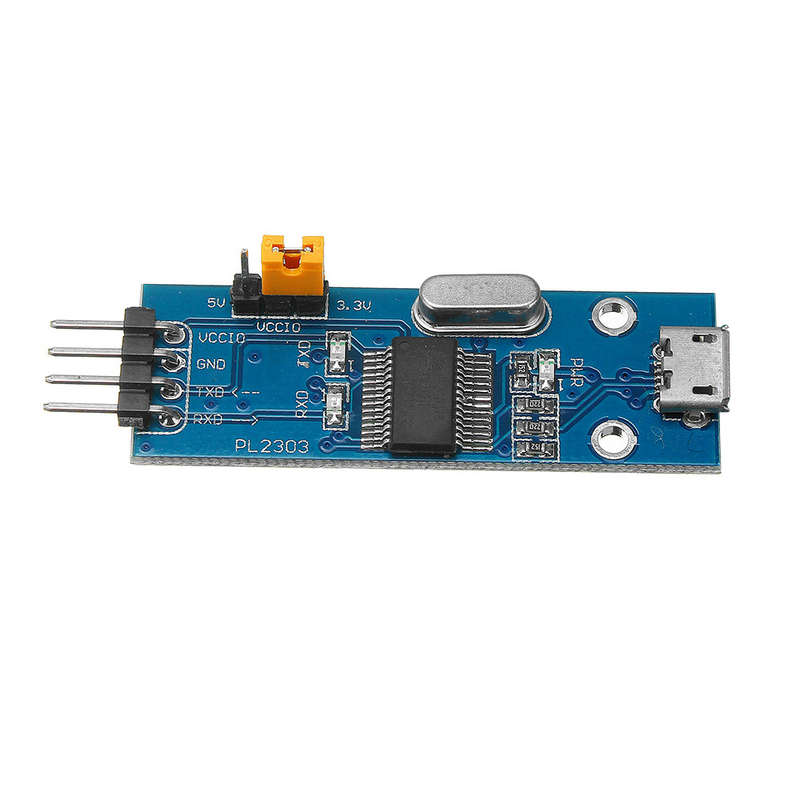

PL2303 USB To UART TTL Converter Mini Board LED TXD RXD PWR 3.3V/5V Output Serial Module

20 available / new
R397.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641131245

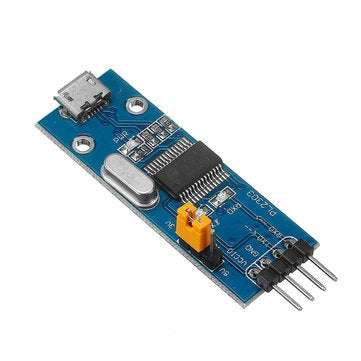

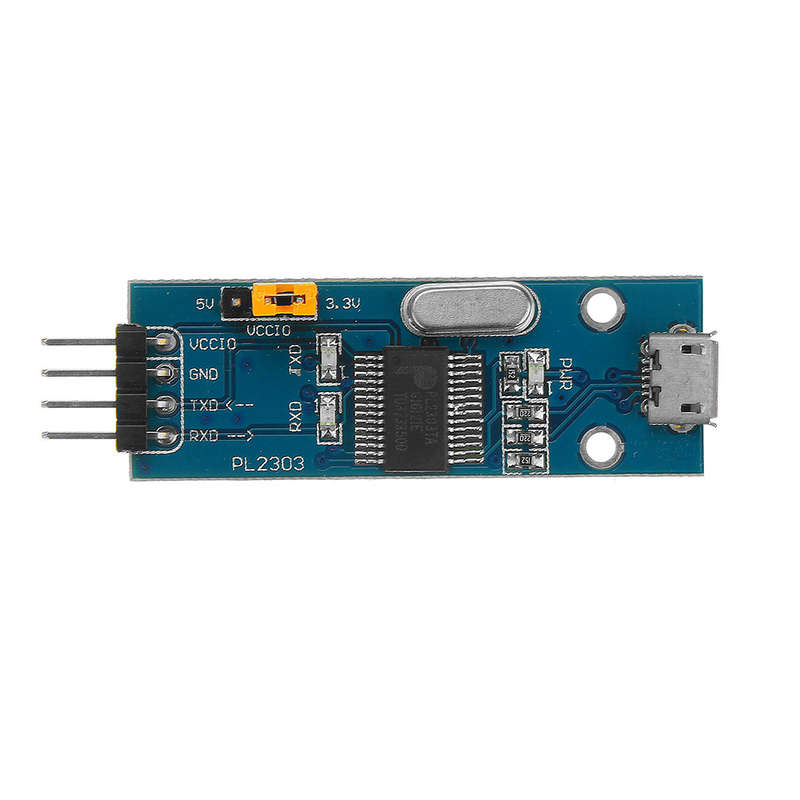

Specifications:

1.Model:PL2303
2.Name:USB-to-UART serial convert board
3.Using PL2303TA (compatible PL2303HXA)
4.Support windows XP / 7/8 / 8.1 / 10 / ...
5.Supports 3 power modes: 5V External power supply; 3.3V External power supply; externally powered (requires 3.3V-5V)
6.Three LED: TXD LED, RXD LED, POWER LED

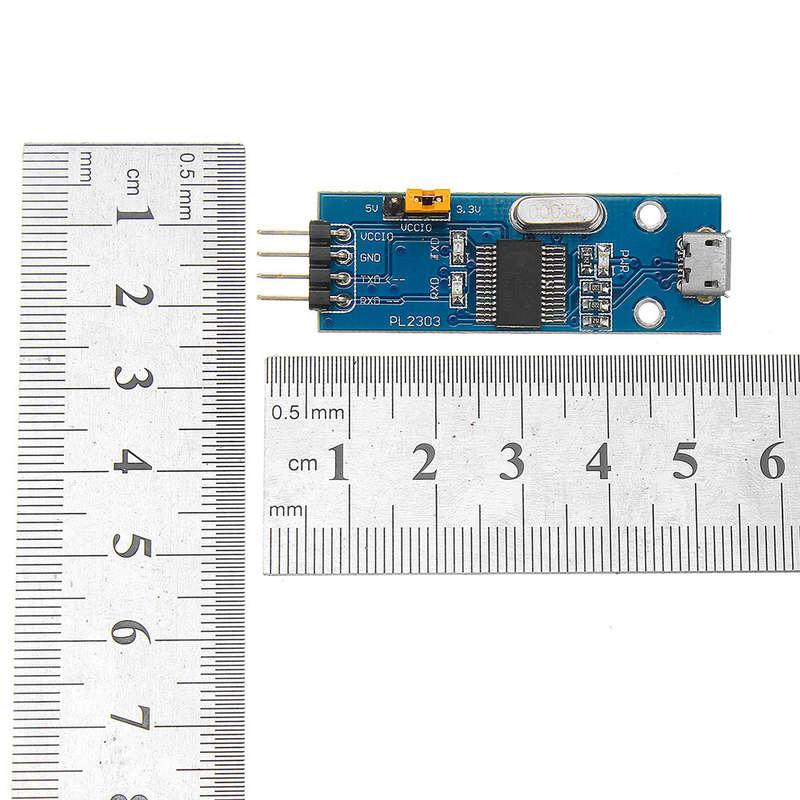

7.Size:50*17mm

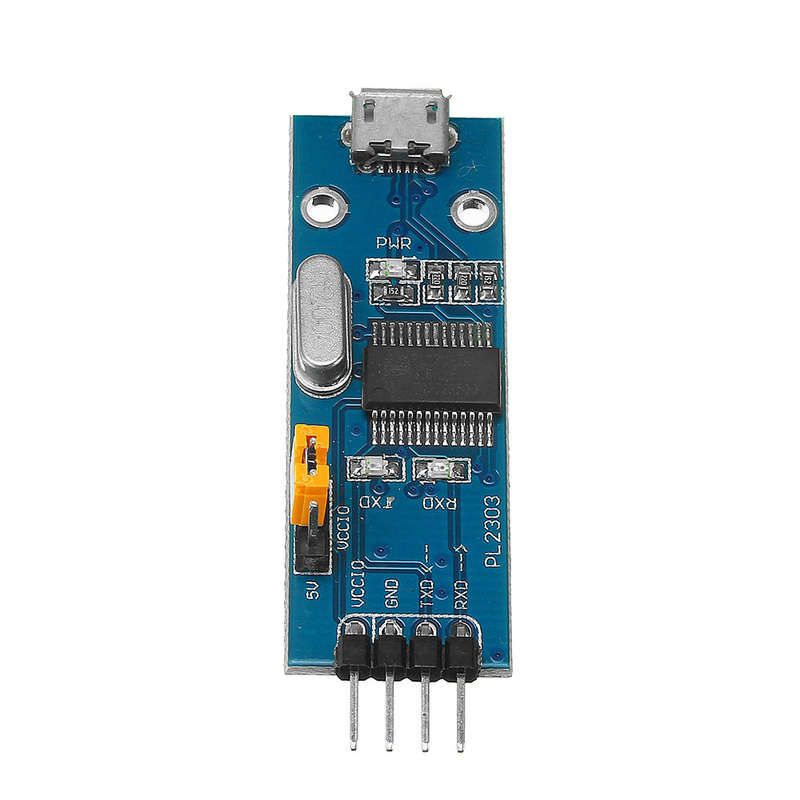

Instructions:( to access the MCU as an example)

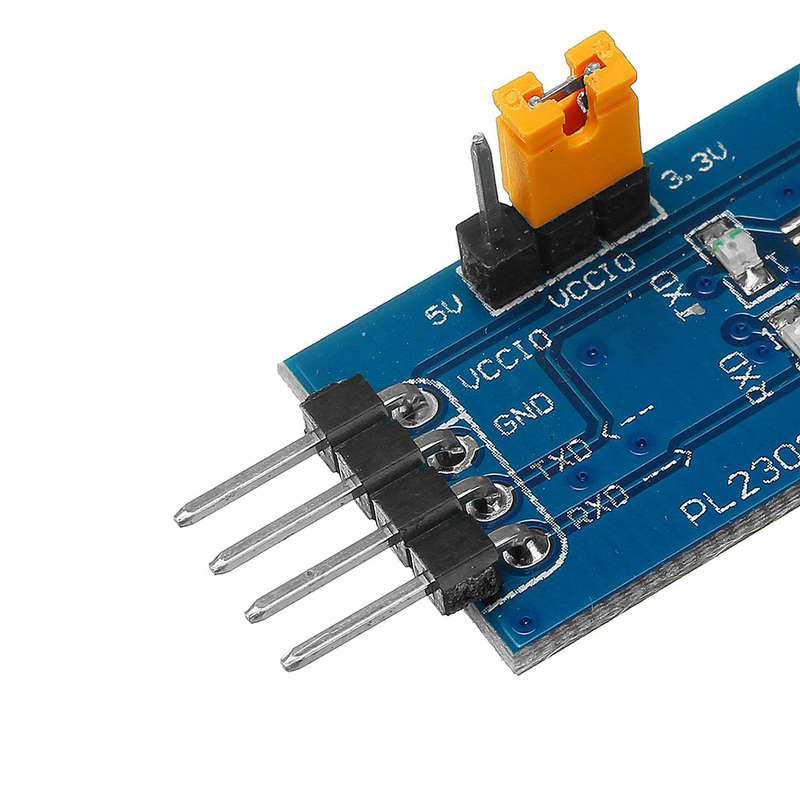

VCCIO: Output 3.3V or 5V (powered by USB module skip, shall jumper 3.3V or 5V)
GND: connect to GND connection
TXD: connect to MCU.RX (Signal Flow: MCU.RX << PL2303 << PC.TX)
RXD: connect to MCU.TX (Signal Flow: MCU.TX >> PL2303 >> PC.RX)

Note: This is USB to TTL level module. Do not directly connected to RS232 level, it would burn module.

Pacakge Included:


1 x PL2303 USB UART TTL Convert Mini Board
