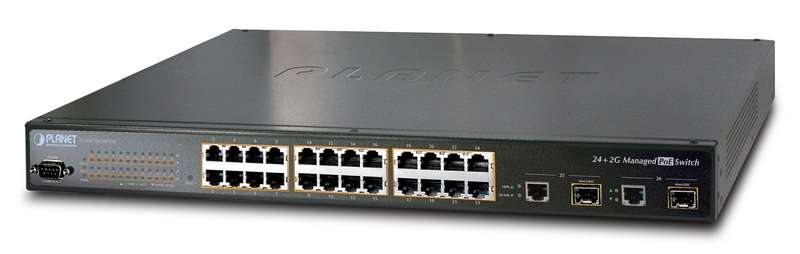

Planet Fgsw-2620Pvm 24-Port 10/100Mbps + 2 Gigabit Tp/Sfp Managed Poe Switch - Refurb

Planet FGSW-2620PVM 24-Port 10/100Mbps + 2 Gigabit TP/SFP Managed PoE Switch - This pre-owned, managed PoE switch is designed for small to medium-sized businesses that require centralized power distribution, efficient management, and robust Layer 2 features. With 24 PoE-capable 10/100Mbps ports and 2 Gigabit combo ports (RJ-45/SFP), this switch is ideal for powering IP phones, wireless access points, and IP cameras. The FGSW-2620PVM integrates advanced management features, DDoS protection, and Planet's efficient PoE power management, ensuring reliable and cost-effective operation.

Key Features & Benefits:

• Comprehensive PoE Support: Supports IEEE 802.3af PoE on all 24 Fast Ethernet ports, with up to 15.4W per port and a total PoE power budget of 190W.
• High Performance: Offers a switch throughput of 6.547 Mpps and a non-blocking switch fabric with a total switching capacity of 8.8 Gbps.
• Advanced Layer 2 Features: Equipped with VLAN, IGMP snooping, Spanning Tree, and 802.1X port authentication for optimal network segmentation and security.
• Efficient Power Management: Planet's Green Ethernet Technology minimizes power usage by detecting link status and efficiently distributing power.
• Robust Security: Includes Access Control List (ACL), RADIUS authentication, and DDoS protection to safeguard network resources.

Ideal Uses:

• Business Networking: Ideal for small to medium-sized offices that require reliable PoE functionality and robust network management.
• IP Surveillance: Perfect for powering IP cameras and other PoE-enabled devices, eliminating the need for dedicated power sources.
• VoIP Applications: Ensures high-quality voice traffic with QoS prioritization, suitable for VoIP phone networks.
• Energy-Conscious Environments: An eco-friendly solution with efficient power usage to minimize operational costs.

Technical Specifications:

• Ethernet Ports: 24 x 10/100Mbps RJ-45, 2 x 10/100/1000Mbps RJ-45, and 2 x SFP (shared with ports 25-26)
• PoE Standard: IEEE 802.3af, providing up to 15.4W per port with a total budget of 190W
• Switch Architecture: Store-and-forward
• Switch Throughput: 6.547 Mpps
• Switching Capacity: 8.8 Gbps
• MAC Address Table: 8K entries
• Power Consumption: Max 400W
• PoE Power Supply Type: End-Span with Power Pin Assignments 1/2(+), 3/6(-)
• Management Interface: Web-based GUI, SNMP, Telnet, and SSL for secure remote management
• VLAN Support: 802.1Q VLAN with up to 256 static VLAN groups
• QoS: 4 queues per port, supporting 802.1p and DSCP prioritization
• Dimensions: 440mm x 265mm x 44mm (1U height)
• Weight: 3.6 kg
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Condition: Pre-owned device with minor scratches and scuffs. Device has undergone extensive testing and is 100% functional.
• Warranty: 3-Month Carry-In Warranty
• What's in the Box: Switch + Power Cable
