Nortel Switch Baystack 5510-48T 48-Port Network Switch E-E011-03-5279(A)
The item has been tested and works well as specified below
Specification

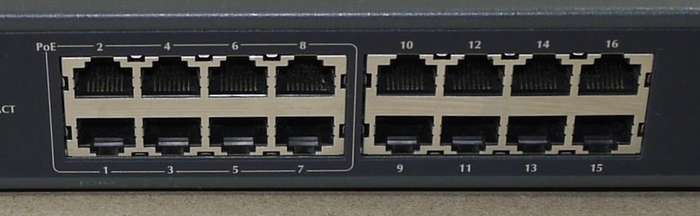

Ports: 16 x 10/100BASE-TX Ethernet ports (RJ-45, auto-sensing, auto-negotiating) with Power over Ethernet (PoE) support.
Speed: 10/100 Mbps (half/full-duplex) for Ethernet connections.
PoE Standard: IEEE 802.3af Power over Ethernet, up to 15.4W per port for PoE-compliant devices.
PoE Power Budget: Maximum 110W total for all PoE ports.
Switching Capacity: 3.2 Gbps (non-blocking).
Forwarding Rate: Up to 2.38 Mpps (million packets per second).
Network Management: Web-based GUI (Java-based), PLANET Smart Discovery Utility, limited CLI via Telnet or serial console.
Layer 2 Features: Supports 802.1Q VLANs (port-based and tag-based), port mirroring (RX, TX, or both), bandwidth control (ingress/egress), LACP, QoS with traffic prioritisation.
Security Features: MAC-based port security, 802.1X authentication, IP-based access control for management.
MAC Address Table: 8K entries.
Standards Compliance: IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3af (Power over Ethernet, PoE), IEEE 802.3x (Flow Control), IEEE 802.1Q (Virtual Local Area Networks, VLANs).
Form Factor: 1U rack-mountable (19-inch standard rack).
Dimensions: 440 x 200 x 44 mm (W x D x H).
Weight: Approximately 2.5 kg.
Power Supply: Internal AC power supply, 100240V AC, 50/60 Hz, 1A.
Power Consumption: Maximum 130W (full PoE load).
Cooling: Fanless design for silent operation.
LED Indicators: Power, Link/Activity, PoE status per port.
Operating Environment: Temperature: 0°C to 50°C (operating), -20°C to 70°C (storage); Humidity: 5% to 90% (non-condensing)
Advanced Specs: https://ftp.asm.cz/Planet/FGSW-1828PS/Manual/EM_FN1608v2_FG1828_v1.0.pdf
What's in the box: 1 x Switch, 1 x Cable
NOTE:
-
If you like our product, don't forget to review it,😃👍
-
If you have an issue, please reach out to us before sending a negative review. We will do our best to make things right with you!
DISCLAIMER:
-
This is a used or refurbished item and has been previously used.
-
The lifespan of second-hand items is not something we can guarantee and varies based on factors like previous usage and specific conditions.
We strive to accurately represent the condition of our products in descriptions and pictures.
PLEASE SEND US ANY RELATED INQUIRIES VIA CHAT
