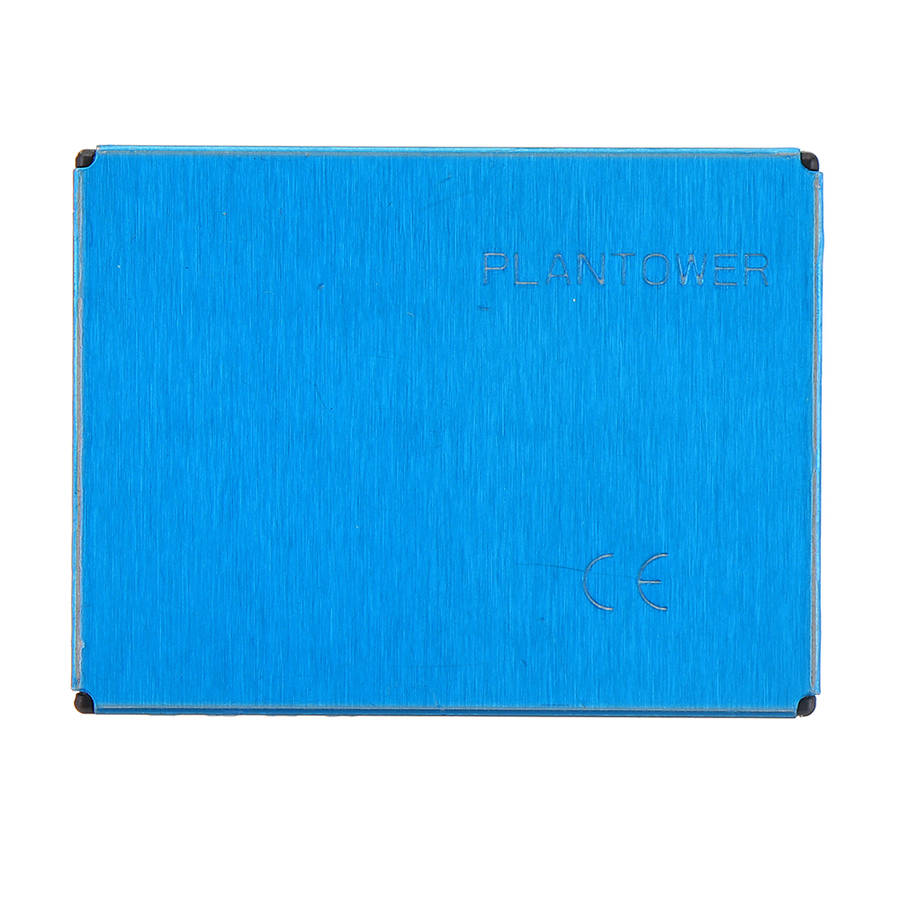

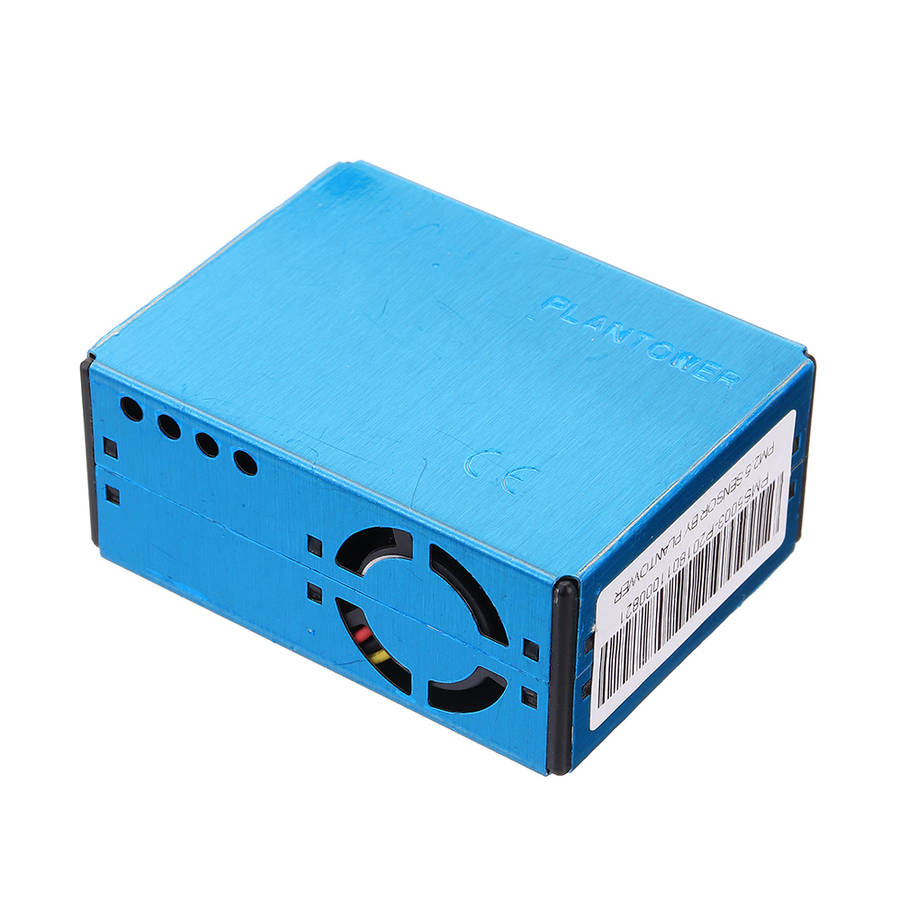

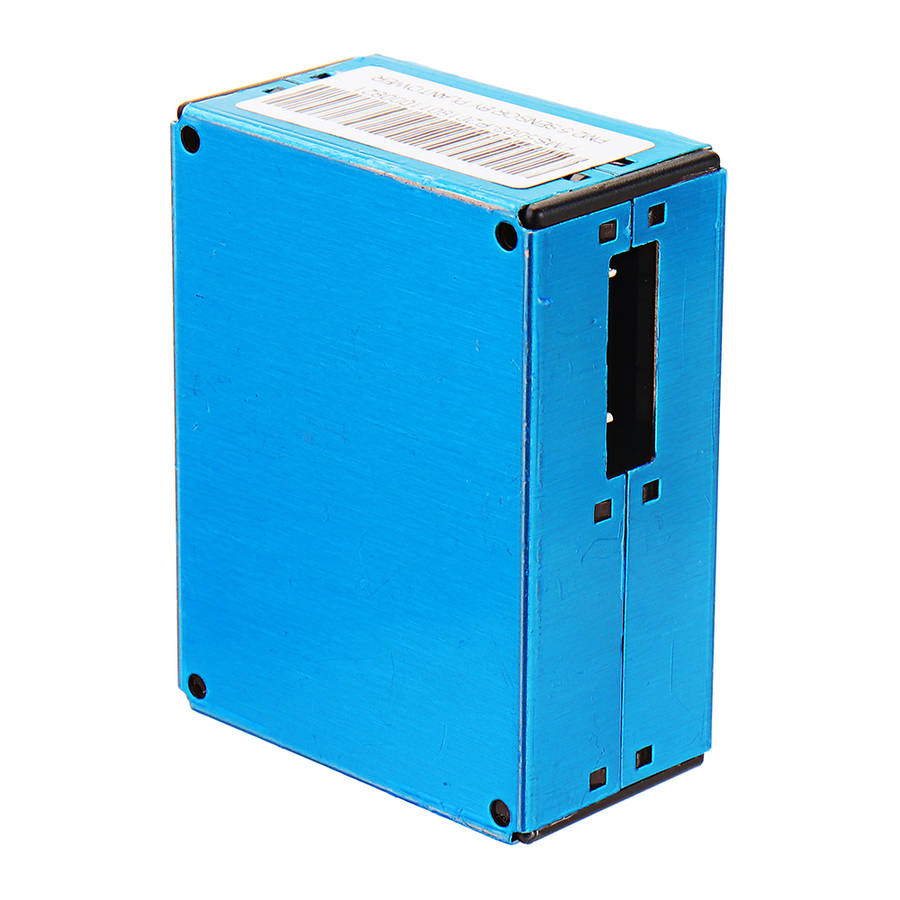

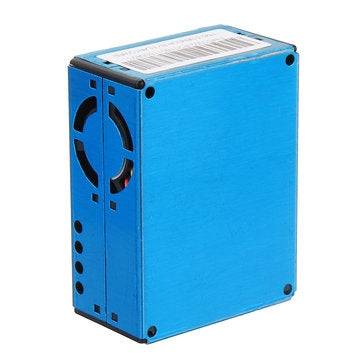

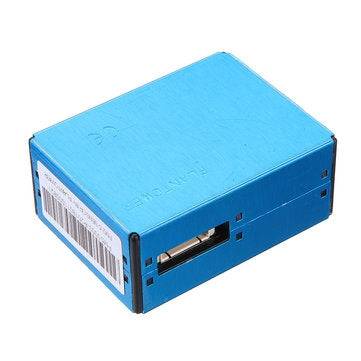

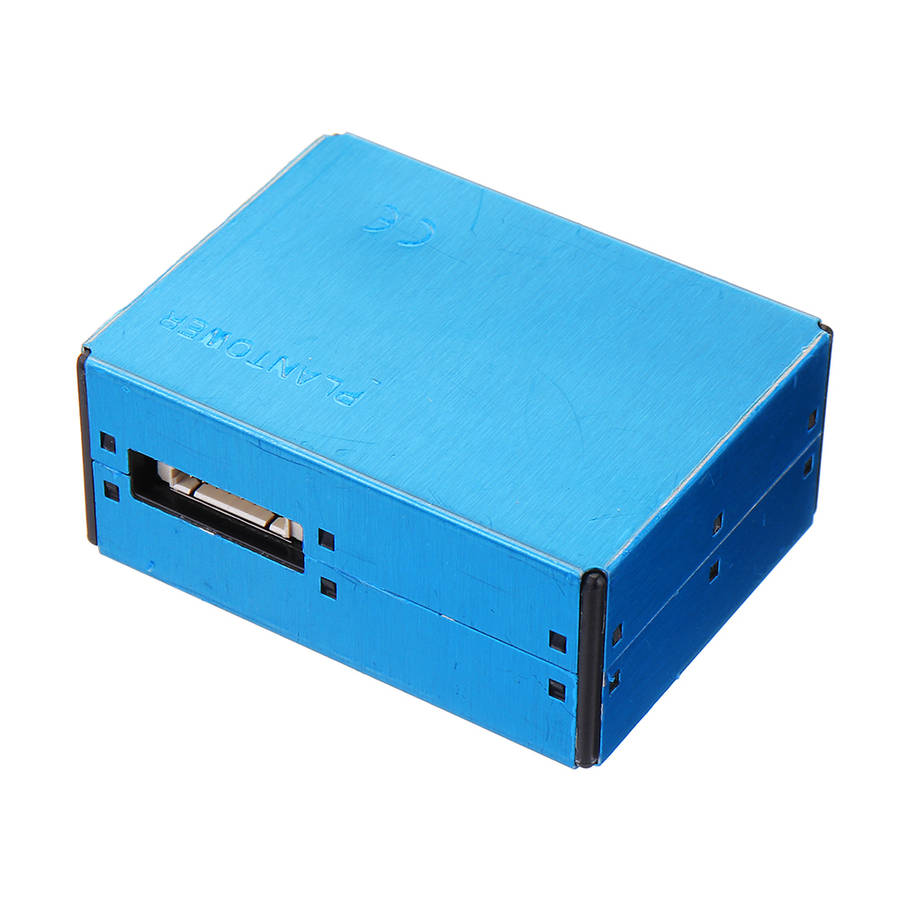

Plantower G5 PMS5003 Laser PM2.5 Sensor Accurately Detector Smog Serial Port High Precision

Feature:

This sensor uses the principle of laser light scattering. That is, the laser illuminates the suspended particles in the air to generate scattering, and at the same time, the scattered light is collected at a certain angle to obtain a curve of the scattered light intensity with time. Furthermore, the microprocessor uses an algorithm based on the MIE theory to obtain the equivalent particle size of the particles and the number of particles of different particle sizes per unit volume.

Parameter	Index	Unit
Particle measurement range	0.3~1.0, 1.0~2.5, 2.5~10	Micron
Particle count efficiency	50%@0.3 micron 98%@>=0.5 micron
Particle mass concentration effective range (PM2.5 standard value)	0-500	Microgram/cubic meter
Particle mass concentration resolution	1	Microgram/cubic meter
Particle mass concentration consistency	±10%@100-500 g/m3
(PM2.5 standard value)	±10 g/m3 @0-100 g/cubic
Weighing volume	0.1	L
Single response time	<1	S
Comprehensive response time	<=10	S
DC supply voltage	Typ.5.0, Min.4.5, Max.5.5	V
Working current	<=100	mA
Stand-by current	<=200	uA
Data interface level	L<0.8@3.3, H>2.7@3.3	V
Working temperature	-10~+60	ﾣC
Operating humidity range	0-99%
Storage temperature range	-40~+80	ﾣC
Mean time between failures	>=3	Y
Biggest size	50 x 38 x 21	mm

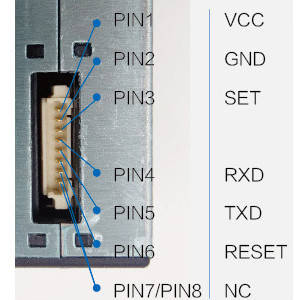

Pin Description:

VCC	Power +5V
GND	Power supply-
SET	Set the pin/TTL level @3.3V high or floating to normal operation, low level to sleep state
RXD	Serial receiver pin / TTL Level @3.3V
TXD	Serial transmit pin / TTL level @3.3V
RESET	Module reset signal / TTL level @3.3V, low reset
NC

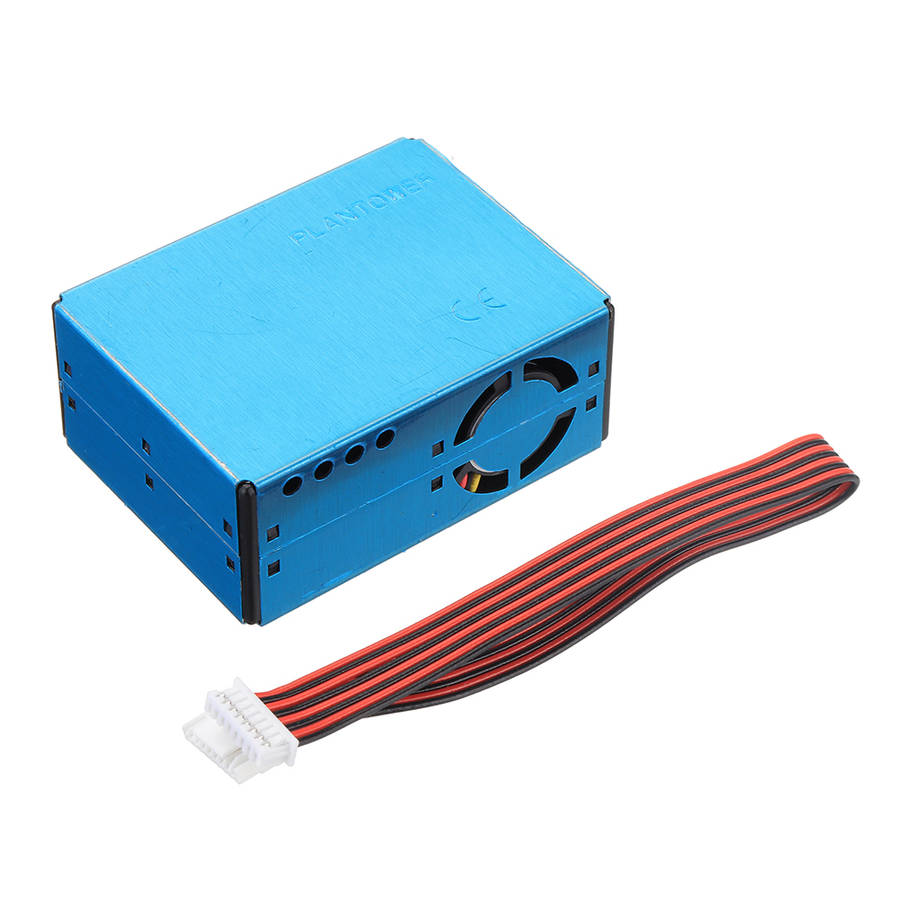

Package includes:

1 xLaser PM2.5 Sensor

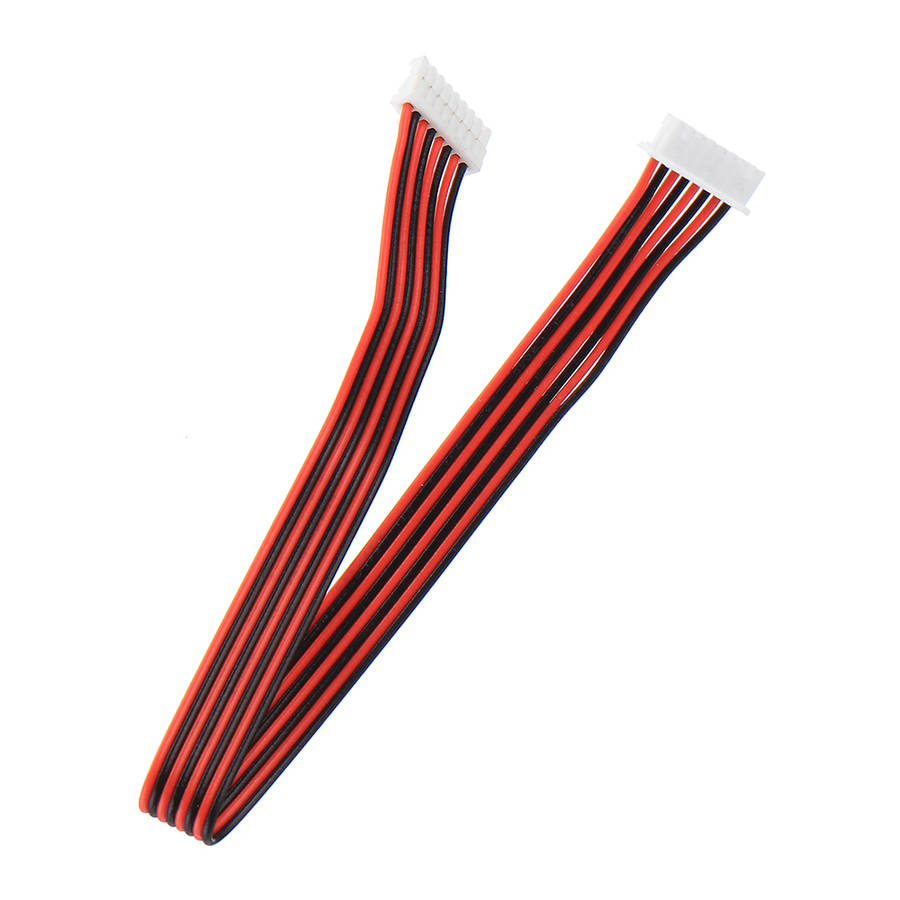

1 x Cable
