Plasma 2350 – STARter Kit

An all-in-one, USB-C powered controller for WS2812/Neopixel and APA102/Dotstar addressable LED strips.

Plasma 2350 is powered and programmable by USB-C and, because USB-C is capable of drawing up to 3A of power, that's enough to power a healthy chunk of LEDs. There's a useful button that you could use to switch between effects, plus a reset button and an onboard RGB LED. We've also popped a QW/ST connector on there, to make it super easy to plug in Qwiic or STEMMA QT breakouts.

You can buy a Plasma 2350 on its own, or in a kit with a USB-C cable and some super-cool LED stars, so you can get started lighting stuff up right away.

Features

• Powered by RP2350A (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
• 4MB of QSPI flash supporting XiP
• Compatible with 5V WS2812/Neopixel/SK6812 and APA102/Dotstar/SK9822 LEDs
• Screw terminals for attaching your LED strip.
• USB-C connector for power and programming (3A max)
• Qw/ST (Qwiic/STEMMA QT) connector
• Intriguing new SP/CE connector
• Reset, BOOT and a user button (the BOOT button can also be used as a user button)
• RGB LED
• Fully-assembled (no soldering required)
• Measurements: approx 61 x 22 x 12mm (L x W x H, including connectors)
• Programmable with C/C++ or MicroPython

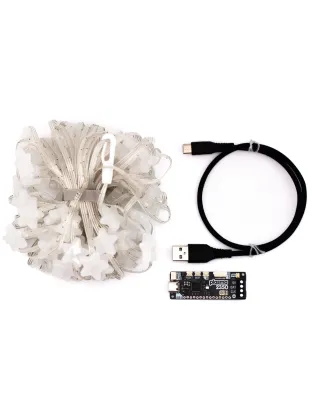

STARter Kit contains

• Plasma 2350
• USB-C cable for power and programming
• 10m RGB LED Star Wire

Pintout and Schematic

• Download a printable PDF version
• Schematic (coming soon)

Getting Started

• RP2350 MicroPython builds and examples

Connecting Breakouts

If your breakout has a QW/ST connector on board, you can plug it straight in with a JST-SH to JST-SH cable, or you can easily connect any of our I2C breakouts with a JST-SH to JST-SH cable coupled with a Qw/ST to Breakout Garden adaptor.

• Breakouts currently compatible with our C++/MicroPython build

We've also broken out the I2C, analog, UART and debug pins so you can solder things like breakouts or analog potentiometers directly to them (or solder on a strip of header and plug the whole shebang into a breadboard).

About RP2350

The RP2350 chip is the Double Quarter Pounder & Fries to the RP2040's Double Cheeseburger and can have one or more RISC-V burgers instead of either of the M33 ARMs, to stretch the metaphor.

In addition to the modern M33 ARM cores, there are sides of: more PIO capability, a variety of low power states for sipping electrons, a whole security system and some sprinklings of specialist digital video circuits to offload DVI/HDMI output.

You can expect a tasty boost in performance - our "real world" MicroPython tests are running up to 2x faster compared to RP2040, and floating point number crunching in C/C++ is up to 20x faster. The extra on-chip RAM will make a big difference when performing memory intensive operations (such as working with higher resolution displays) and even more can be added thanks to external PSRAM support.

RP2350 comes in two flavours - A (standard) and B (all the pins). The B chip has a stonking 48 usable GPIO pins, including 8 ADCs and 24 PWMs, and features on some of our new products.

What's in the box?

1 x Dotstar addressable LED strips

1 x USB to USB-C Cable

1 x Plasma 2350
