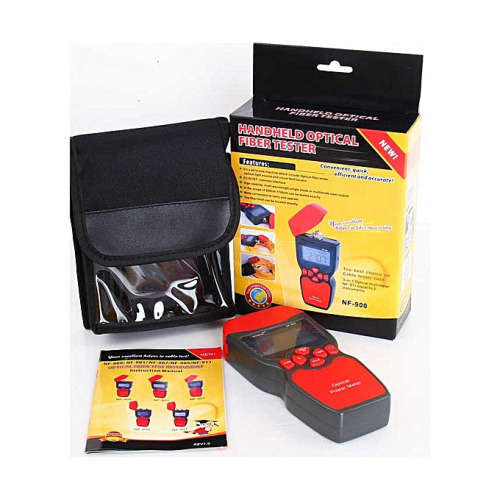

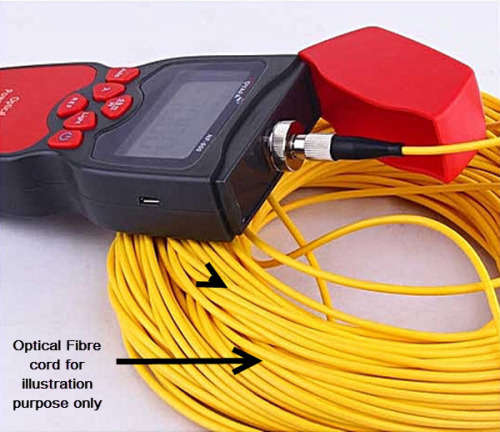

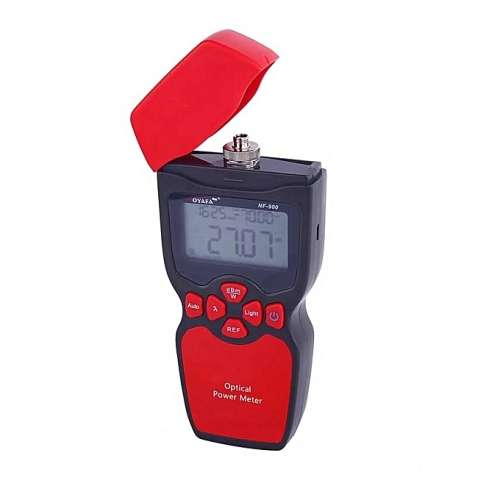

Plastic Hand Held Optical Fiber Power Meter-Red & Black

Features:

Product description main functions of optical fiber power meter

1. Measurement of the power of optical sender (dbm and w).

2. Insertion loss test of optical devices.

3. New ref user-defined, reference value storage

4. Fc/sc/st general-purpose interface.

5. Comfortable lcd display and optional backlight lcd display supports night operation

6. Wavelength:850/1300/1310/1490/1550/ 1625nm

7.optional auto-off function and backlight switch.

Applications:> telecom, unicom, mobile catv, power, railway, petro-chemical, troop, coal, college, science & research agency, etc.

Accessories:* ac charger 1pc* cotton swabs 1pc* desiccant 1pc

packaging: carton+ gift box + carry case

technical indexes:

model nf-900a nf-900

cpower detecting range(dbm) -70 +10 -50 +26

wavelenth (nm) 800-1700

probe ingaas detection limit 1.0mm

standard wavelength 850, 1300, 1310, 1490, 1550, 1625

display resolution 0.01dbm

optical connector fc/sc/fc working temp -20 +70

battery serving time 50h

power supply AA battery

overall dimension 160 x 75 x 32mm.

 The item colour and design may vary from batch to batch from the manufacturer.
Functionality however remains unchanged.
