Plug directly - iRangeX ExpressLRS ELRS 2.4GHz Nano RX CRSF SBUS Ultra-Low Latency Open-Source Recei

iRangeX ExpressLRS ELRS 2.4GHz Nano RX CRSF SBUS Ultra-Low Latency Open-Source Receiver for RadioMaster Pocket TX16S Mark II Jumper T-PRO T20 T20S Radio Transmitter

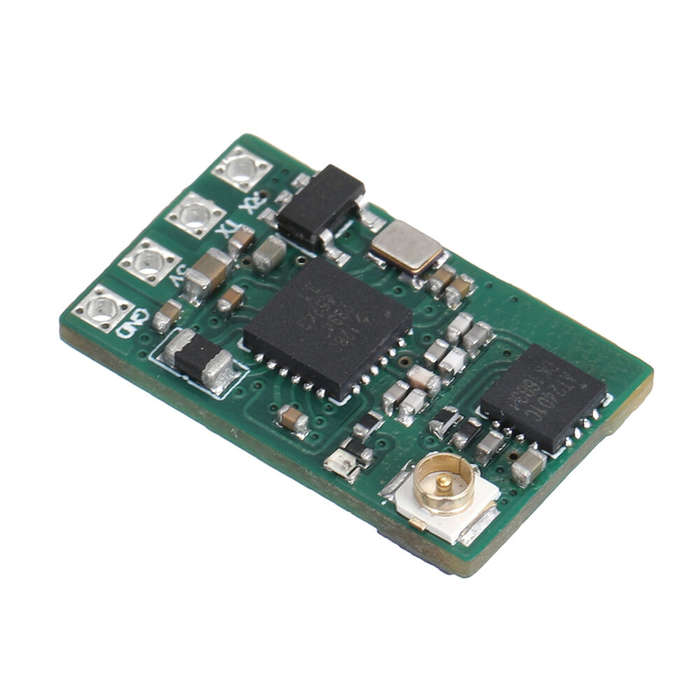

Introduction: This ExpressLRS series nano receiver utilizes LoRa technology based on the Semtech SX1280/SX1281 chipset combined with an ESP8285 processor, achieving ultra-low latency and long-range communication. The system supports a packet rate of up to 1000 Hz, ensuring smooth and delay-free control. Due to it's open-source nature and widely support, more features are still being continuously developed.

Specification:

Brand: iRangeX

Model:

Operating voltage: 4-5.5V Operating current: <=150mA Operating frequency: 2.4G RF power: 100mW Max Weight: 0.7g(antenna not include) Size: 17x10x3mm (antenna not include) Output Protocol: CRSF or SBUS Processor: ESP8285
