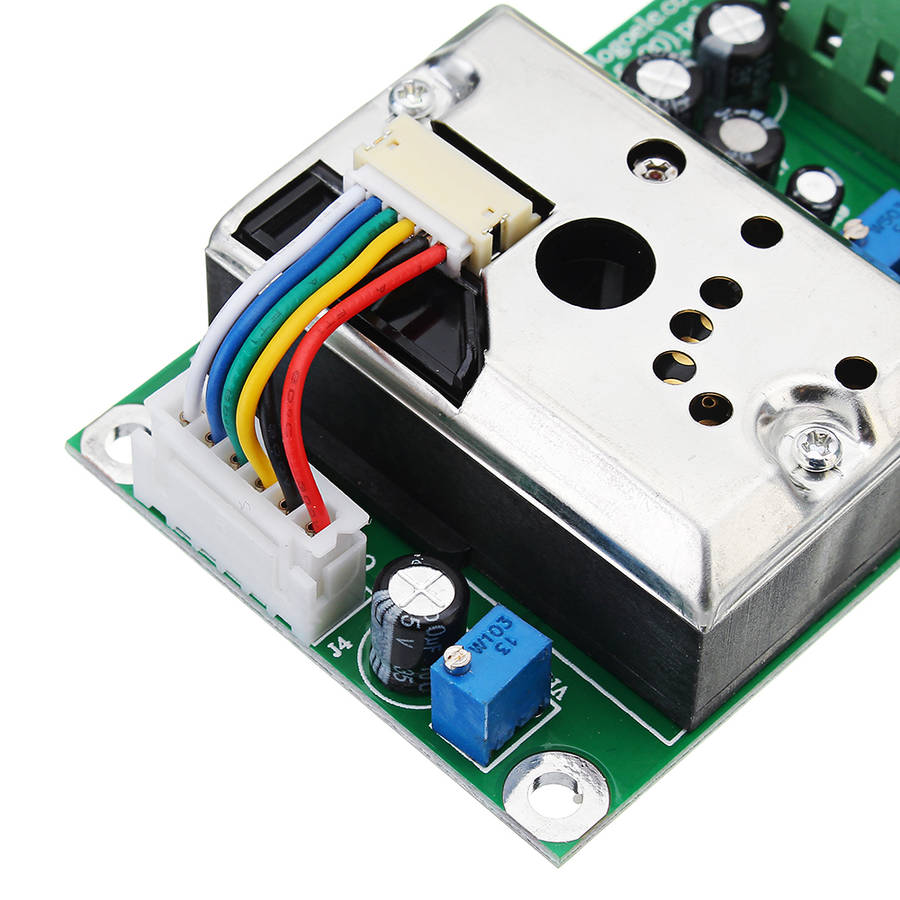

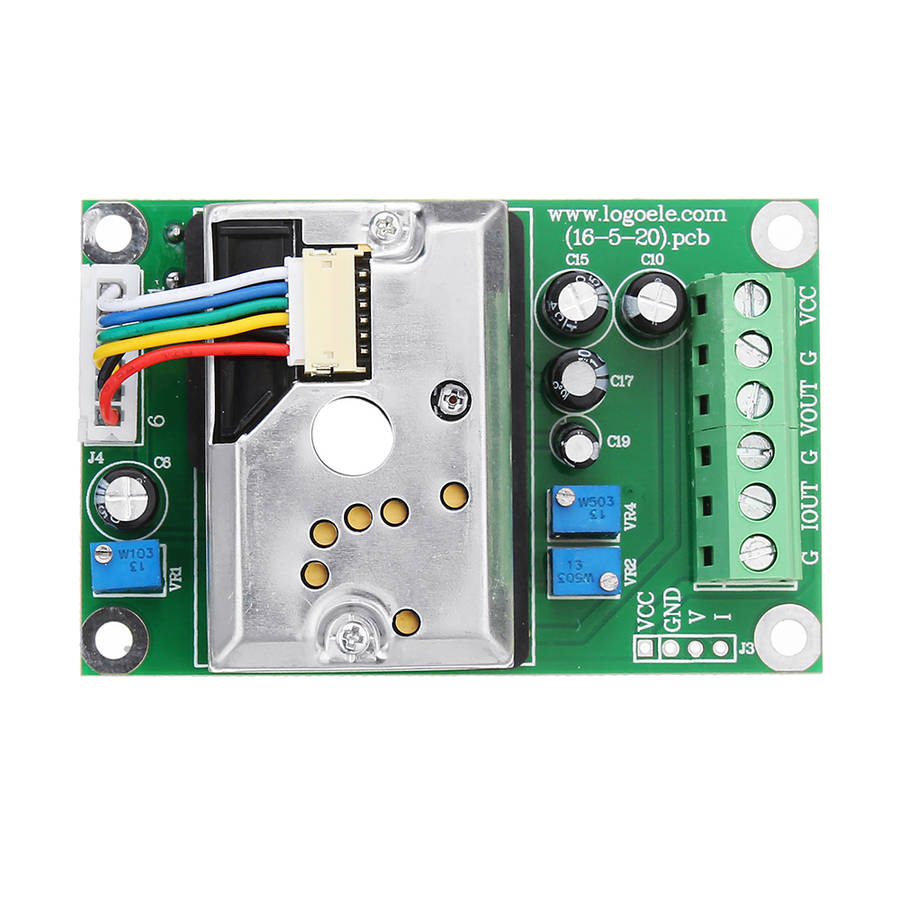

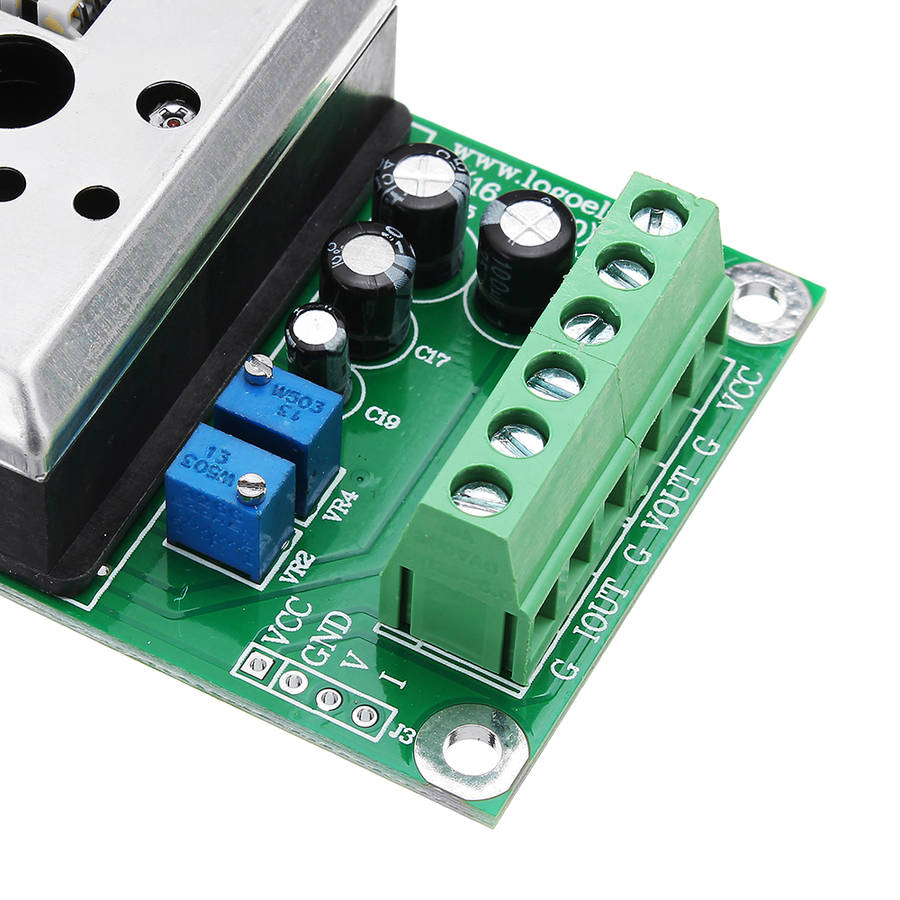

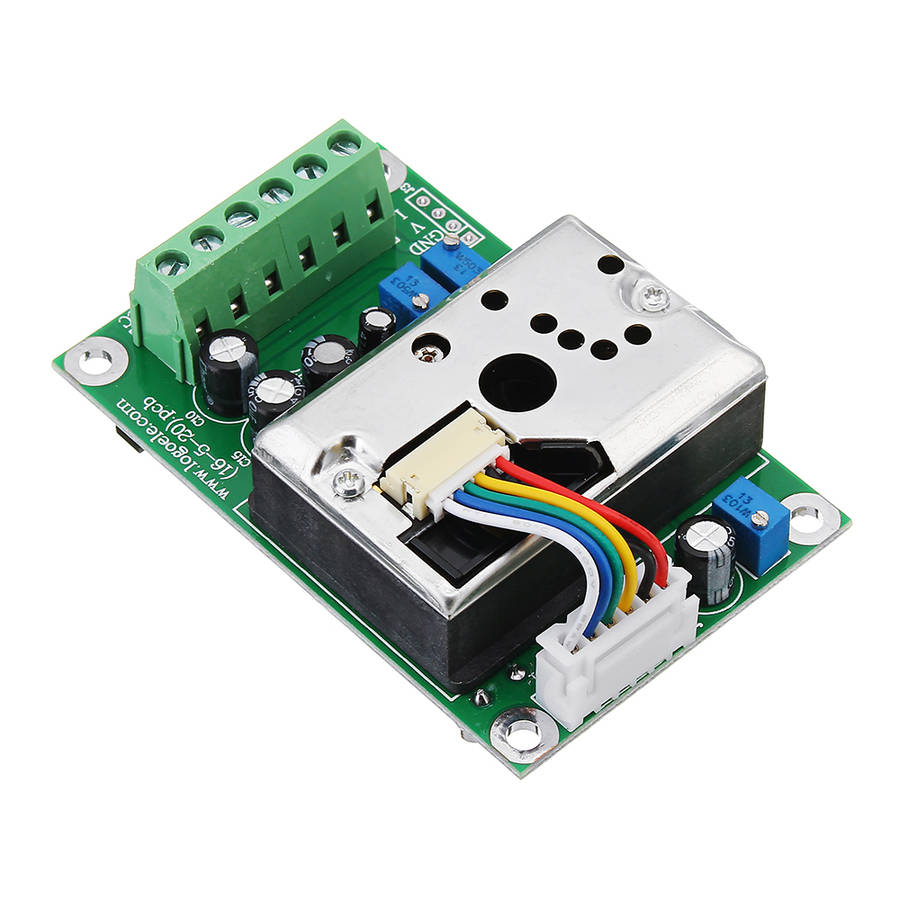

PM2.5 Detector Dust Transmitter High Precision Dust Sensor Module Dust Concentration 0-10V 4-20mA Ou

PM2.5 Detector Dust Transmitter High Precision Dust Sensor Module Dust Concentration 0-10V 4-20mA Ou

New 20 available
R1,152.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
657015136
Specifications: Detecting elementC: optical dust sensor Measuring range: 0-500ug/m3 Response timeC:Change to90% less than2Minute Preheating timeC: less than2Minute Working conditions: 0-50DEGC (32-122)DEGF),5-95%RH Power Supply: 24 Vdc+ 10% Power waste: 60 mA max (40 mA typical) @ 24 Vdc Input voltage effect:No effect on rated voltage range Circuit protection: Power supply protection Output signal: 4-20mA 0-10 Vdc Signal output capability: Maximum current output500Omega, Minimum voltage output10 KOmega Connection line installation: Wiring terminal14-22Line) Module size: 65 x 48 x 20 Package Included: 1 x PM2.5 Dust Transmitter Detection
