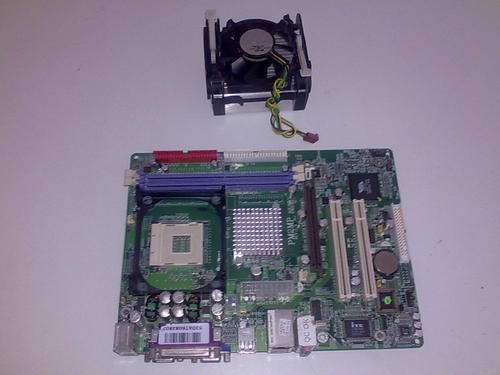

pm2mp motherboard

SPECIFICATIONProcessorSupport Socket 478B processor for Intel PentiumO 4 (mPGA478) package processor ,Support 400/533MMHzHz System Bus FrequencySupport Hyper Threading CPU/Prescott CPUChipsetVIA P4M266A Memory Controller Hub (MCH)VIA 8235 South BridgeMagic SettingSupport CPU Front Side Bus step by step setting in BIOS SETUP let users have many choice when use over-clock functionJumplessSupport Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency And RatioExpansion SlotTwo 32-bit PCI Bus Master SlotsOne 4X AGP Slot (Support 1.5V AGP card only)System Memory2 x 184-pin DDR Module Socket support DDR200/DDR266 DDR SDRAM up to 2.0GB System memory.On Board AGP V.G.AIntegrated 2D/3D Graphic EngineSupport 8/16/32MB frame bufferResolution up to 1920x1440 256/32K/64K/16M color @75Hz NI250MHz RAMDAC on chipOn Board IDESupport 2 X IDE Connectors for up to 4 IDE DrivesSupport PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/sSupport UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 133M Bytes/sSupport LS-120 / ZIP DeviceOn Board Lan ControllerIEEE802.3 10/100 BASE T StandardsBIOS Boot-up from LanOn Board 3D AudioSoftware Audio Controller With On Board 6-Channel CODEC Compliant to AC97'Support 3D Surround & Positioning, Full DuplexOn Board Ultra I/OOn Board Winbond Chipset2 X Serial Ports (16550 Fast UART Compatible)1 X Parallel Port (EPP and ECP capabilities)1 X Floppy Disk Connector (Supports 2 Floppy Drivers)1 X PS2 Mouse Connector1 X Keybord Cnnector3 X Three Wire FAN Connector (Include CPU FAN)1 X LINE IN / LINE OUT / Microphone Connector1 X Game Port Connector (Support Two Joysticks)2 X Analog Audio CD Music line Connectors (different connector)1 X Consumer IR Connector1 X Standard IR Connector (Infrared)1 X VGA ConnectorOn Board USB6 X USB 2.0/1.1 Ports ConnectorSupport USB Keyboard & USB MousePower SavingACPI/APM Power ManagementModem Ring remote wake upRTC Alarm Wake upSupport Software Suspend & Power offSupport Suspend to DISKWake on LAN For OSSupport Auto Power ON After Power Fail FunctionSupport Keyboard Password / Hot-Key / Any Key Power on FunctionSupport PS2 Mouse Button Click Power OnSupport Keyboard98 Power on FunctionSupport Power Button Ride (Instant off or Delay 4 second power off)Power Fail Recovery supportPower SupplySupport 20-pin ATX power supply (ATX-PW)BIOSAward BIOS , Support Green function, Plug and Play Function2MBit Flash ROMDimensionMicro ATX Form Factor with 24.5cm X18cmCPU SupportCompatibilityRAM Memory SupportCompatibility
