PN532 NFC RFID Module V3 Reader Writer Breakout Board For Android

20 available / new
R462.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641132246

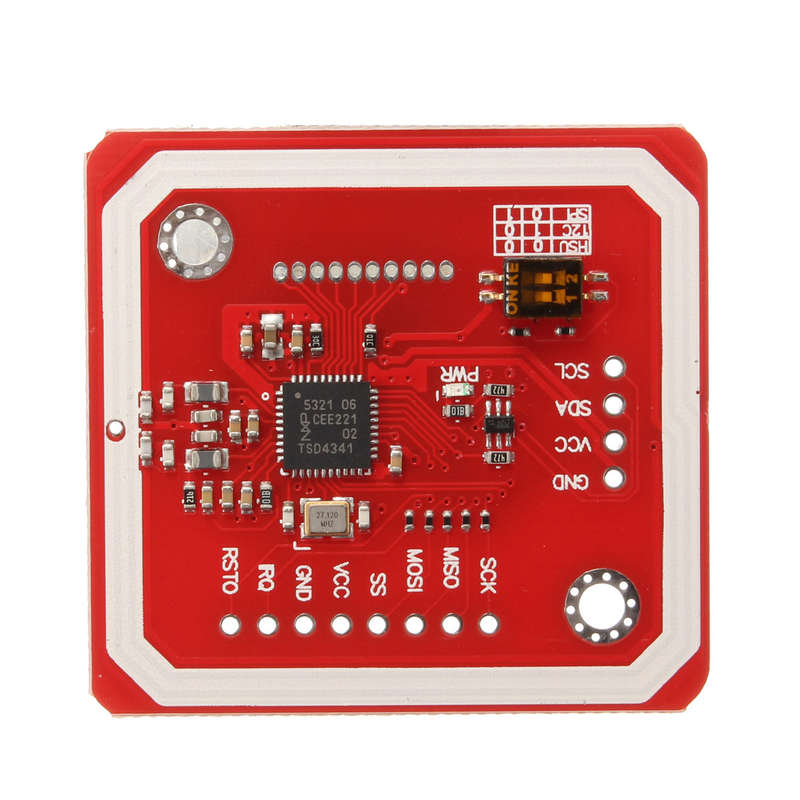

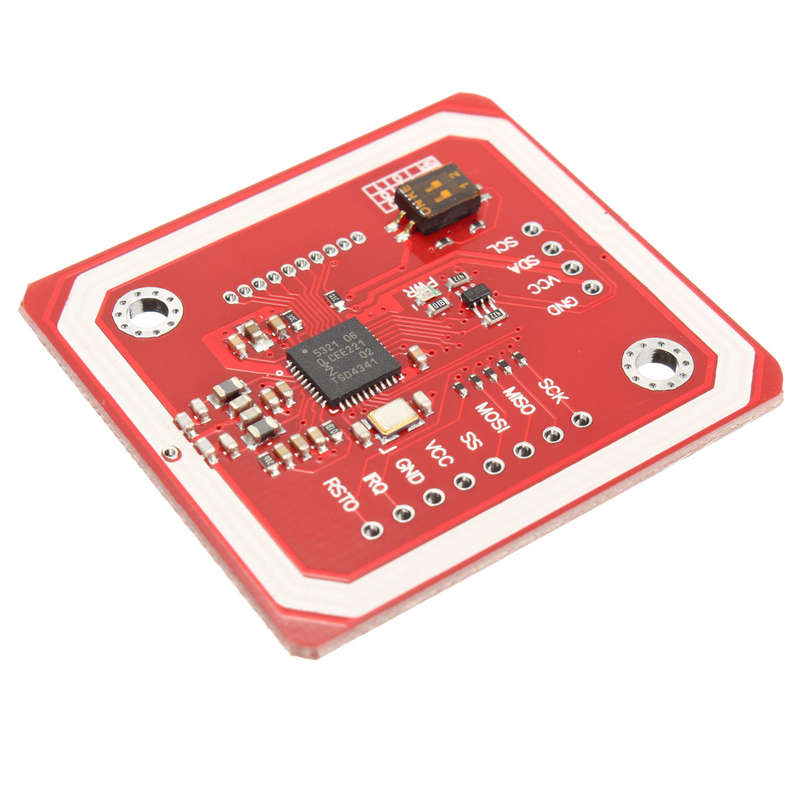

Feature:

Small dimension and easy to embed into your project
Support I2C, SPI and HSU (High Speed UART), easy to change between those modes
Support RFID reading and writing, P2P communication with peers, NFC with Android phone
Up to 5cm~7cm reading distance
On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
compatible, plug in and play with our shield
Size: 43*40mm

RFID reader/writer supports:

Mifare 1k, 4k, Ultralight, and DesFire cards
ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
Innovision Jewel cards such as IRT5001 card
FeliCa cards such as RCS_860 and RCS_854

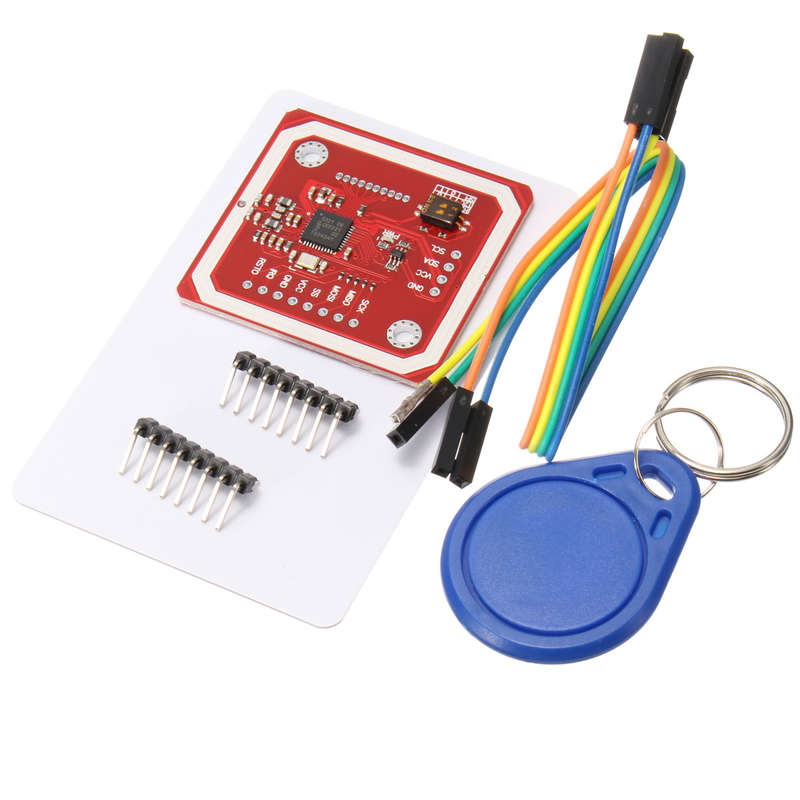

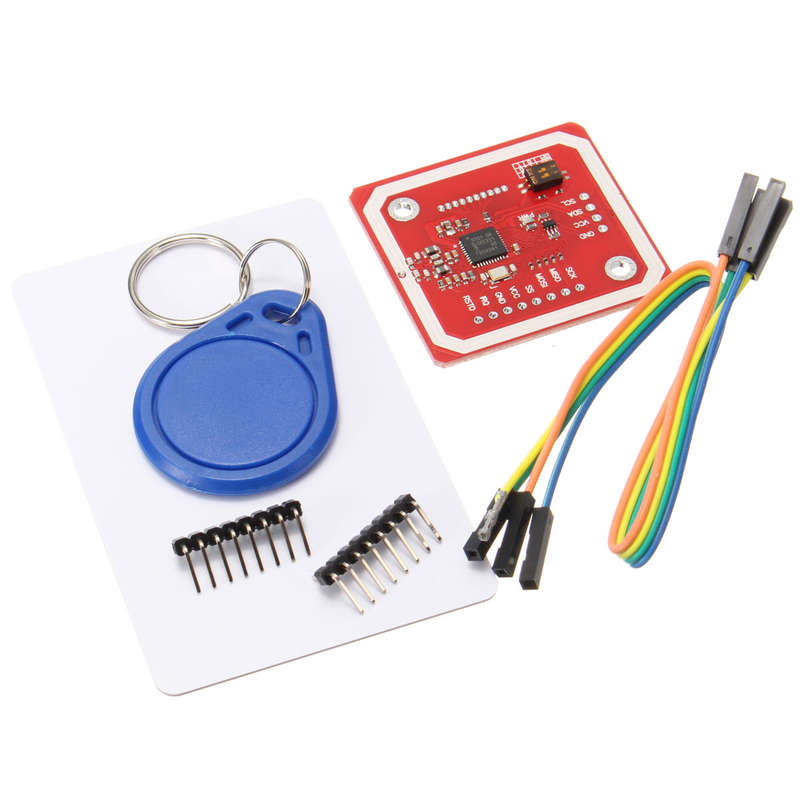

Package included:

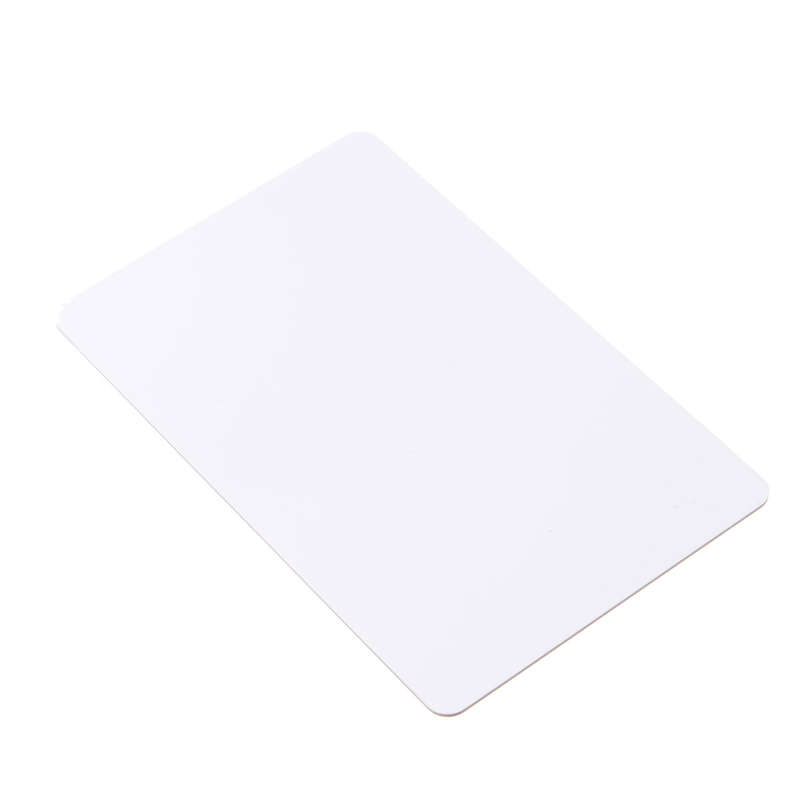

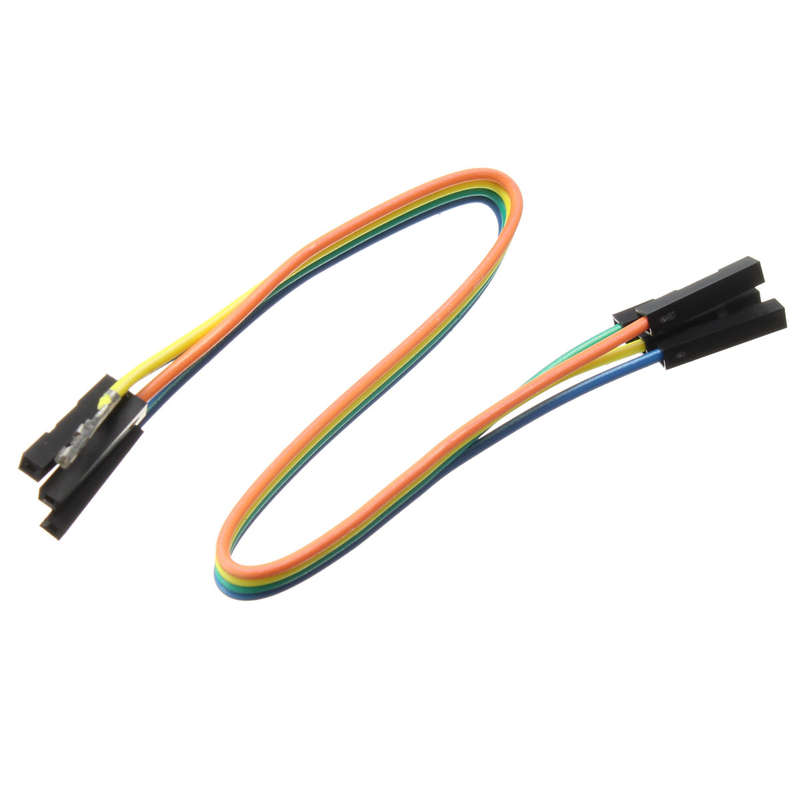

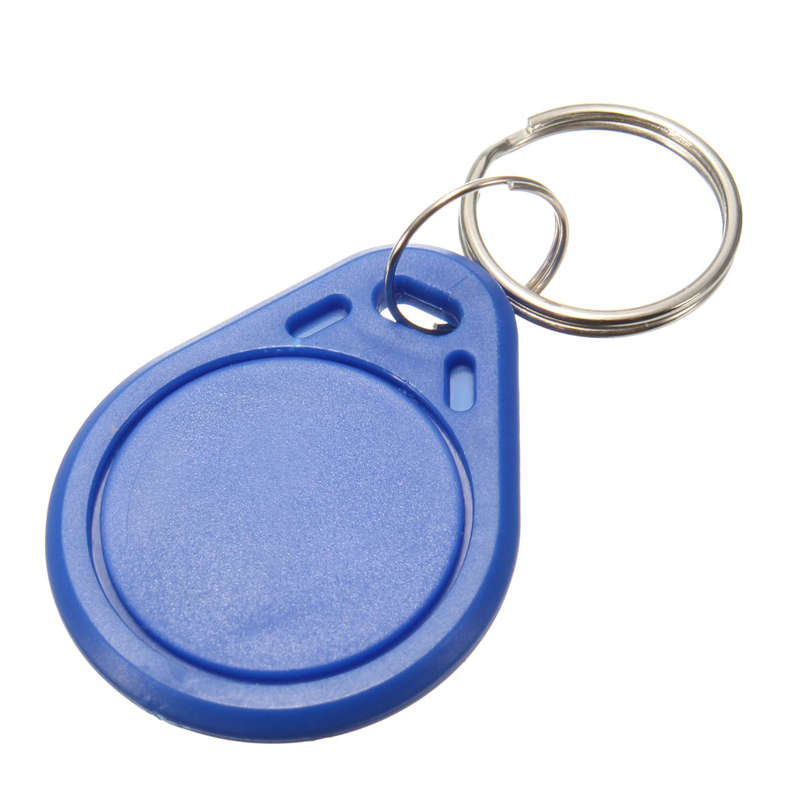

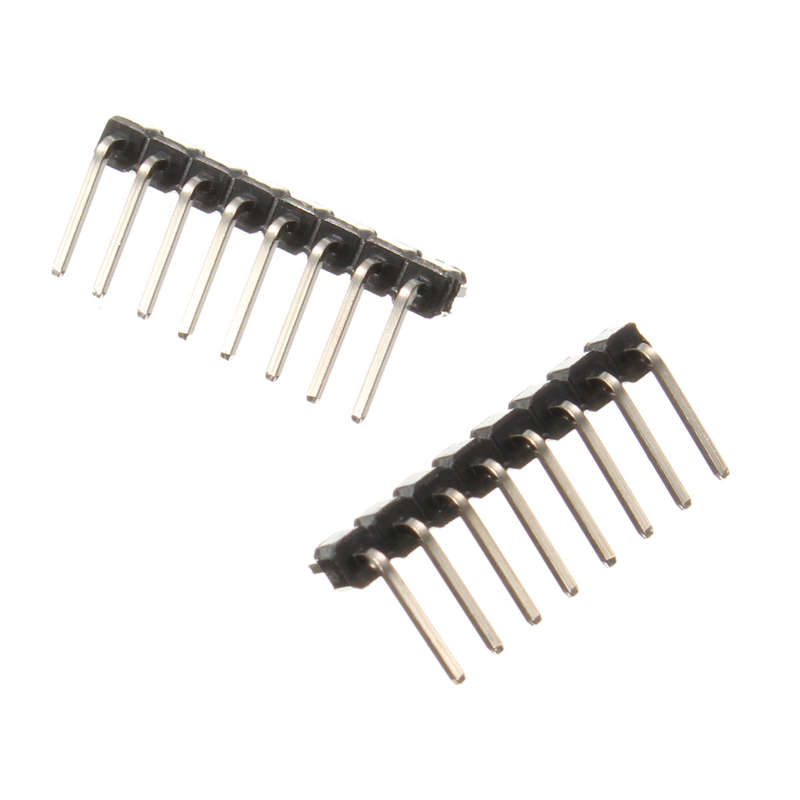

1 x PN532 NFC RFID Module 1 x 2.54mm spacing 4pin Cable 1 x Mifare One S50 White Card 1 x Mifare One S50 Key Card 1 x Bended male pins
