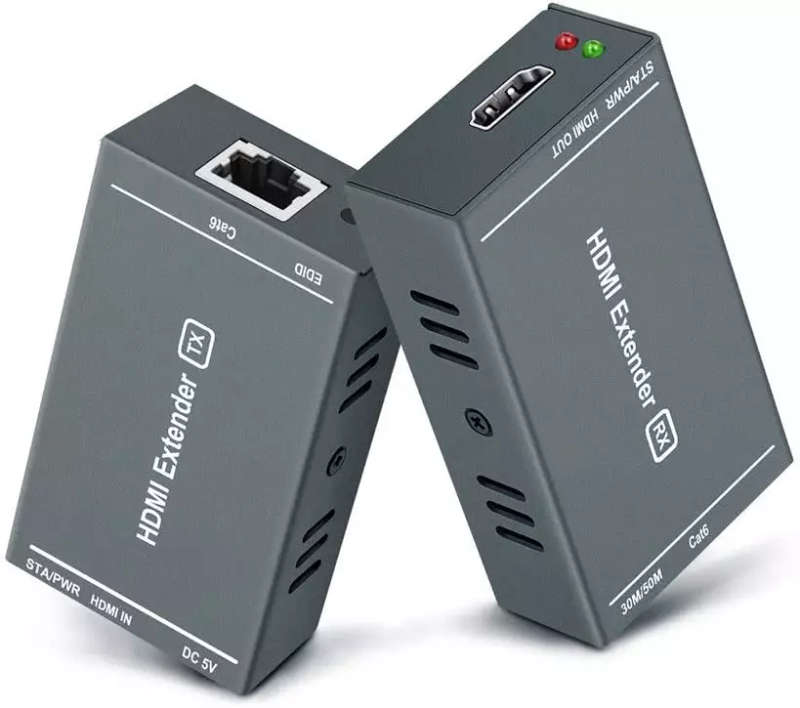

This POC Powered HDMI Extender over Single Cat5e/6 extends high definition video and audio signals, at a distance of up to 40m (1080p) / 70m (720p) over a single Cat5e/6 cable.
Features:
Installation
1. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
2. Connect the HDMI output port of receiver to the display device with HDMI cable,
3. Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable (Shielded CAT6 recommended as per best practices installation guidelines).
4. Connect the provided DC 5V Power Supplies to the power socket of the transmitter
?v=pVqfjhDXuUg
Specifications:
Length of CAT-6 cable between Rx and TX | Up to 70 metres 720p / 40 Meter 1080p |
HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support audio format | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support audio format output | LPCM7.1/DTS/Dolby-AC3/DSD |
Max bandwidth | 2255MHz |
Max baud rate | 6.75Gbps |
Input Video signal | 0.5~1.5Volts p-p |
Output DDC signal | 5Volts p-p (TT1L) |
Input/Output HDMI Cable Distance | 20m HDMI cable |
Max working curren | 1000mA |
Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
Operating Temperature range | (-15 to +55) |
Operating Humidity range | 5 to 90%RH (No Condensation) |
Dimension (L x W x H) | 82x45x21 (mm) |
Weight | 250g |
