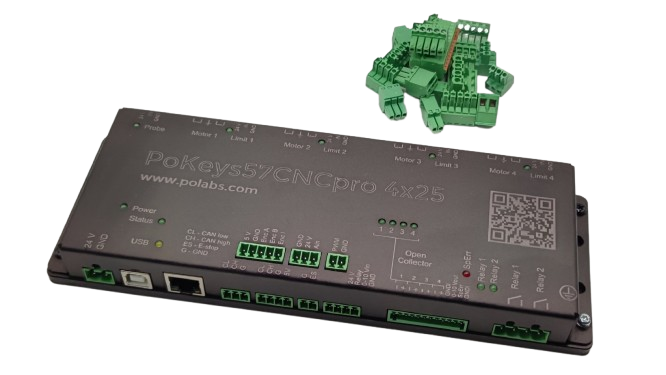

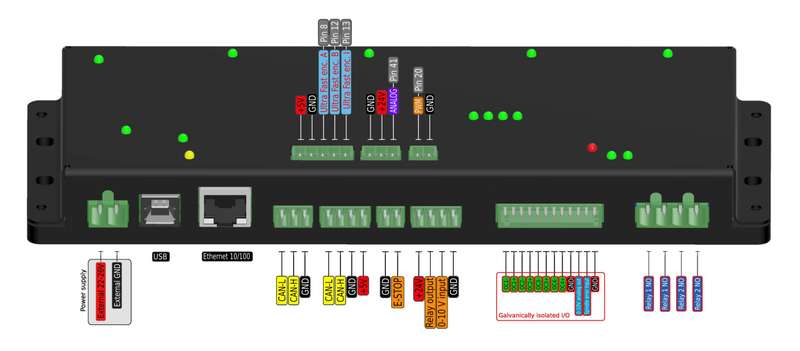

PoKeys57CNCpro4x25 Ethernet and USB CNC Controller

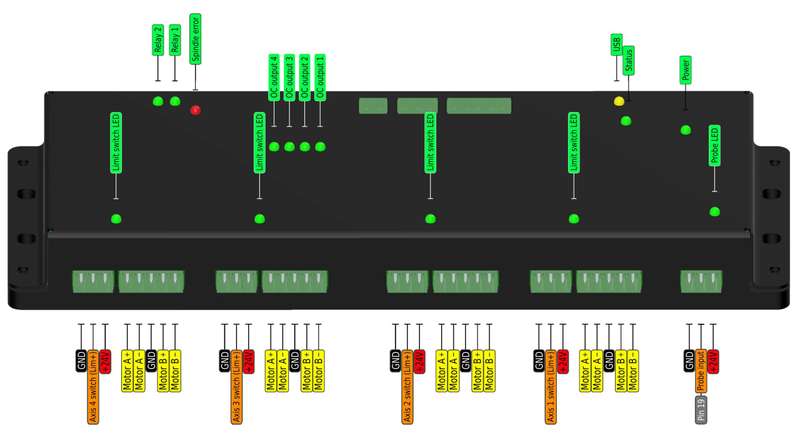

• 4 dedicated connectors directly for stepper motors with high performance 4-axis 125 kHz pulse engine
• 4 dedicated digital inputs (24 V compatible) for connecting home/limit switches
• 1 dedicated digital input (24 V compatible) for probe input
• 1 dedicated digital input for e-stop switch
• 1 analog input (12-bit, 0-10 V range) with analog low-pass filter with 1.9 kHz cut-off frequency
• 2 relay outputs for high power load switching
• 4 OC (open collector) digital outputs with galvanic isolation
• Dedicated encoder input for the spindle encoder
• Dedicated 5 V PWM output
• 0 10 V industry standard analog input
• Dedicated spindle control connector
• CAN bus interface (for kbd48CNC keyboard and other peripheral devices)
• Plasma interface connector for PlasmaDiv
• Fail-safe support in case of communication interruption
• Compatible with USB 1.1/2.0 HID standard
• Ethernet 10/100 with DHCP client or fixed IP support
• TCP or UDP connection with the device
• Modbus TCP support (access to digital IO, analog inputs, encoder values, digital counters values, PWM outputs, LCD display, PoExtBus devices, matrix keyboard status)
• Web interface with dashboard and I/O status display with multiple user accounts
• Intuitive and user-friendly software
• Third-party support via communication DLL library and extensive protocol specification document that allows porting to other systems
• Supported by Mach4 CNC control software

Product Requirements

• Ethernet or USB connection between host computer and PoKeys57CNC
• 6-26 V DC power supply with 100 W or more. More power is required if additional peripherals are connected to PoKeys57CNC device.
• Windows 7/8/10/11 with .NET framework 3.5 or newer installed

Downloads Available

PoKeys57CNCpro4x25 user manual
