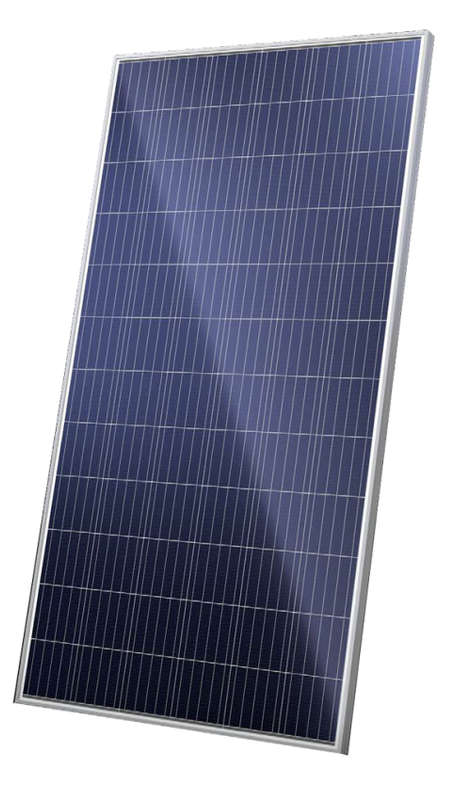

Polycrystalline Solar Panel | 320W

 Polycrystalline Solar Panel | 320W

Solar panel generates free energy for many general household appliance.

They can be installed into a on-grid or off-grid applications.

High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.

Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.

Good performance of preventing from atrocious weather such as wind and hails.

Resisting moisture and etching effectively, not effected by geology.

Features:

High Efficiency solar cells in series.

High Transmissivity low iron toughened glass.

High wind-pressure and snow load.

Waterproof and ultraviolet resistance junction box.

 Specifications:

Solar cell: Poly crystalline 156×156mm

No. of cells and connections: 72(6×12)

Power Tolerance:  ±5%

Maximum Power: 320W

Open-circuit voltage(Voc): 45.7V

Short-circuit current(Isc): 8.85A

Voltage at Pmax(Vmp): 37.8V

Current at Pmax(Imp): 8.46A

Maximum System voltage: 1000VDC

Output power: 80%+ for 25 years, 90%+ for 10 years

Pictures are for illustration purposes
