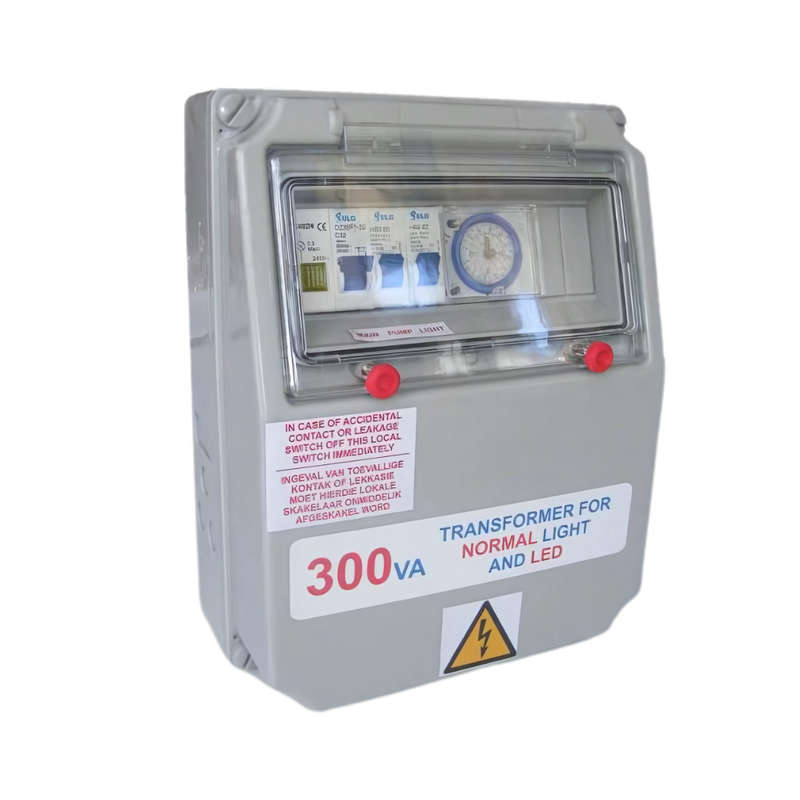

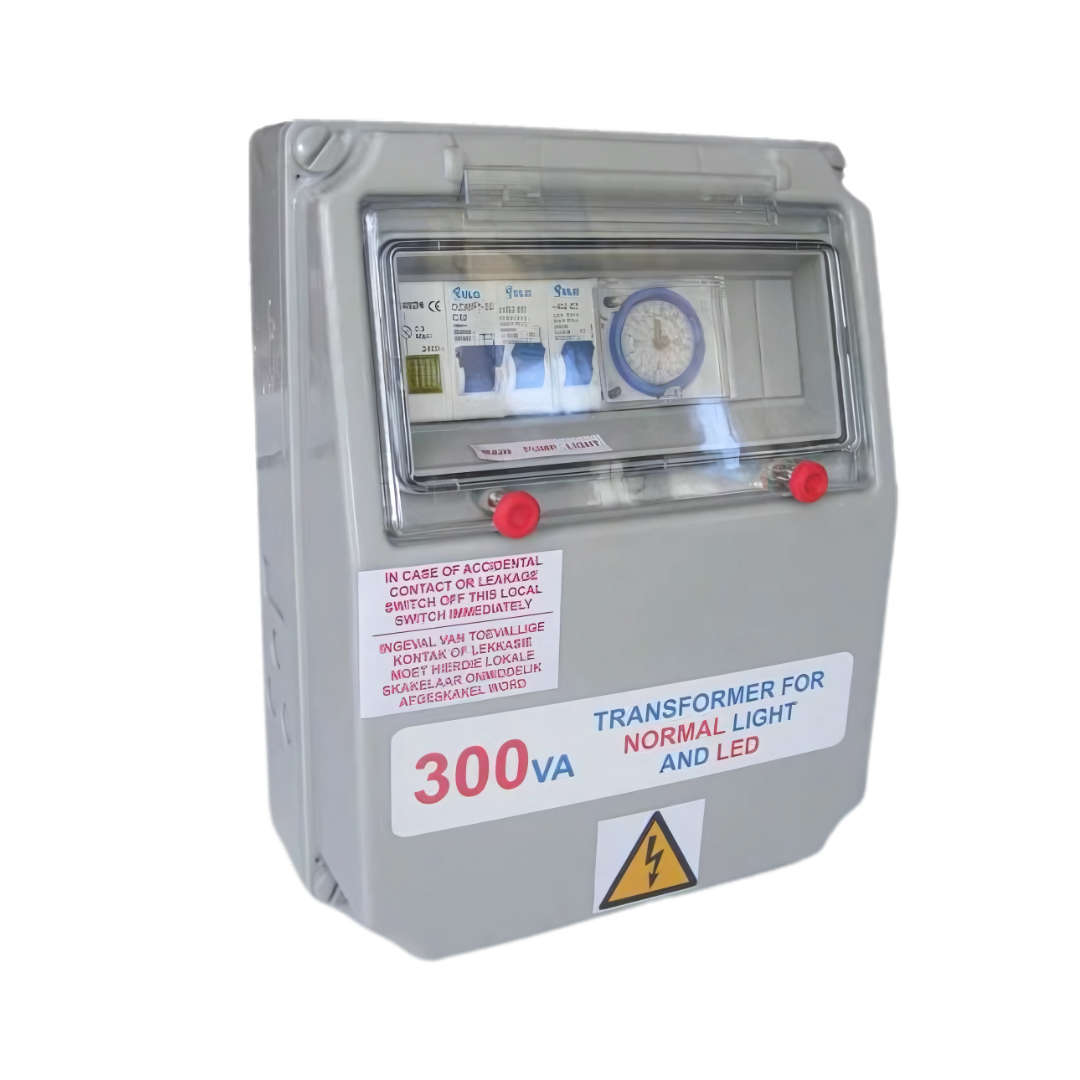

POOL DB BOX 300VA AQUA MAX INCL. TIME SWITCH
Product Description:
The Aqua Max 300VA Pool Distribution Box with Time Switch is designed to handle your pool pump, lights, and main power connection, this weather-resistant unit simplifies your pool's electrical system management.
Constructed from durable, weatherproof plastic, this DB box includes a 32A double pole main circuit breaker, along with separate 16A and 6A breakers for your pump and pool lights. It also features a built-in analogue time switch, ensuring automated control of your pump's operating schedule.
Capable of supporting up to 1.5kW pump power, 2 x 125W incandescent lights, or up to 6 LED Blue lights / 4 colour-changing LEDs, the Aqua Max 300VA DB Box is both powerful and adaptable. The built-in transformer supports LED compatibility, and the unit is easily mounted next to your pump station.
Professional installation by a certified electrician is strongly recommended to ensure safety and warranty compliance.
Key Features:
Pre-wired 300VA transformer for safe LED pool light operation
Analog time switch for pump automation and scheduling
Weatherproof housing suitable for outdoor installation
Dual-pole main breaker plus individual breakers for pump and lights
Pilot light for power status indication
Battery backup to retain timer settings during outages
Supports 1.5kW pumps and multiple lighting configurations
Technical Specifications:
Model: Aqua Max 300VA Pool DB Box
Material: High-strength plastic
Colour: Light grey
Dimensions: 295mm (H) x 295mm (W) x 130mm (D)
Weight: 3.675 kg
Main Breaker: 32A double pole
Pump Breaker: 16A
Light Breaker: 6A
Timer Type: Analogue with battery backup
Transformer: 300VA (LED compatible)
Lighting Support:
2 x 125W incandescent
6 x LED Blue
4 x Colour-changing LEDs
FAQs:
Q: What type of pool lights can I use with this DB box?
A: This DB box supports incandescent pool lights up to 125W each and is also fully compatible with LED and colour-changing pool lights.
Q: Can this unit be installed outdoors?
A: Yes, it is weatherproof and designed for outdoor installation near your pump station.
Q: Does the timer retain its settings during load shedding?
A: Yes, it includes a battery backup to preserve your schedule during power cuts.
Q: What is the maximum pump size it supports?
A: It supports pool pumps up to 1.5kW.
Q: Who should install this product?
A: A certified electrician must install this DB box for safety and warranty validity.
Warranty Information:
Warranty Information: The Aqua Max Pool Distribution Box with Time Switch comes with a 6-month ex-factory warranty from the date of purchase, subject to normal operating conditions. Warranty claims will only be considered if a factory fault is detected. For processing a warranty claim, it is essential to provide an installation invoice with the electrician's details.
Testing and Factory Malfunction Warranty: All pool distribution boxes are thoroughly tested before leaving the warehouse. Please note that pool distribution boxes carry only a factory malfunction warranty due to the installation process. To initiate a warranty claim, the box will be tested again after being returned to the factory.
Installation Invoice Requirement for Warranty Claim Processing: To process a warranty claim for the AquaMax 125VA Pool Distribution Box with Time Switch, an installation invoice containing the electrician's details is mandatory. The invoice should include the following information:
- Electrician's/Pool Tech name
- Contact information (phone number, email address)
- Date of installation
- Description of the installation work performed.
Please retain a copy of the installation invoice, as it will be required for any warranty claims. The warranty claim will be processed once the installation invoice, along with other necessary documents, is provided, provided that a factory fault is detected during testing.
