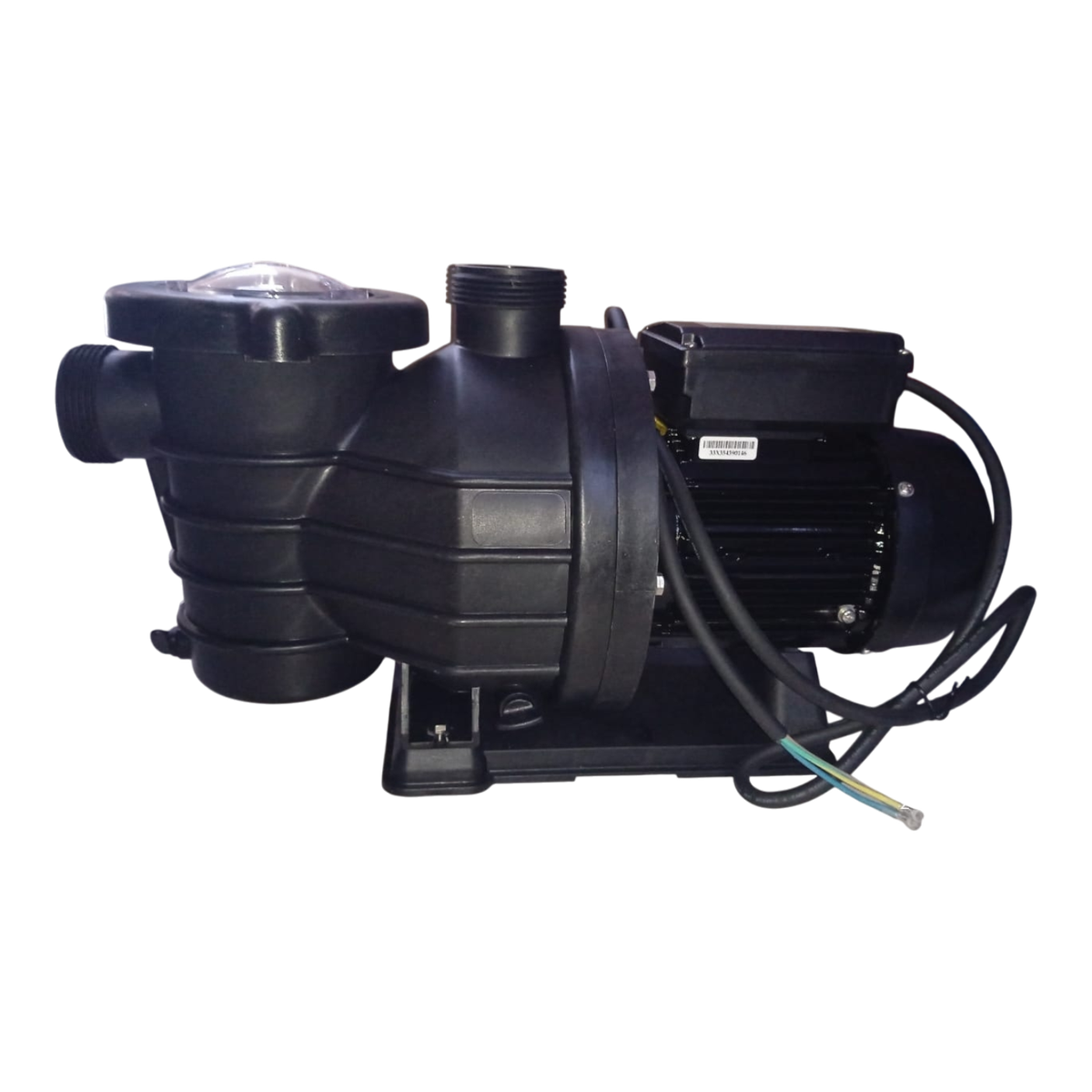

POOL PUMP AND MOTOR 1.1kw STORM

Product Description

The POOL PUMP AND MOTOR 1.1kW STORM delivers efficient water circulation for pools up to 75,000 liters. Its 1.1kW squirrel cage induction motor ensures consistent performance, while the self-priming centrifugal design allows quick start-up. The closed vane impeller enhances water flow, and the integrated leaf trap strainer reduces debris-related issues. Installation is simplified with inner-threaded inlet and outlet connections. The cam and ramp lid, featuring a see-through design, facilitates easy inspection of the strainer basket. Compatible with STORM/AQUAFLO, EARTHCO, and QUALITY 3/4 bag sand filters, this pump comes with a 12-month manufacturing defects warranty.

Product Details

• Product Type: Pool Pump and Motor
• Brand: STORM
• Power Output: 1.1kW
• Suitability: Ideal for pools up to 75,000 liters
• Warranty: 12-month manufacturing defects warranty

Key Features

1. Power Output: 1.1kW squirrel cage induction motor.

2. Pump Type: Self-priming centrifugal design.

3. Impeller: Closed vane for optimal water flow.

4. Strainer Basket: Integrated leaf trap to minimize debris issues.

5. Connections: Inner-threaded inlet and outlet for straightforward installation.

6. Lid: Cam and ramp with see-through design for easy inspection.

7. Compatibility: Suitable for pools up to 75,000 liters.

8. Warranty: 12-month manufacturing defects coverage

9. See-Through Lid: Allows easy visual inspection of the strainer basket.

Recommended Use

• Ideal for residential swimming pools up to 75,000 liters. Compatible with sand filters from STORM/AQUAFLO, EARTHCO, and QUALITY 3/4 bag models. Suitable for both new installations and as a replacement for existing pool pump systems.

Package Includes

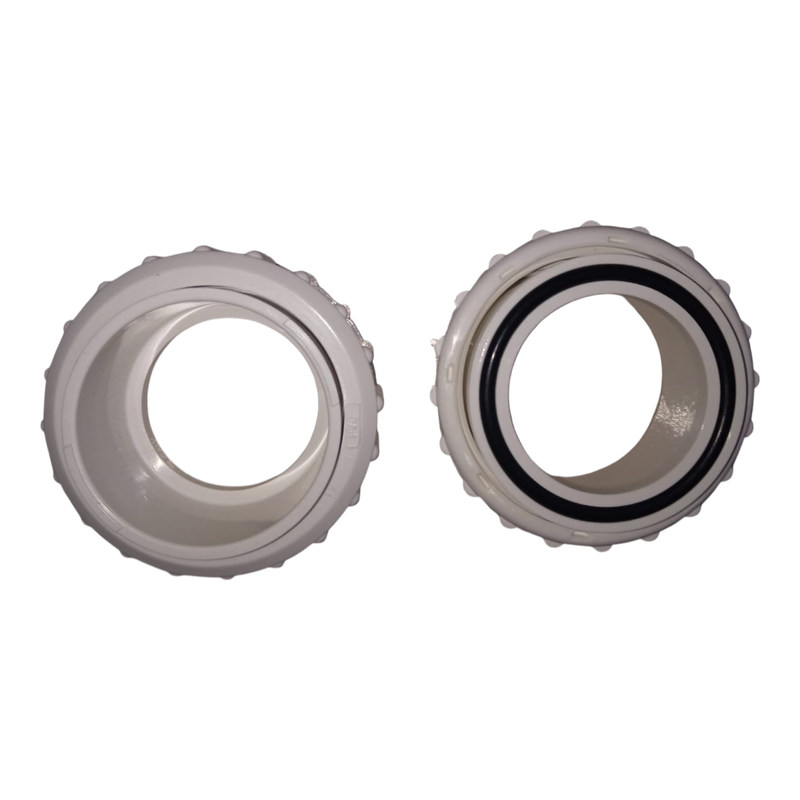

• 1 x STORM 1.1kW Pool Pump and Motor with unions

Installation Instructions

To ensure trouble-free operation, follow these guidelines for proper installation:

1. Piping: Use pipes with a minimum 50mm diameter for suction and discharge. Recommended suction pipe diameter is 50mm/63mm. Ensure the pipes are airtight and supported independently from the pump.
2. Pump Positioning: Position the pump no more than ±300mm above pool water level, ensuring proper ventilation and drainage.
3. Ventilation: Allow sufficient air circulation to prevent overheating. Maintain a clearance of 150mm behind the motor fan cowling.
4. Drainage: Prevent flooding of the pump motor by ensuring proper drainage in the pump house/box.
5. Electrical Connections: Only qualified electricians should handle electrical connections. Use properly rated cables and install a cable gland at the terminal box.
6. Rotation Check: Ensure clockwise motor rotation when viewed from the motor end.

Maintenance Tips

1. Clean the leaf trap and weir regularly.
2. Ensure the motor remains dust-free to avoid overheating.
3. Replace the rubber O-ring annually for a secure seal.
4. Do not run the pump dry or with closed valves for extended periods.
5. Use silicone paste for lubricating O-ringsavoid petroleum-based products.
6. Backwash the filter weekly or when the pressure exceeds 50% of the starting pressure.

Troubleshooting Tips

• Motor Fails to Start: Check wiring, mains supply, and ensure the motor shaft rotates freely.
• Motor Hums but Doesn't Start: Inspect for faulty bearings or capacitor issues.
• Pump Doesn't Pump Properly: Check priming, rotation direction, valves, and leaf trap cleanliness.
• Water Leaks: Replace the mechanical seal if leaks occur from the drain seal plate.
• Noisy Motor: Clean the leaf trap and inspect for obstructions.

Warranty Coverage

All STORM equipment products come with a 12-month warranty covering defects in materials and workmanship. This warranty does not include travel, installation, or labor costs related to removal and reinstallation. Additionally, electrical components are excluded from warranty unless a surge protector is installed.

Limitations and Exclusions:
The warranty applies only to defects arising from normal use. Damages resulting from ...
