Product Description
The Speck Pump Badu Combi 3 Solar Smart Aquaswim 3 is a state-of-the-art, solar-powered pool filtration system designed for pools up to 80,000 liters. This pre-fabricated unit combines the powerful BADU Solar Smart DC self-priming pool pump with the reliable AQUASWIM sand filter, offering high-performance filtration with energy efficiency. The system comes with a durable, three-piece housing and a DC breaker, making it ready to install straight out of the box.

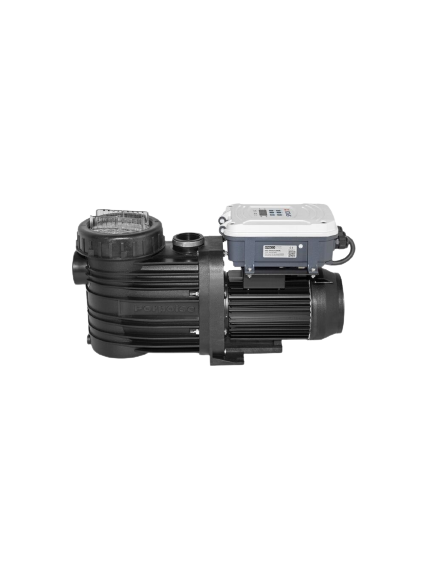

The BADU Solar Smart DC pool pump is renowned for its superior materials, durability, and functionality, featuring a permanent magnet brushless DC motor with variable speed control for optimized efficiency. Powered directly by solar energy, this pump is equipped with an MPPT (Maximum Power Point Tracking) feature to maximize energy use from photovoltaic (PV) panels.
The AQUASWIM sand filter is designed for easy operation and maintenance, built with a robust one-piece molded polyethylene tank and a smooth-operating multiport valve for seamless control. The system's dual power capability allows it to be used with solar energy or conventional AC power.
Both the pump and the filter are factory-tested for reliability and come with 24-month and 60-month ex-factory warranties, respectively, ensuring long-term peace of mind.
Key Features
BADU Solar Smart DC Pool Pump
- High Performance: Equivalent output to a normal AC pump with greater energy efficiency.
- Dual Power Capability: Can operate with direct photovoltaic (PV) power or AC power.
- User-Friendly Control: Integrated control panel with variable speed drive for optimized performance.
- Permanent Magnet Brushless DC Motor: Ensures quiet operation and low energy consumption.
- Built-In MPPT Technology: Maximizes energy output from solar panels.
- Temperature and Voltage Protection: Designed to withstand high temperatures and voltage fluctuations, as well as freezing conditions.
AQUASWIM Sand Filter
- Non-Corrosive Components: Built with high-flow ABS internal parts for durability.
- Automatic Air Relief: Ensures optimal filtration performance.
- Easy Operation: Side-mounted multiport valve for smooth operation and quick feature selection.
- Strong Polyethylene Tank: Seamless one-piece construction for strength and longevity.
- Long Warranty: 60-month ex-factory warranty on the filter ensures lasting durability.
Specifications
| Item | Value | Unit |
|---|
| Pool Size | Up to 80,000 | Liters |
| Motor Speed | 2850 | RPM |
| Max. Water Temperature | 60 | °C |
| Max. Casing Pressure | 2.5 | Bar |
| Operating Max Ambient Temperature | 55 | °C |
| Nominal Voltage of Motor | 72 | VDC |
| Voltage Range of Motor | 60-150 | VDC |
| Motor Output Power | 1.0 | 750 |
| Maximum Power at Motor Input | 930 | W |
| Maximum Motor Current | 15 | A |
| Insulation Class | F155 | - |
Typical Applications
- Swimming Pools: Ideal for pools up to 80,000 liters, providing efficient filtration and water circulation.
- Solar-Powered Filtration: Designed to work with direct solar power, reducing energy costs and environmental impact.
Advantages
- Energy Efficient: Solar-powered operation reduces electricity costs.
- Durable Construction: High-quality components ensure long-lasting performance.
- Easy to Install and Operate: Comes pre-fabricated and ready to install with user-friendly controls.
- Reliable Filtration: The AQUASWIM sand filter provides strong, effective filtration that's easy to maintain.
Warranty
- BADU Solar Smart Pump: 24-month ex-factory warranty.
- AQUASWIM Filter: 60-month ex-factory warranty.
