POOL PUMP AND MOTOR 0.75kw SPECK BADU PORPOISE
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

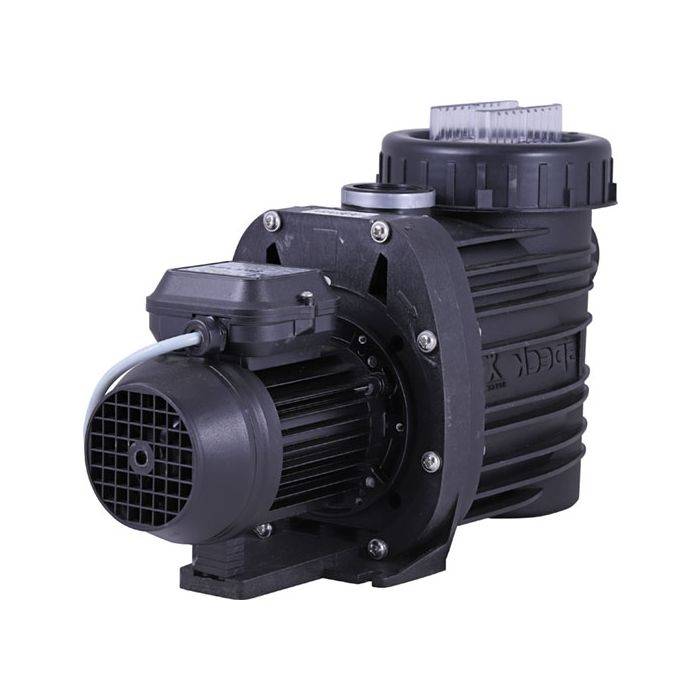

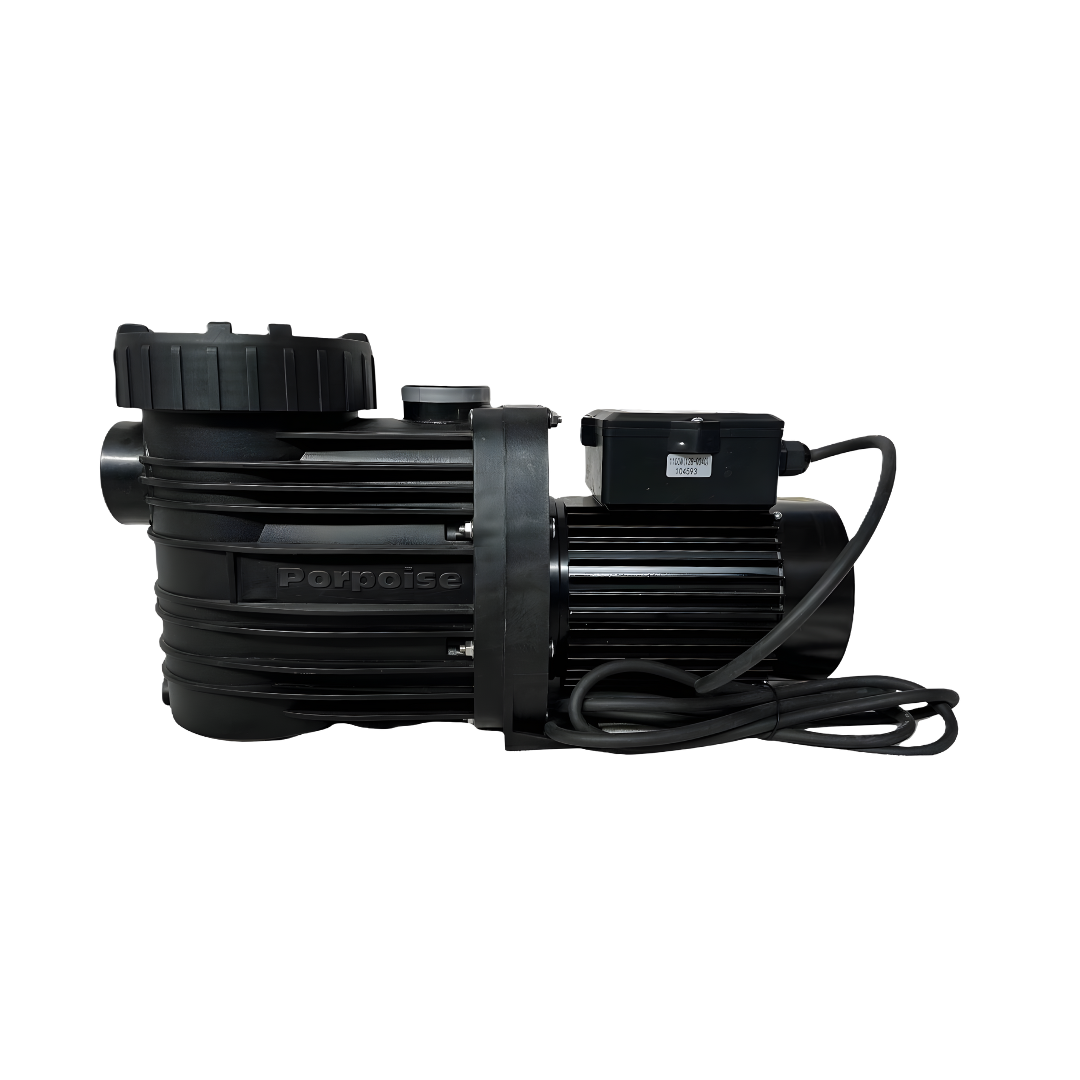

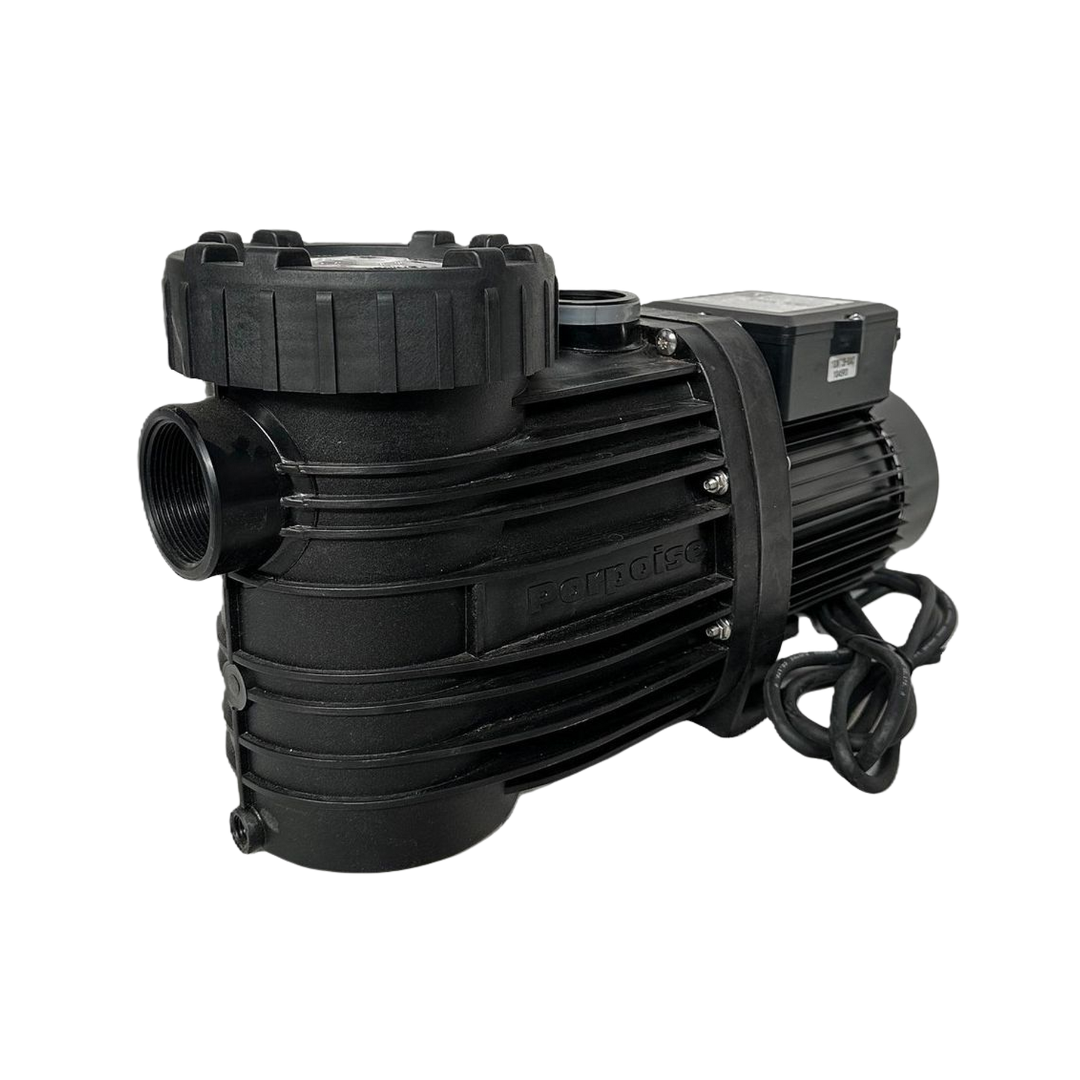

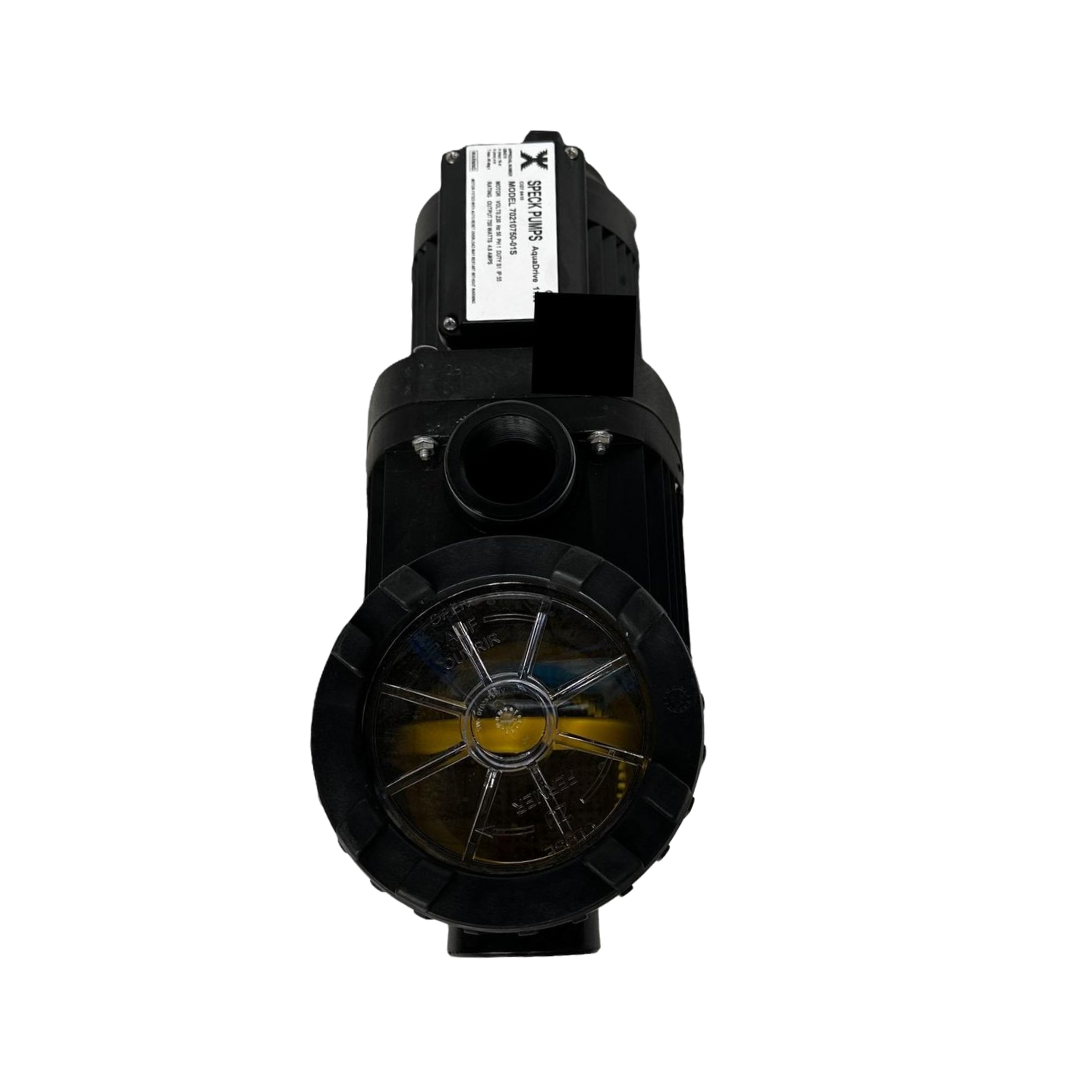

POOL PUMP AND MOTOR 0.75kw SPECK BADU® PORPOISE
Product Description:
Discover the power and precision of the SPECK BADU® Porpoise 0.75kW pump, a product that exemplifies top-tier German engineering. This self-priming circulation pump is versatile in its compatibility, making it suitable for AQUAMAX/AQUAFLO, EARTHeCO, SPECK, and QUALITY 3 bag sand filters.
Crafted for pools of up to 60,000 liters, the BADU Porpoise Pump and Motor 0.75kW is optimally paired with a 3-bag sand filter. Designed for convenience and flexibility, it can be installed either above or below ground level, while ensuring placement on a flat, non-flooding surface. For a safe and effective installation, consider hiring a pool professional or qualified electrician.
The BADU Porpoise series by Speck Pumps embodies a blend of cutting-edge material technology and innovative design. It is a testament to energy efficiency, promising both performance and reliability.
When selecting a pool pump, size matters, and bigger isn't always optimal. Over-sized pumps can compromise filtration, and in some cases, may even damage the pool's filter or heater. It's crucial to be well-acquainted with your pool's size and any supplementary equipment to determine the right pump capacity. A pool with added features may necessitate a more potent pump.
Key Features:
- Quality Material: The pump casing and inner components are crafted from Polypropylene.
- German Excellence: A combination of German engineering and design ensures unparalleled efficiency.
- Eco-friendly: All plastic components are 100% recyclable.
- Durability: Features a temperature stability of up to 60C and total electric separation.
- Mechanical Seal: German-designed seal uses carbon to ceramic sealing surfaces.
- Easy Maintenance: The pump is user-friendly, allowing for effortless servicing.
- Lid Design: A new 2-part easy screw-on/off lid system.
- Sturdy Build: Features a Stainless Steel shaft.
- Variety: Available in three sizes for various pool requirements.
- Warranty: Comes with a 36-month ex-factory warranty under standard operating conditions from the purchase date.
Product Specifications:
- Color: Black
- Assembled Dimensions: 19.6 x 51.3 x 30 cm
- Voltage: 1-230V
- Power Input P1: 0.67kW (for 0.75kW model)
- Power Output P2: 0.75kW (for 0.75kW model)
- Inlet/Outlet Connection: 50/40
- Inlet/Outlet Pipe: 50/50 PVC-pipe
- Rated Current: 3.10A (for 0.75kW model)
- Motor Speed: Approximately 2840 rpm
- Max. Water Temperature: 60C
- Max. Casing Pressure: 2.5 bar
What's Included:
- Speck 0.75kW BADU Porpoise 16 Self-Priming Swimming Pool Pump
- Operation Manual
- Warranty Card
Additional Models:
BADU® Porpoise 10:
- Power Output P2: 0.45kW
- Power Input P1: 0.67kW
- Rated Current: 3.10A
BADU® Porpoise 22:
- Power Output P2: 1.10kW
- Power Input P1: 1.50kW
- Rated Current: 6.30A
To get the best performance and longevity out of your pool pump, always adhere to the guidelines provided. Remember, selecting the correct pump is pivotal to the health and functionality of your poo
INSTALLATION INSTRUCTIONS
We recommend that the pump is installed by a qualified pool professional or electrician.
A good installation of your pool pump will result in many years of trouble-free operation. Careful attention must be paid to the following:
1. Piping: The suction and discharge pipes must not be smaller in diameter than the pump connection i.e., Suction pipe diameter 50mm minimum (recommended 63mm), outlet pipe diameter 50mm minimum. Suitable unions should be used on the pump connections or placed in the lines adjacent to the pump connections in case the pump needs to be removed at any time. Do not support the pipework on the pump or vice versa. Make sure all pipe connections are completely water/airtight by using a suitable pipe jointing compound. Keep suction pipe as short as possible and only use pipes that are sufficiently rated to work at a minimum of 4 bar pressure. The suction line should enter the pump straight and horizontally for a length of at least 4 x the diameter of the pipe. The pump is a self-priming pump, which can be installed above or below water level, if you choose to go below, be sure to connect a control valve on your suction pipe between the pool weir/skimmer and the pump, which will prevent your pump being flooded when you open the lid to clean the pump leaf basket. Do not over tighten fittings into the inlet and outlet of the pump. Position pump on a flat level surface not exposed to flooding, as the pump motor is not waterproof.
2. Pump Positioning: (Important for motor cooling): We recommend that the pump be positioned at a level of no more than 300mm above your pool water level. Again, we stress the fact to keep the suction line as short as possible. A minimum clearance of 150mm must be allowed behind the motor fan cowling to the nearest obstruction to ensure proper air ventilation and easy access for servicing. The pump house/box must also have provision for adequate drainage facilities.
3. Ventilation: As the electric motor is fan cooled, sufficient ventilation must be allowed at all times during operation. Failure to do this will cause overheating resulting in premature bearing failure and/or motor burnout. If your pump house/box does not have ventilation holes the lid or door should be left open during operation of the pump.
4. Drainage: Flooding of the electric motor is the most common cause of motor failure. It is essential that adequate drainage be provided in the pump house/box. If the motor fails as a result of flooding, then there is no warranty whatsoever irrespective of how the water penetrated the motor. The pump must be protected from rain and flooding.
5. Electric Connections: These must be carried out by suitably qualified people only. Do not change the m...
