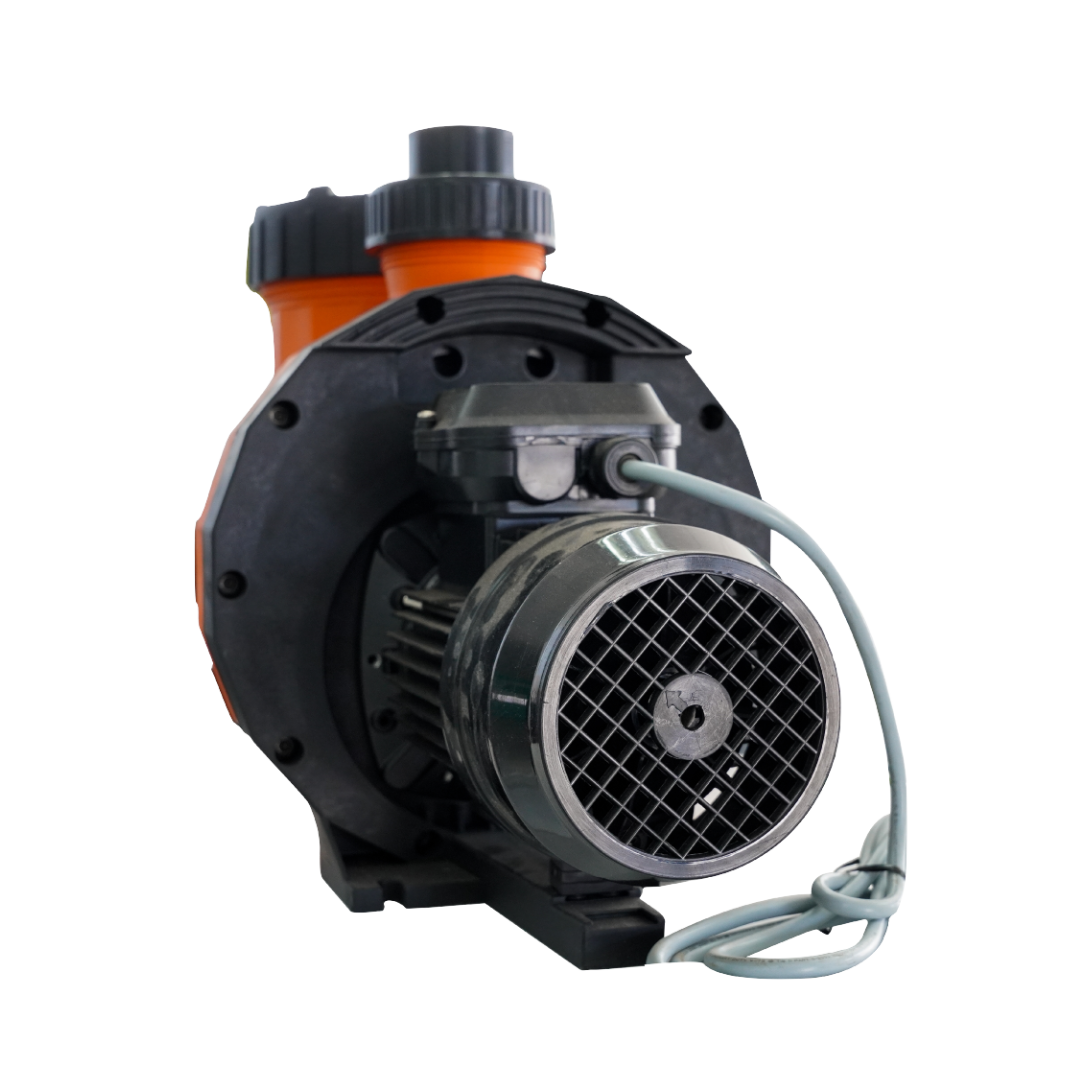

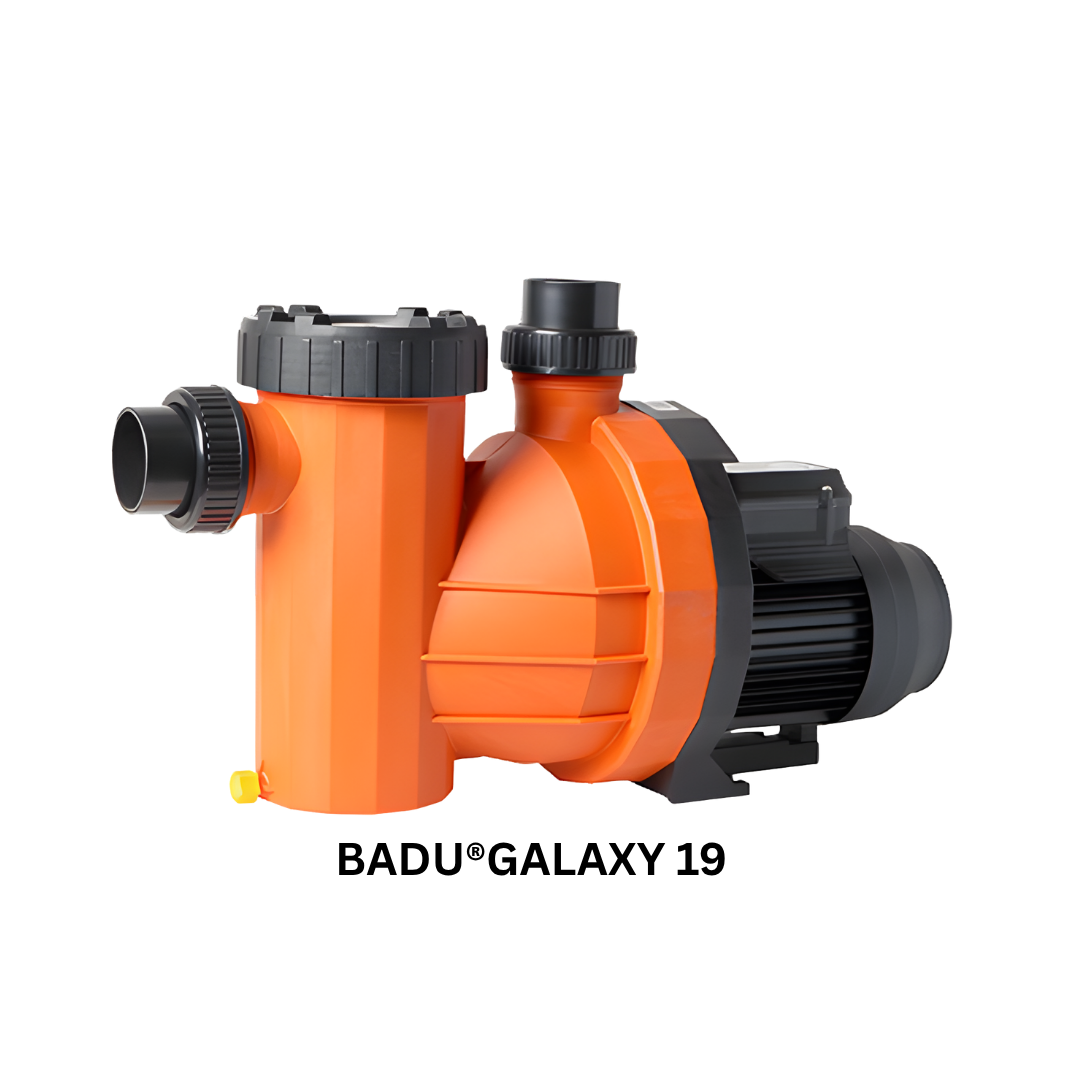

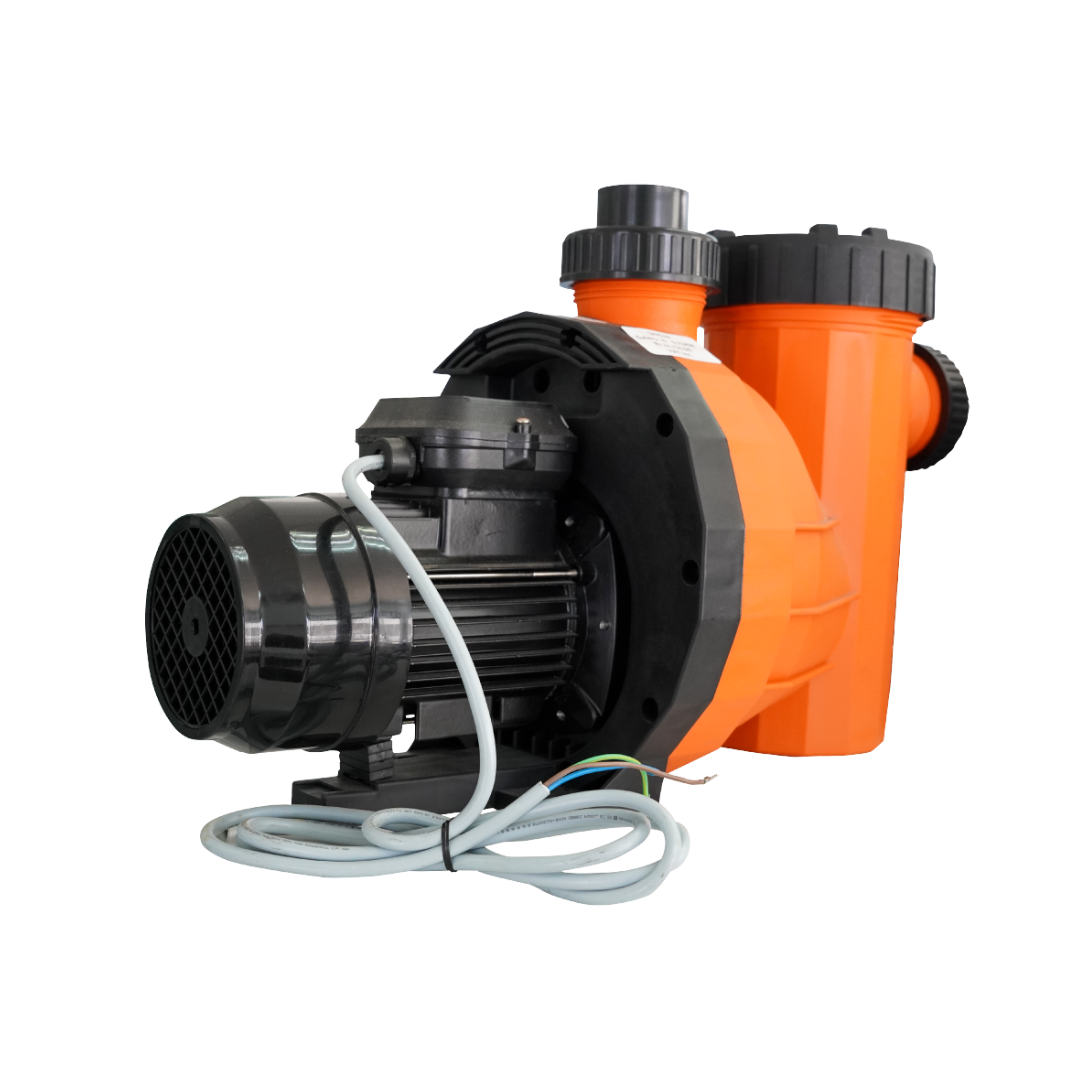

The SPECK BADU Galaxy 19 1.1 kW pool pump and motor is engineered for reliability, efficiency, and performance in large domestic pool setups. With self-priming capability and German design ethos, it is suited for installations up to 3 m above or below water levelprovided the base is flat and non-flooding. It's optimized for pools of up to 90,000 litres and pairs seamlessly with filtration systems such as UNI, Storm 3-bag filters, or 4/5-bag filters from Aqua Max, Aqua Flo, EartheCo, SPECK, or QUALITY.
Constructed entirely from recyclable plastic materials, the Galaxy 19 features an extra-large leaf strainer basket to reduce maintenance frequency, and a two-part screw lid for convenient access. The pump operates efficiently at motor speeds of 2,840 rpm, handles water temperatures up to 60 °C, and withstands casing pressures up to 2.5 bar.
Installation guidelines stipulate use of at least 63 mm suction piping for 1.1 kW models (50 mm minimum outlet), with unions and rated pipes. The pump should not be mounted more than ±300 mm above water level, and must allow at least 150 mm of clearance behind the motor for cooling. Proper drainage and ventilation are essential to prevent damage.
Regular maintenance includes leaf basket cleaning, annual O-ring replacement, monitoring filter pressure, and avoiding dry running or closed valves. Warranty coverage extends 48 months (4 years) from manufacture, contingent on compliance with installation and operating instructions.
FAQ;s
What pool size is the Galaxy 19 1.1 kW pump best suited for?
It's intended for swimming pools with volumes up to 90,000 litres.
Which filter types can this pump support?
It works with UNI and Storm 3-bag sand filters, and 4/5-bag filters from Aqua Max, Aqua Flo, EartheCo, SPECK, or QUALITY.
Can I install the pump above or below water level?
Yesthis pump supports installations up to 3 m above or below the water level if mounted correctly.
What piping sizes are needed for suction and discharge?
For 1.1 kW models, a 63 mm suction pipe is recommended; outlet diameter should be 50 mm minimum.
How far above the pool water can the pump be mounted?
It should not exceed ± 300 mm above the pool water line.
Why is clearance behind the motor required?
At least 150 mm of space behind the motor ensures adequate ventilation and access for servicing.
Will flood damage void the warranty?
Yesany damage caused by flooding or water ingress into the motor will void the warranty.
Key Features & Benefits
Powers pools up to 90,000 L
Self-priming design supports flexible installation
100 % recyclable plastic construction
Extra-large leaf strainer basket reduces cleaning needs
Screw-on/off lid simplifies access
Efficient 2,840 rpm motor performance
Handles up to 60 °C water and 2.5 bar pressure
Backed by a 4-year warranty
Technical Specifications
Brand / Model: SPECK BADU Galaxy 19
Power Output: 1.10 kW
Motor Speed: 2,840 rpm
Voltage: 220 V
Max Water Temperature: 60 °C
Max Casing Pressure: 2.5 bar
Dimensions: 365 × 611 × 274 mm
Weight: 15.46 kg
Warranty: 4 years (ex-factory)
Compatible Pool Size: ~ 60,00090,000 L
Conclusion
If your pool demands power, durability, and smart design, the SPECK BADU Galaxy 19 1.1 kW stands as an excellent investment. Combining recyclable materials, German engineering, and flexible installations, this pump is tailored for serious pool systems. Maintain it correctly and enjoy dependable circulation, low maintenance, and long-term warranty support.
