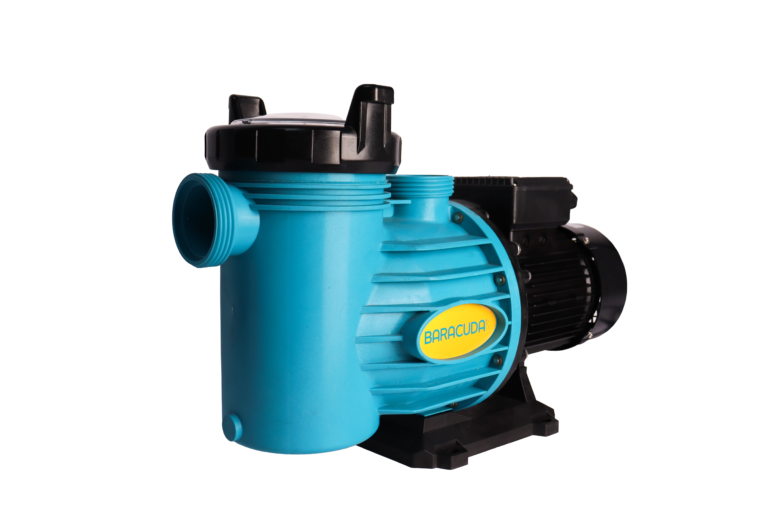

POOL PUMP AND MOTOR BARACUDA TITAN 2 SS 0.55KW
Overview:
The Baracuda Titan 2 SS 0.55kW stands out as an epitome of efficient pool maintenance. Specifically designed for the demands of modern pools, this single-speed pump ensures consistent and reliable performance while being incredibly user-friendly and economical.
Key Features:
- Economical Operation: The Baracuda Titan 2 SS 0.55kW is built with state-of-the-art IE2 high-efficiency electrical motors, which not only reduce power consumption but also provide substantial savings on electricity bills.
- Optimal Filtration for Medium Pools: This model is tailor-made for pools with a volume of up to 35,000L, working in tandem with a 2-bag sand filter (2x 40kg bags of sand) to ensure crystal-clear water.
- User-Centric Design:
- Easy Maintenance: Equipped with an easy-to-clean debris basket.
- Quiet Operation: Ensures tranquillity around your pool area.
- Simple Installation: Get your pump up and running without any hassle.
- Energy Savings: Advanced design ensures optimal performance with reduced power consumption.
- Reliable Warranty: A 3-year warranty offers peace of mind, testifying to the product's quality and durability.
Key Benefits:
- High-Efficiency Motors: Cutting-edge IE2 electrical motors deliver peak performance while ensuring minimal electricity usage.
- Savings on Your Bill: The pump's efficient design translates to noticeable reductions in your power bills.
- Versatility: Ideal for both in-ground and above-ground residential pools, leisure spas, solar pool heating, and water features.
Why Choose the Baracuda Titan 2 SS 0.55kW?
- Optimized Filtration: With its capacity, it ensures faster water circulation and efficient filtration for medium-sized pools.
- Economic Operation: Reduced operational costs thanks to its energy-efficient design.
- Durable & Reliable: Features like a spacious pump basket, easy-opening screw lid, and a robust 3/4" 6-bar ceramic shaft seal vouch for its longevity and reliability.
- Seamless Integration: Its compatibility with a 2-bag sand filter ensures optimal water clarity.
Recommended Specifications:
| Model No. | TITAN 2 SS 0.55kW 230V 80F |
|---|
| HP (Horsepower) | 3/4 HP |
| Voltage (V) | 230 |
| Output kW | 0.55 |
| Pool Volume | Up to 35,000L |
| Sand Filter | 2-bag (2x 40kg bags of sand) |
For a hassle-free and efficient pool maintenance experience, make the Baracuda Titan 2 SS 0.55kW your first choice.
Model Specifications:
| Model No. | TITAN 2 PUMP 0.37kW 230V 80F | TITAN 2 PUMP 0.55kW 230V 80F | TITAN 2 PUMP 0.75kW 230V 80F | TITAN 2 PUMP 1.10kW 230V 80F |
|---|
| HP (Horsepower) | 1/2 HP | 3/4 HP | 1 HP | 1 1/2 HP |
| Voltage (V) | 230 | 230 | 230 | 230 |
| Output kW | 0.37 | 0.55 | 0.75 | 1.10 |
Ensure the health of your pool and your wallet with the Baracuda Titan 2 SS.
Baracuda Titan 2 SS Pump More Info
Installation Instructions:
We recommend that the pump is installed by a qualified pool professional or electrician.
A good installation of your pool pump will result in many years of trouble-free operation. Careful attention must be paid to the following:
1. Piping: The suction and discharge pipes must not be smaller in diameter than the pump connection i.e., Suction pipe diameter 50mm minimum (recommended 63mm), outlet pipe diameter 50mm minimum. Suitable unions should be used on the pump connections or placed in the lines adjacent to the pump connections in case the pump needs to be removed at any time. Do not support the pipework on the pump or vice versa. Make sure all pipe connections are completely water/airtight by using a suitable pipe jointing compound. Keep suction pipe as short as possible and only use pipes that are sufficiently rated to work at a minimum of 4 bar pressure. The suction line should enter the pump straight and horizontally for a length of at least 4 x the diameter of the pipe. The pump is a self-priming pump, which can be installed above or below water level, if you choose to go below, be sure to connect a control valve on your suction pipe between the pool weir/skimmer and the pump, which will prevent your pump being flooded when you open the lid to clean the pump leaf basket. Do not over tighten fittings into the inlet and outlet of the pump. Position pump on a flat level surface not exposed to flooding, as the pump motor is not waterproof.
2. Pump Positioning: (Important for motor cooling): We recommend that the pump be positioned at a level of no more than ± 300mm above your pool water level. Again, we stress the fact to keep the suction line as short as possible. A minimum clearance of 150mm must be allowed behind the motor fan cowling to the nearest obstruction to ensure proper air ventilation and easy access for servicing. The pump house/box must also have provision for adequate drainage facilities.
3. Ventilation: As the electric motor is fan cooled, sufficient ventilation must be allowed at all times during operation. Failure to do this will cause overheating resulting in premature bearing failure and/or motor burnout. If your pump house/box does not have ventilation holes the lid or door should be left open during operation of the pump.
4. Drainage: Flooding of the electric motor is the most common cause of motor failure. It is essential that adequate drainage be provided in the pump house/box. If the motor fails as a result of flooding, then there is no warranty whatsoever irrespective of how the water penetrated the motor. The pump must be protected from rain and flooding.
5. Electric Connections: These must be carried out by suitably qualified people only. Do not change the motor position as it is provided with a drain hole at the bottom to drain off any water which may leak past the mechanical shaft seal. A cable gland must be fitted to the terminal box. NOTE: The length of cable supplied with the pump is for testing only and should be replaced with suitably rated cable. Minimum specification 60245IEC66 (HO7RN-F).
6. Rotation: Before checking the rotation, drain the pump leaf trap of wat...
