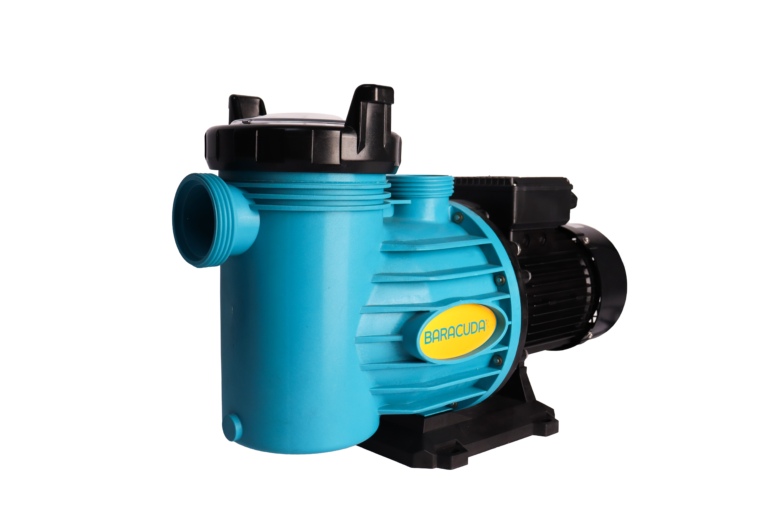

POOL PUMP AND MOTOR BARACUDA TITAN 2 SS 0.75KW

Overview:

When it comes to maintaining the pristine condition of larger pools, the Baracuda Titan 2 SS 0.75kW emerges as the top contender. This single-speed pump is designed to cater to modern pools that require high-efficiency and a seamless experience.

Key Features:

1. Economical Operation: The Baracuda Titan 2 SS 0.75kW harnesses the power of the latest IE2 high-efficiency electrical motors. These motors ensure reduced power consumption, leading to significant savings on electricity bills.
2. Optimal Filtration for Larger Pools: This pump is engineered for pools with a volume of up to 60,000L. It pairs perfectly with a 3-bag sand filter (3x 40kg bags of sand), ensuring your pool remains spotless.
3. User-Centric Design:
   • Easy Maintenance: Features an uncomplicated-to-clean debris basket.
   • Quiet Operation: Allows for a peaceful poolside ambiance.
   • Effortless Installation: Set up your pump with minimal fuss.
4. Energy Savings: Its advanced engineering promotes optimal performance with decreased electricity usage.
5. Reliable Warranty: Comes with a 3-year warranty, assuring you of its quality and long-lasting performance.

Key Benefits:

• High-Efficiency Motors: The state-of-the-art IE2 electrical motors provide top-tier performance while being energy efficient.
• Reduced Utility Bills: Experience notable cost savings on your electricity bills due to the pump's efficient functionality.
• Versatility: Suitable for in-ground and above-ground pools, leisure spas, solar pool heating, and water features.

Why Choose the Baracuda Titan 2 SS 0.75kW?

• Exceptional Filtration: Given its capacity, the pump guarantees swift water circulation and top-notch filtration for larger pools.
• Economic and Sustainable Operation: Ensures decreased operational costs with its energy-efficient design.
• Built to Last: Features like a spacious pump basket, user-friendly screw lid, and a sturdy 3/4" 6-bar ceramic shaft seal highlight its durability.
• Perfect Match: Complements a 3-bag sand filter, ensuring your pool water remains crystal clear.

Recommended Specifications:

For superior, efficient, and reliable pool maintenance, the Baracuda Titan 2 SS 0.75kW is your go-to choice.

Model Specifications:

Ensure the health of your pool and your wallet with the Baracuda Titan 2 SS.

Baracuda Titan 2 SS Pump More Info

Installation Instructions:

We recommend that the pump is installed by a qualified pool professional or electrician.

A good installation of your pool pump will result in many years of trouble-free operation. Careful attention must be paid to the following:
1. Piping: The suction and discharge pipes must not be smaller in diameter than the pump connection i.e., Suction pipe diameter 50mm minimum (recommended 63mm), outlet pipe diameter 50mm minimum. Suitable unions should be used on the pump connections or placed in the lines adjacent to the pump connections in case the pump needs to be removed at any time. Do not support the pipework on the pump or vice versa. Make sure all pipe connections are completely water/airtight by using a suitable pipe jointing compound. Keep suction pipe as short as possible and only use pipes that are sufficiently rated to work at a minimum of 4 bar pressure. The suction line should enter the pump straight and horizontally for a length of at least 4 x the diameter of the pipe. The pump is a self-priming pump, which can be installed above or below water level, if you choose to go below, be sure to connect a control valve on your suction pipe between the pool weir/skimmer and the pump, which will prevent your pump being flooded when you open the lid to clean the pump leaf basket. Do not over tighten fittings into the inlet and outlet of the pump. Position pump on a flat level surface not exposed to flooding, as the pump motor is not waterproof.

2. Pump Positioning: (Important for motor cooling): We recommend that the pump be positioned at a level of no more than 300mm above your pool water level. Again, we stress the fact to keep the suction line as short as possible. A minimum clearance of 150mm must be allowed behind the motor fan cowling to the nearest obstruction to ensure proper air ventilation and easy access for servicing. The pump house/box must also have provision for adequate drainage facilities.

3. Ventilation: As the electric motor is fan cooled, sufficient ventilation must be allowed at all times during operation. Failure to do this will cause overheating resulting in premature bearing failure and/or motor burnout. If your pump house/box does not have ventilation holes the lid or door should be left open during operation of the pump.

4. Drainage: Flooding of the electric motor is the most common cause of motor failure. It is essential that adequate drainage be provided in the pump house/box. If the motor fails as a result of flooding, then there is no warranty whatsoever irrespective of how the water penetrated the motor. The pump must be protected from rain and flooding.

5. Electric Connections: These must be carried out by suitably qualified people only. Do not change the motor position as it is provided with a drain hole at the bottom to drain off any water which may leak past the mechanical shaft seal. A cable gland must be fitted to the terminal box. NOTE: The length of cable supplied with the pump is for testing only and should be replaced with suitably rated cable. Minimum specification 60245IEC66 (HO7RN-F).

6. Rotation: Before checking the rotation, drain the pump leaf trap of water. The c...
