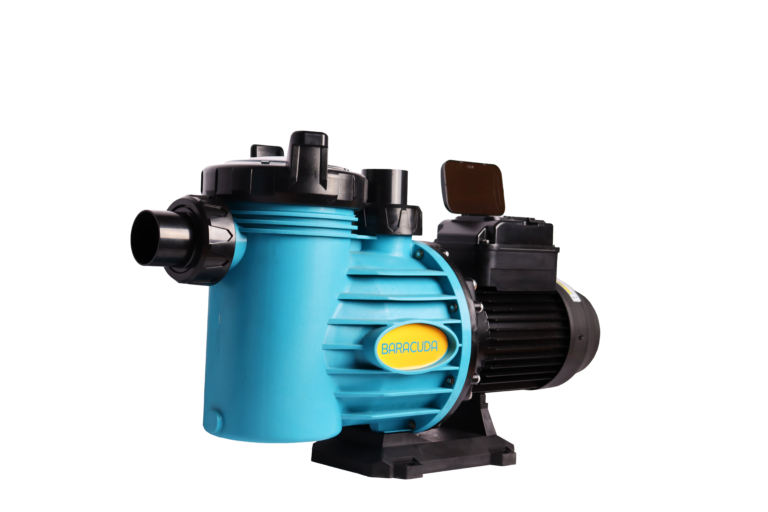

POOL PUMP AND MOTOR BARACUDA TITAN ECO 3

Overview:

Baracuda has always been a trusted name when it comes to pool maintenance, and their Titan 2 ECO 3 swimming pool pump stands as a testament to their commitment towards innovation and efficiency. Engineered with a pre-programmed variable 3-speed motor, this pool pump promises unparalleled performance with significant savings on your electricity bills.

Key Features:

1. Variable 3-Speed Motor: Equipped with a factory preset 3-speed motor controller that facilitates optimization of power consumption according to the pool's needs.
2. Economical and Efficient: The inverter motor's ability to consume less electricity at lower speeds ensures marked savings on your monthly utility bills.
3. Designed for Medium to Large Pools: Ideally suited for pools with a volume of up to 60,000L, it pairs perfectly with a 3-bag sand filter.

Key Benefits:

• Eco-Friendly and Economical: The variable speed drive motor brings substantial electricity savings.
• Convenience at Your Fingertips: Comes with an easy-to-use controller, allowing users to seamlessly toggle between speeds and set the desired flow rate.
• Robust and Durable Design:
  • Spacious Pump Basket: Facilitates extended cleaning intervals.
  • User-Friendly Access: Features an easy opening screw lid for hassle-free maintenance.
  • Enduring Shaft Seal: Comes with a resilient 3/4" 6-bar ceramic shaft seal to prolong the pump's lifespan.
• Complete Package: The pump is supplied with unions, ensuring a straightforward installation process.

Applications:

• Residential Pools and Spas: Exclusively designed for residential settings.
• Diverse Pool Types: Suitable for both in-ground and above-ground pools.
• Versatile Use: Can be effectively used for leisure spas, solar pool heating, and various water features.

Why the Baracuda Titan 2 ECO 3 Stands Out:

• Eco-Friendly Operation: With its 3-speed electrical motor, it ensures that your pool gets optimal filtration without wasting energy.
• Ease of Use: The controller's intuitive design ensures even first-time pool owners can operate it with ease.
• Extended Life: Features like the spacious pump basket and robust ceramic shaft seal ensure the pump offers a long service life.

Product Specifications:

For homeowners who prioritize efficiency and ease of use, the Baracuda Titan 2 ECO 3 swimming pool pump emerges as the undisputed choice.

Baracuda Titan 2 ECO 3 Pump Trade Presenter

Installation Instructions:

We recommend that the pump is installed by a qualified pool professional or electrician.

A good installation of your pool pump will result in many years of trouble-free operation. Careful attention must be paid to the following:
1. Piping: The suction and discharge pipes must not be smaller in diameter than the pump connection i.e., Suction pipe diameter 50mm minimum (recommended 63mm), outlet pipe diameter 50mm minimum. Suitable unions should be used on the pump connections or placed in the lines adjacent to the pump connections in case the pump needs to be removed at any time. Do not support the pipework on the pump or vice versa. Make sure all pipe connections are completely water/airtight by using a suitable pipe jointing compound. Keep suction pipe as short as possible and only use pipes that are sufficiently rated to work at a minimum of 4 bar pressure. The suction line should enter the pump straight and horizontally for a length of at least 4 x the diameter of the pipe. The pump is a self-priming pump, which can be installed above or below water level, if you choose to go below, be sure to connect a control valve on your suction pipe between the pool weir/skimmer and the pump, which will prevent your pump being flooded when you open the lid to clean the pump leaf basket. Do not over tighten fittings into the inlet and outlet of the pump. Position pump on a flat level surface not exposed to flooding, as the pump motor is not waterproof.

2. Pump Positioning: (Important for motor cooling): We recommend that the pump be positioned at a level of no more than 300mm above your pool water level. Again, we stress the fact to keep the suction line as short as possible. A minimum clearance of 150mm must be allowed behind the motor fan cowling to the nearest obstruction to ensure proper air ventilation and easy access for servicing. The pump house/box must also have provision for adequate drainage facilities.

3. Ventilation: As the electric motor is fan cooled, sufficient ventilation must be allowed at all times during operation. Failure to do this will cause overheating resulting in premature bearing failure and/or motor burnout. If your pump house/box does not have ventilation holes the lid or door should be left open during operation of the pump.

4. Drainage: Flooding of the electric motor is the most common cause of motor failure. It is essential that adequate drainage be provided in the pump house/box. If the motor fails as a result of flooding, then there is no warranty whatsoever irrespective of how the water penetrated the motor. The pump must be protected from rain and flooding.

5. Electric Connections: These must be carried out by suitably qualified people only. Do not change the motor position as it is provided with a drain hole at the bottom to drain off any water which may leak past the mechanical shaft seal. A cable gland must be fitted to the terminal box. NOTE: The length of cable supplied with the pump is for testing only and should be replaced with suitably rated cable. Minimum specification 60245IEC66 (HO7RN-F).

6. Rotation: Before checking the rotation, drain the pump leaf trap of water. The correct rotation is clockwise when viewed from the motor end. Pumps with 220-volt single phase motors are wired at the manufacturer for the correct rotation.

How to keep your pool pump in good running condition
1. Clean the leaf trap in the pump and pool weir regularly.
2. Do not allow dust to accumulate on the motor as this affects the cooling process.
3 Do not leave foreign objects lying on the motor.
4 Change the rubber 0-Ring in the lid at 1-year intervals to maintain a goo...
