POOL PUMP AQUAGEM INVERTER INVERCAPTAIN (1.8KW) DCP18
Aquagem Pool Pump Ultra Quiet, Full Inverter Efficiency for Pools 70,000100,000L (Replaces DC40)
Product Description
The Aquagem InverCaptain DCP18 1.8kW inverter pool pump is designed for larger residential swimming pools from 70 to 100m³.
It is built for pool owners who need strong circulation without the constant high running cost and noise level of a standard single speed pool pump. Instead of running at full speed all the time, the InverCaptain DCP18 uses inverter technology to adjust pump performance according to the filtration requirement.
For daily filtration, the pump can operate at a lower speed or flow setting. When stronger circulation is required, such as during backwashing or faster water turnover, the pump can increase performance. This makes it a practical choice for South African homes where electricity cost, equipment noise and filtration performance all matter.
The DCP18 is listed with a 1.8kW power rating, 43m³/h maximum flow rate, 23m maximum head, and an advised pool volume range of 70 to 100m³. At common operating head levels, it is listed at 33m³/h at 10m head and 37m³/h at 8m head. The default adjustable flow range is listed as 8 to 35m³/h, allowing the pump to be set according to the pool's hydraulic requirements.

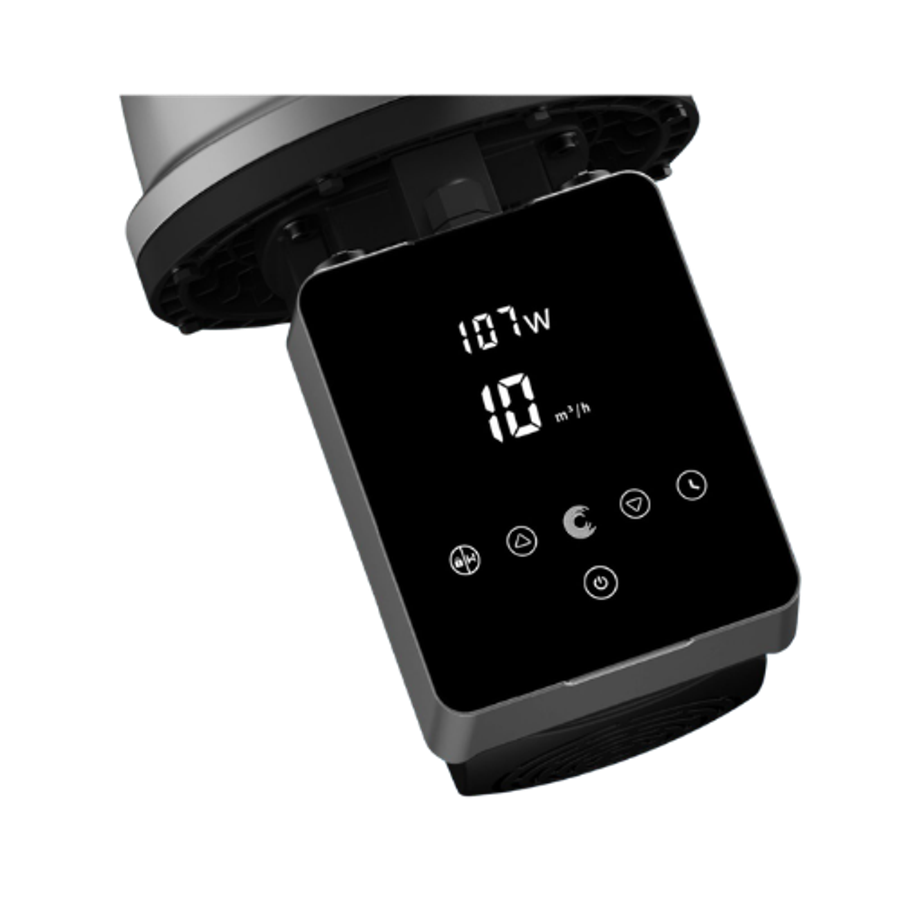

The intelligent controller displays key operating information such as power consumption, running capacity or flow, Wi-Fi status and timer settings. The pump supports Manual Inverter Mode, Auto Inverter Mode, Timer Mode, Backwash Mode, and external control options including digital input, analogue input and RS485.

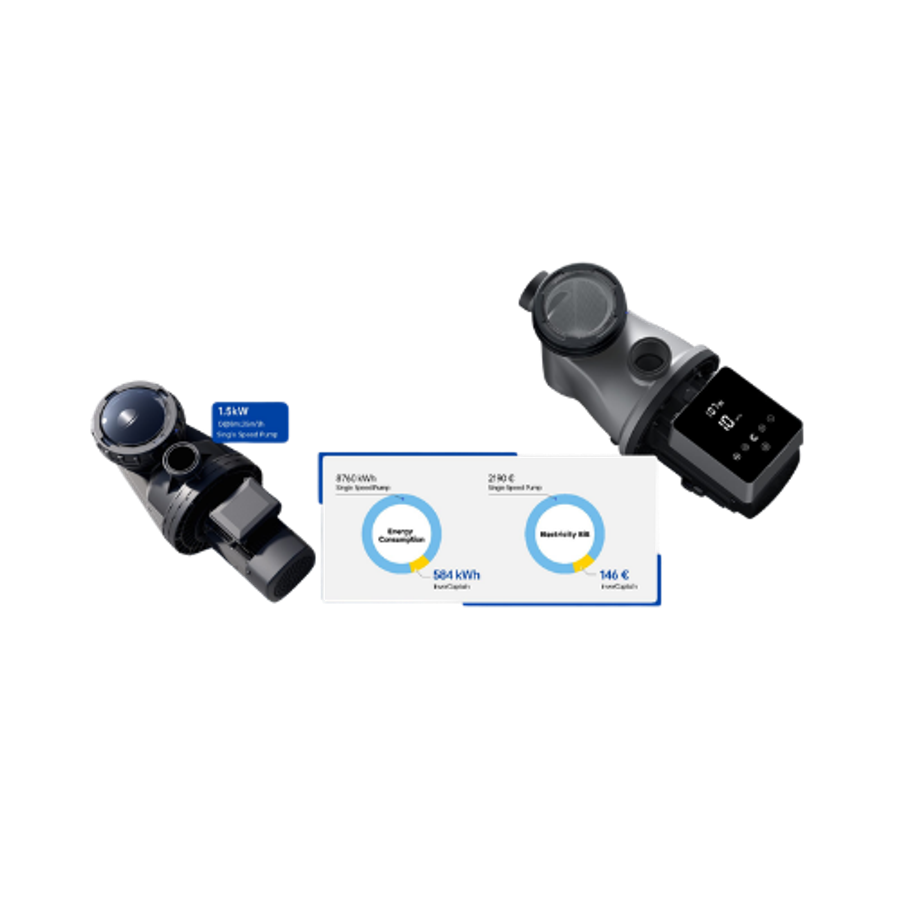

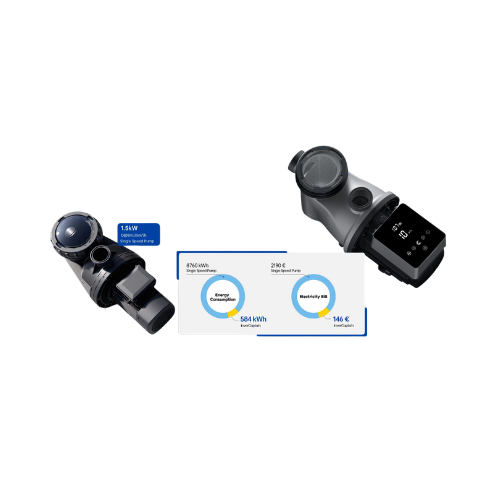

Save up to 90% in energy costs and enjoy peace and quiet with the most advanced pool pump in its class.
What Is the Aquagem InverCaptain DCP18?
The Aquagem InverCaptain DCP18 is a full inverter swimming pool pump.
It is used to circulate pool water through the filtration system, helping move water from the pool through the weir, pump, filter and return lines.
It is suitable for:
- Large residential pools from 70 to 100m³
- Pools from 70,000 to 100,000 litres
- Larger pool filtration systems
- Pool owners replacing compatible older fixed speed pumps
- Homes where electricity saving is important
- Pool owners wanting quieter pump operation
- Timer based daily filtration routines
- Pool systems that may benefit from external control options
- Professional pump and filter installations
It does not replace the pool filter, salt chlorinator, automatic pool cleaner, robotic cleaner, chemical treatment or regular water testing.
Why Choose an Inverter Pool Pump?
A traditional single speed pool pump runs at one fixed speed whenever it is switched on. This can use more electricity than necessary during normal filtration.
An inverter pool pump can operate at different speeds or flow settings. Lower settings can be used for everyday filtration, while higher settings can be used when more flow is required.
This can help with:
- Lower electricity use
- Quieter daily operation
- Less unnecessary motor strain
- Better filtration control
- More flexible pool running schedules
- Improved comfort around the pool area
Actual saving depends on pool size, plumbing, filter size, pump settings, daily runtime and electricity tariff.
Key Features and Benefits
Suitable for 70 to 100m³ Pools
The DCP18 is sized for pools from 70,000 to 100,000 litres, making it suitable for larger residential swimming pools.
1.8kW Full Inverter Motor
The 1.8kW inverter motor gives the pump the capacity needed for larger pool filtration systems.
43m³/h Maximum Flow Rate
The listed Qmax is 43m³/h, supporting strong water movement when the pool system requires it.
23m Maximum Head
The listed Hmax is 23m, helping the pump perform in systems with higher hydraulic resistance when correctly installed.
Flow at 8m and 10m Head
The DCP18 is listed at 37m³/h at 8m head and 33m³/h at 10m head.
Adjustable Flow Range
The default adjustable flow range for the DCP18 is listed as 8 to 35m³/h.
InverSilence® Technology
Aquagem's InverSilence® technology is designed to reduce pump noise and improve operating efficiency.
Quiet Operation
The InverCaptain range is listed with noise down to 36 dB(A), depending on speed and installation conditions.
Smart Touch Controller
The controller displays key operating information and allows users to manage pump modes, timers and settings.
Manual Inverter Mode
Manual mode allows the user to set the running capacity according to the pool's needs.
Auto Inverter Mode
Auto mode adjusts motor speed to reach the selected flow setting.
Timer Mode
Timer mode allows daily pump schedules to be set for controlled filtration periods.
Backwash Function
The backwash function allows the pump to run at higher capacity for sand filter cleaning or fast recirculation.
Wi-Fi Operation
The supplied manual information includes Wi-Fi operation through the compatible app setup.
External Control Options
External control support includes digital input, analogue input and RS485.
Self Priming Operation
The manual states that the pump performs self priming after installation and when restarting, depending on settings.
5 Year Manufacturer Warranty
The DCP18 is supplied with a 5 year manufacturer warranty, subject to correct installation, operation and warranty claim procedure.
FAQs
What is the Aquagem InverCaptain DCP18?
The Aquagem InverCaptain DCP18 is a 1.8kW full inverter pool pump designed for pool filtration systems serving pools from 70 to 100m³.
What pool size is the DCP18 suitable for?
It is suitable for pools from 70 to 100m³, or approximately 70,000 to...
