Portable 18650 Battery DIY Mini Spot Welders Machine Various Welding Power Supply
New
Indicative market price: R881.58
R587.72
33% OFF
Closed
1 Apr 21 11:39
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Customer ratings:
Product code
1713363
Bob Shop ID
505421048
Features:
1. Wide selection of welding power supply: lithium battery power supply or 12V car battery.
2. The controller is controlled by a single chip microcomputer, and the output pulse is accurate to ensure the welding quality.

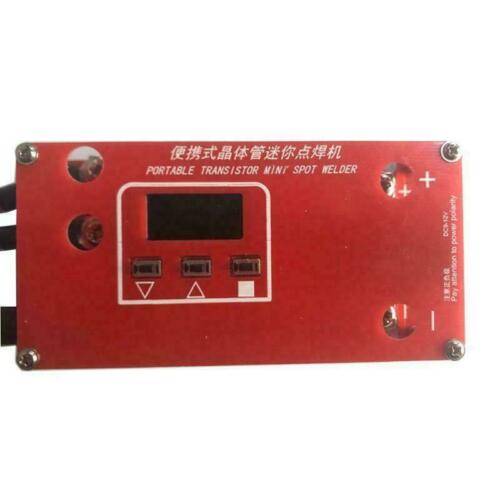

3. With LCD display screen, can display welding parameters.
4. The welding pen and the input line are connected by U-shaped cold-pressed terminals, which is convenient for disassembly and replacement.
5. Using automatic touch welding mode, while retaining the manual trigger interface, you can choose according to your own use.
6. The power board uses 2 Gusi copper to increase the overcurrent capacity.
7, using 5 300A MOS tubes, non-disassembled MOS tubes.
8. The MOS tube driver adopts the imported special chip driver. The fastest MOS tube can be hit with 20nS. The switch is fast to prevent the explosion of the tube and the non-triode push-pull drive.
9. The MOS drive design adds a transient diode to protect the MOS and prevent the explosion of the tube.
10. 10AWG multi-filament flexible wire is used for the welding pen line and the input line to increase the overcurrent capacity.
11.The controller is mainly for welding nickel-plated steel strips from 0.1mm to 0.12mm.
12. A 25V10000uF high-frequency low-resistance capacitor is added to the power input for energy compensation, which increases welding stability.
Spot Welding Machine Set only,other accessories demo in the picture is not included.
Instructions for use:

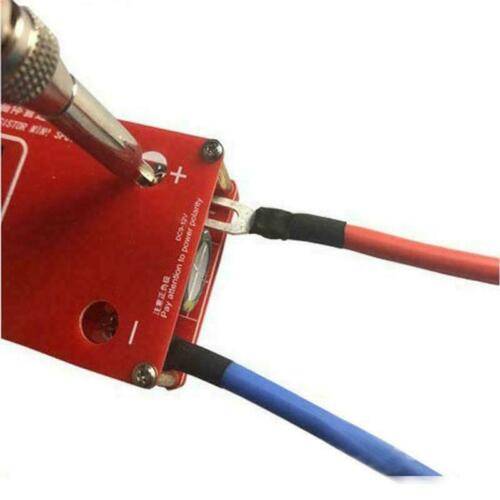

1: Power connection
The controller comes with a 20cm long 10AWG input wire. One end has been crimped with a U-shaped terminal, and the other end has not been processed. Connect the crimped U-shaped terminal to the control power input terminal, and the other end is processed according to its own power supply. Do not connect the negative electrode wrong.
2: Switch on and off
There is a power switch under the control board. After pressing, wait for 3 seconds. After the buzzer drops, the LCD lights up and the boot is complete. Press the power switch again to shut down.

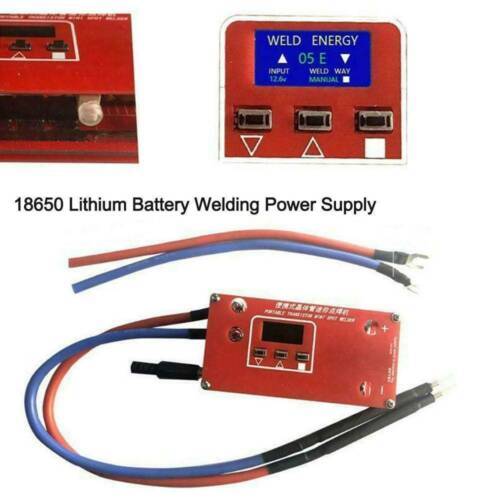

3: Screen description and parameter adjustment.
4: Welding
Keep the welding pin clean. If the welding pin is polished into a round head, the welding effect can be improved. There are manual and automatic methods.
Specification:
4: Welding
Keep the welding pin clean. If the welding pin is polished into a round head, the welding effect can be improved. There are manual and automatic methods.
Specification:
Material: Metal

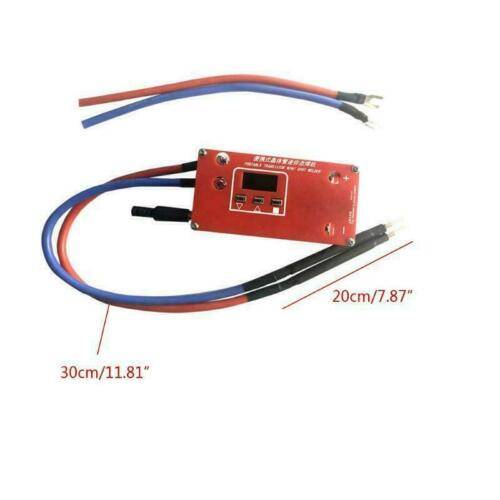

Input line length: app.20cm/7.87in
Length of welding pen: app.30cm/11.81in
Color: Red+Blue+Black
Battery: 18650 lithium battery(not included)
Quantity: 1Set

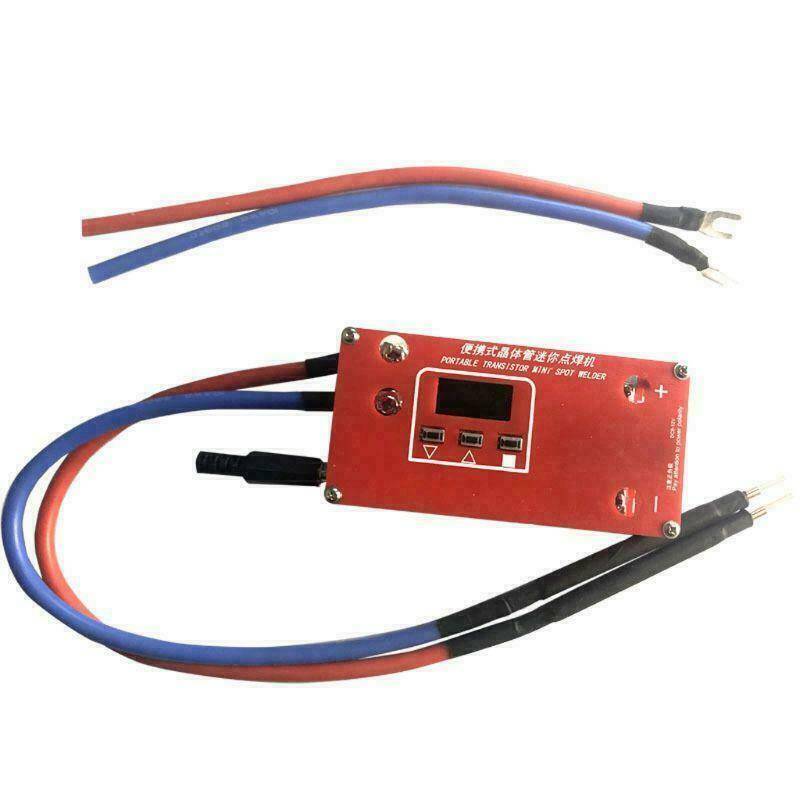

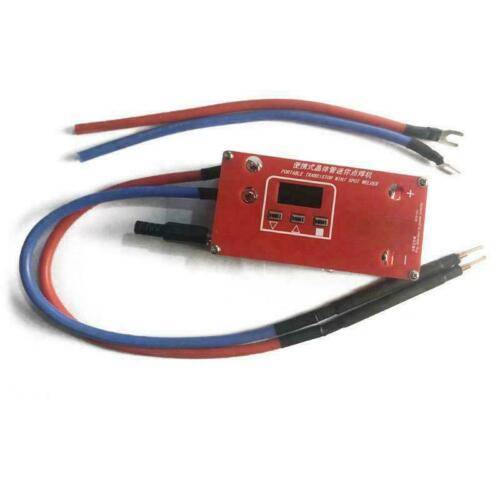

Package Included:
1 x Controller
2 x Welding pen
2 x Power input line (Red and Blue)
1 Pair x U-shaped cold-pressed terminal (used to connect to input power)
Several heat-shrinkable tubes, used to shrink the power input line
Details Pictures:
