Package weight: 0.04 kgType A:
Features:
With the housing, you can use it directly, the sensor resolution is 24*32 dot matrix.
Built-in rechargeable lithium battery, Micro USB interface, interface voltage does not exceed 5V.
The response frequency is 8Hz, the target temperature measurement range is -40~+300￢ﾄﾃ, and the use environment is 0~50￢ﾄﾃ.
The emissivity can be adjusted from 0.1 to 0.99 range.
Sensor probe field angle, default 35 degrees*55 degrees MLX90640BAB probe.

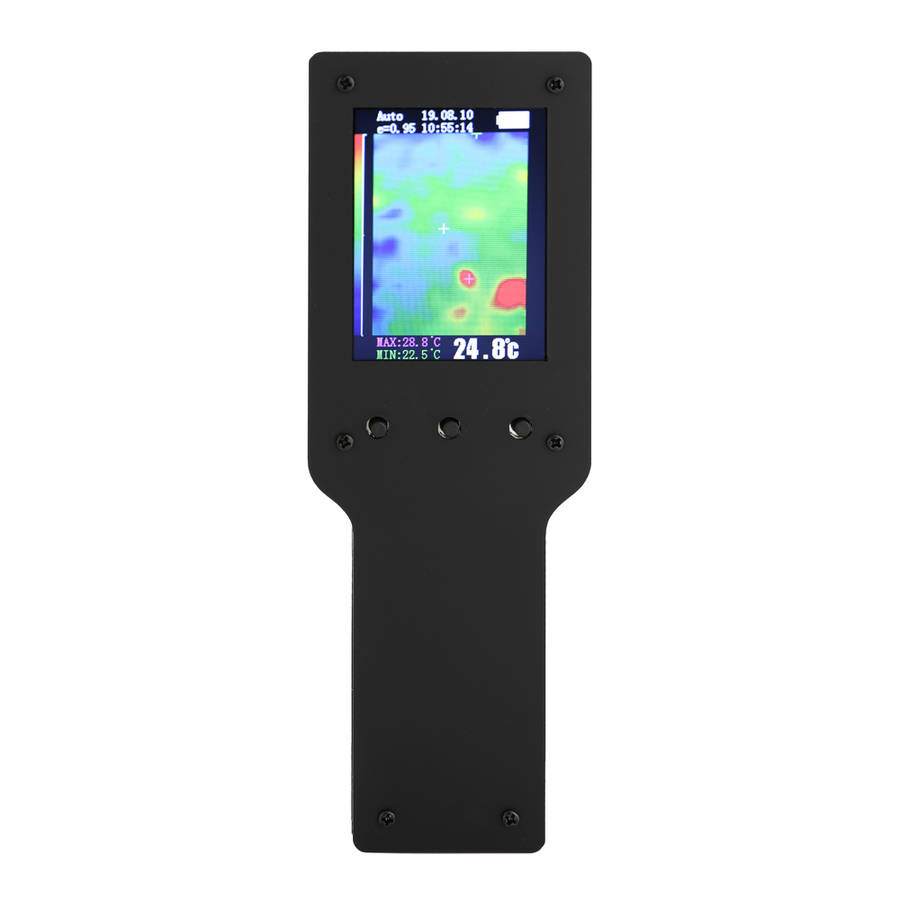

2.4 inch LCD screen resolution is 320*240, the screen shows the highest temperature, the lowest temperature, the center point temperature, displays each coordinate point.
The measurement accuracy is ±2￢ﾄﾃ.
Camera function: built-in memory, you can take 100 photos. Once the Micro USB cable is connected to the computer, you can view, copy, and delete the images on your computer.
Can be applied to human body temperature detection, PCB component heating temperature detection, floor heating temperature detection, automotive parts temperature detection, electrical switch temperature detection, air conditioning and microwave oven detection, etc.
Specification:
Material: ABS
Color: black
Display: 2.4 inch color display, 320*240
Resolution: 32*24
Field of view: 35° * 55°
Temperature measurement range: -40￢ﾄﾃ~300￢ﾄﾃ
Measurement accuracy: ±2￢ﾄﾃ
Refresh rate: 8Hz
No calibration required
Emissivity: 0.1~0.99 adjustable
Battery: 1 * lithium battery, 1000mAh (included)
Charge time: about 2 hours
Power: Micro USB 5V/1A
Working temperature: 0￢ﾄﾃ~50￢ﾄﾃ
Item size: 160 * 56 * 25mm / 6.3 * 2.2 * 1.0in
Item weight: 119g / 4.2ounce
Package size: 180 * 100 * 30mm / 7.1 * 3.9 * 1.2in
Package weight: 121g / 4.3ounce
Package Includes:
1 x Thermal Imager

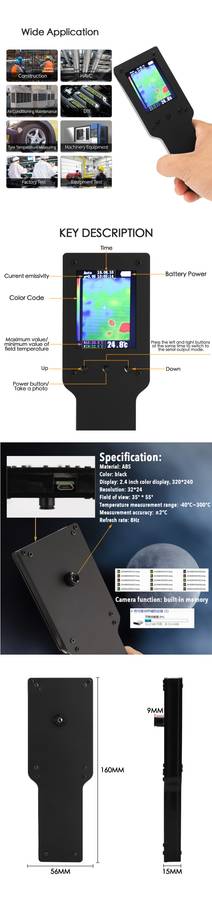

Details Pictures:
Type B:
Features:
With the housing, you can use it directly, the sensor resolution is 24*32 dot matrix.
Built-in rechargeable lithium battery, Micro USB interface, interface voltage does not exceed 5V.
The response frequency is 8Hz, the target temperature measurement range is -40~+300￢ﾄﾃ, and the use environment is 10~50￢ﾄﾃ.
The emissivity can be adjusted from 0.1 to 0.99 range.
Sensor probe field angle, default 35 degrees*55 degrees MLX90640ESF-BAB probe.
2.4 inch LCD screen resolution is 320*240, the screen shows the highest temperature, the lowest temperature, the center point temperature, displays each coordinate point.
The measurement accuracy is ±2￢ﾄﾃ.
Two color modes can be selected: iron red and rainbow.
With photo taking function, built-in memory, you can take 100 photos, without using other tools, use Micro USB cable to connect directly to the computer, you can browse, copy, delete pictures.
Can be applied to human body temperature detection, PCB component heating temperature detection, floor heating temperature detection, automotive parts temperature detection, electrical switch temperature detection, air conditioning and microwave oven detection, etc.
Specification:
Material: ABS
Color: bl
