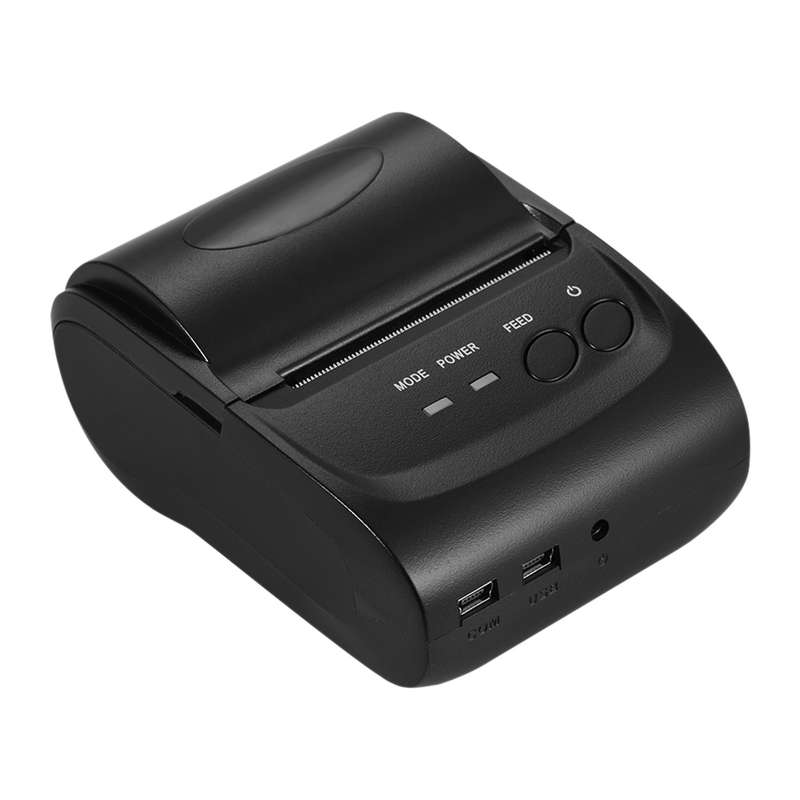

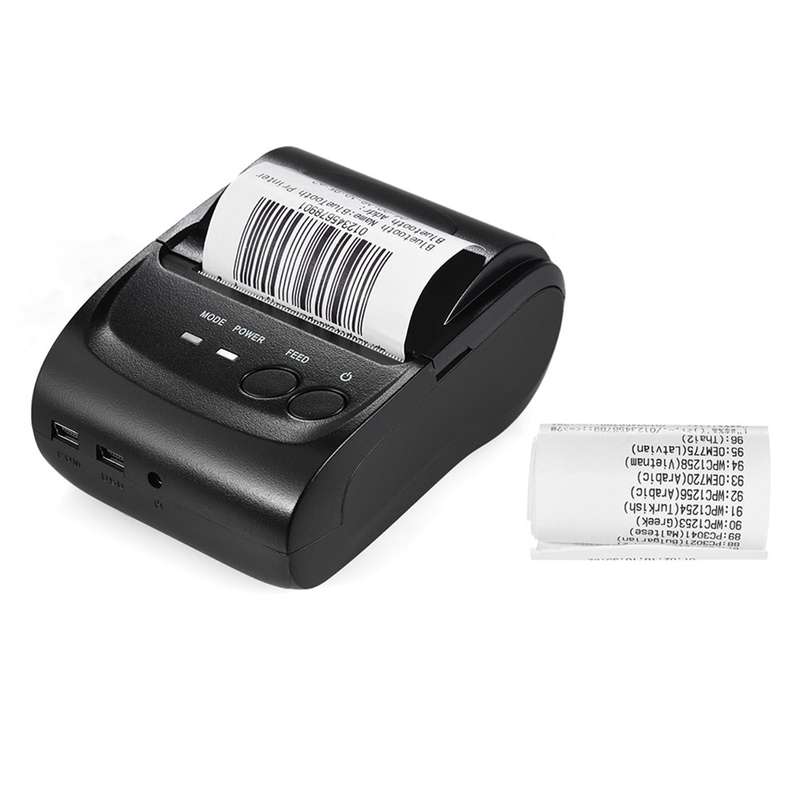

POS-5802DD portable thermal printer is widely used in fields like office, logistic system, taxi ticket, restaurant, online payment information printing. It supports 58mm width thermal paper printing, with high printing speed, clear printing & low noise. Power saving for long time use. You can connect your devices with the printer via BT 4.0 & 3.0, USB cable or serial port line.
Features:
Mini thermal printer, no need for ribbons ink cartridge, low operating cost.
Compatible for Android/iOS/Windows OS devices. Please download relative APP / driver on your device, and connect it with the printer via BT 4.0 & 3.0, USB cable or serial port line.
Speed =<90mm/sec, 203dpi resolution, high speed, clear printing, low noise.
Print 58mm wide thermal paper, max. printing width 40mm, with 100km reliability printing life.
With auto sleep, auto awake, power saving to prolong service time, standby time up to 2-3 days.
With lighting indicator showing working condition, easy to operate.
Mini size & lightweight, easy to maintain, portable to carry.
Ideal for receipt, bill, ticket printing.
Driver for Android/Windows:
https://s3-us-west-2.amazonaws.com/tomtopdownload/drive/windows/POS+Printer+Driver+Setup+.exe
For iOS DeviceﾼﾚDownload PrinterV1.0 at APP Store
Specifications:
Model: POS-5802DD
Printing Method: Direct Thermal
Speed: =<90mm/sec
Resolution: 203dpi(8dot/mm)
Paper Type: Thermal Paper
Paper Width: 58mm(+-0.1mm)
Printing Width: 40mm(384dot)
Roll Diameter: =<40mm
Reliability TPH Life: 100km
BT Version: 4.0 & 3.0
Character size: 384dots/line
Font A: 12 * 24dots, 1.5(W) * 3.0(H)mm
Font B: 9 *17dots, 1.1(W)* 2.1(H)mm
Simplified/Traditional: 24 * 24dots, 3.0(W)*3.0(H)
Extended Character: OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/OEM866/OEM852/OEM858/Iran II/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai
Print Parameters: Support to download trademark, support bar-code print.
Support Bar Code Type: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128;Two-Dimensional Cord: QR Code
Emulation: ESC/POS/STAR Command
Interface: USB/Serial/Power Port
Driver: For Win2003/Win2000/Win7/Win XP/VISTA/Win8/Win10/LINUX
Battery: 7.4V 1500mAh 11.1Wh (Included)
Plug: US / UK / EU / AU (Optional)
AC Input: 100 ~ 240V 50/60Hz 0.5A max.
Output: DC 9V/1.5A
Item Size: 10.2 * 7.8 * 4.4cm / 4 * 3.1 * 1.7in
Item Weight: 189g / 6.7oz
Package Size: 17.9 * 11.4 * 5.9cm / 7 * 4.5 * 2.3in
Package Weight: 412g / 14.5oz
Package List:
1 * Printer (With battery)
1 * Paper
1 * USB Cable
1 * Charger
1 * User Manual(English)
Note:
Remove the battery power block sticker before you use it.
