Poslab PL-260N 3-inch Thermal Receipt Printer

Poslab PL-260N 3-inch Thermal Receipt Printer

• Auto cutter
• Printing speed 260mm/s
• USB, LAN, Serial (RS-232)

Specifications

Model
PL-260N

Printing method
Direct Thermal

Printing speed
260mm/s

Paper width
79.5 + 0.5mm

Printable area
72mm (adjustable by commands)

Maximum paper diameter
80mm

Paper Thickness
0.06-0.08mm

Column capacity
576 dots/lines 512 dots/lines

Line space 3.75 mm (Changeable by commands)

Commands
Compatible with ESC/POS

Interface type

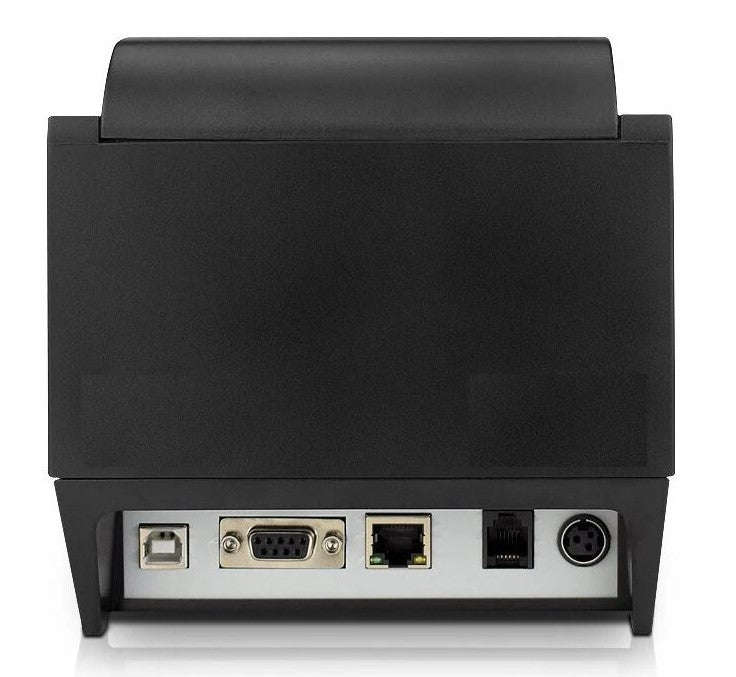

USB+Serial+Lan

Character size
ANK, Font A
12 x 24 DOTS

Font B
9 x 17 dots

Dimensions
185.7 x 140 x 134 mm (D x W x H)

Gross weight
1.025 kg

Bar code
UPC-A/UPC-E/JA (EAN13)/ JAN8 (EAN8)/ CODE39/ITF/CODABAR/CODE93/CODE128

2-dimension code
QR CODE / PDF417

Code page
PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe Greek, Hebrew, East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852 (Latin2), Pc858, Iranll, Latvian, Arabic, PT151 (1251)

Cutter
Partial

Cutter life
1.5 million cuts

Print head life
100KM

Input buffer
64 Kbytes

NV Flash
256 Kbytes

Power adaptor
AC110V/220V, 50-60Hz

Power source
DC 24V/2.5A

Cash drawer output
DC 24V/1A

Work environment
Temperature: 0-45 C, humidity: 10-80RH%

Storage environment
Temperature: 10-60 C, humidity: 10-90RH%

Operating system:
Win XP/ Win Vista/ Win 7/ Win 8/ Win 8.1/ Win 10/ Linux

What's in the box
1 x Poslab 3'' Thermal Receipt Printer
