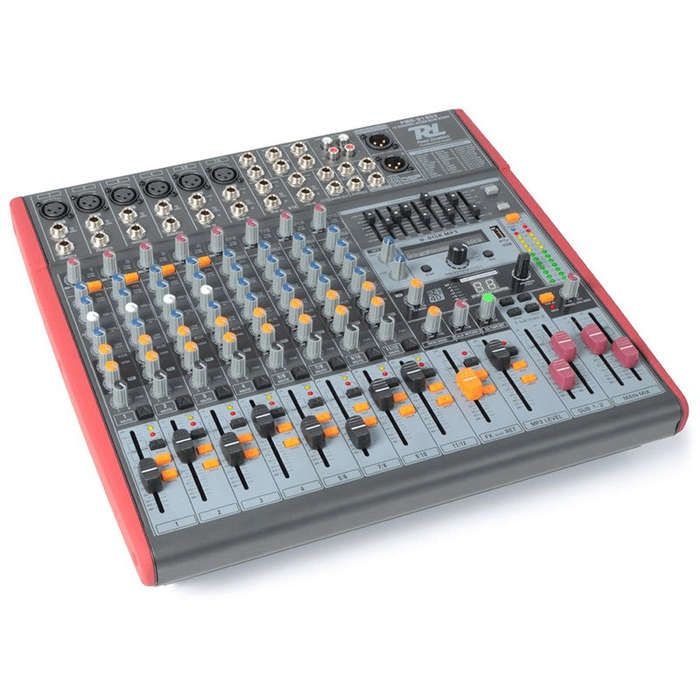

Power Dynamics PDM-S1203

The professional PDM-S1203 12-channel stage mixer is a product in a series of high-quality stage mixers. Equipped with a DSP effects processor, USB in / output for easy connection with computer for music recording, stereo 9-band equalizer, etc. Each channel has a 3-band tone control available (in stereo mode a 4-band) and a rotary knob to adjust the crossover frequency. The high level of pre-amps ensure that the sound quality is maintained and that the sound is dynamically produced optimally. Other useful features are available to create a perfect mix. This stage mixer is ideal for mobile applications, even when used intensively. Very suitable for a.o. bands, on stages and in studios.

SPECIFICATIONS:

•


  Product colour:	Black
  Playback options:	USB
  Input connections:	6.3mm Jack, RCA, USB, XLR (3-pin)
  Output connections:	6.3mm Jack, RCA, XLR (3-pin)
  DSP Resolution:	24-bit
  Frequency response:	10Hz — 45.000Hz (+/-3dB)
  THD:	<0.01%
  Equalizer:	Stereo 9-Band
  Input level: Mic:	1.5mV, 2
  Input level: Line:	150mV, 27 kOhm
  Output level: Master:	1V
  Power supply:	220-240VAC 50Hz
  Dimensions (L x W x H):	360 x 390 x 105mm
  Weight :	4.5kg
