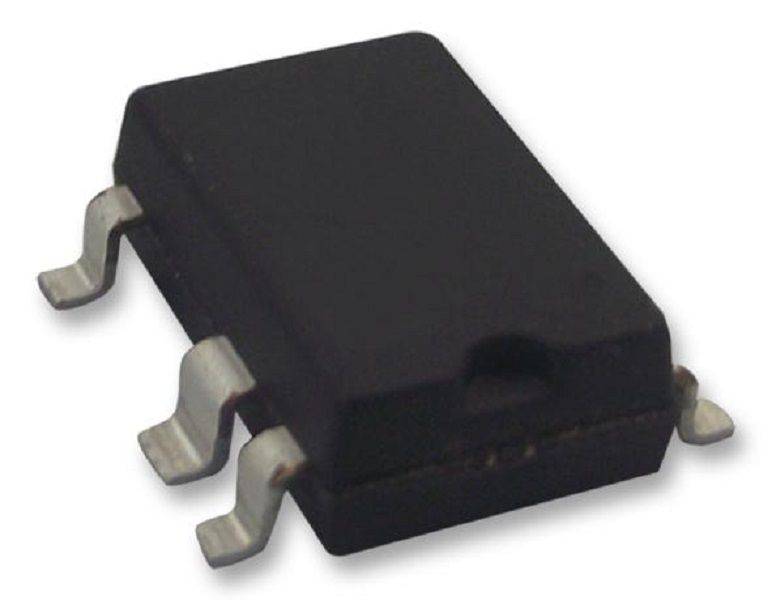

Power Integrations (TNY264GN-TL) AC/DC Converter, Flyback, 85 to 265 VAC In

AC/DC Converter, Flyback, 85 to 265 VAC In, SMD-8Product OverviewTinySwitch-II enhanced, energy efficient, low power off-line switcherintegrates a 700V power MOSFET, oscillator, high voltage switched currentsource, current limit and thermal shutdown circuitry onto a monolithic device.The start-up and operating power are derived directly from the voltage on DRAINpin, eliminating the need for a bias winding and associated circuitry. Inaddition, the TinySwitch-II devices incorporate auto-restart, line undervoltagesense, and frequency jittering. An innovative design minimizes audio frequencycomponents in the simple ON/OFF control scheme to practically eliminate audiblenoise with standard taped/varnished transformer construction. High voltagepowered-ideal for charger applications. Built-in current limit and thermalprotection improves safety and ideal for cell-phone charger and PC standbyapplications. Simple design practically eliminates rework in manufacturing.5.5W (adapter), 9W (open frame) at 230VAC ±15% and 4W (adapter), 6W (open frame)output powerReduce system cost, better cost/performance over RCC/linears, EcoSmartextremely energy efficientHigh performance at low cost, simple ON/OFF control, no loop compensation neededNo load consumption
