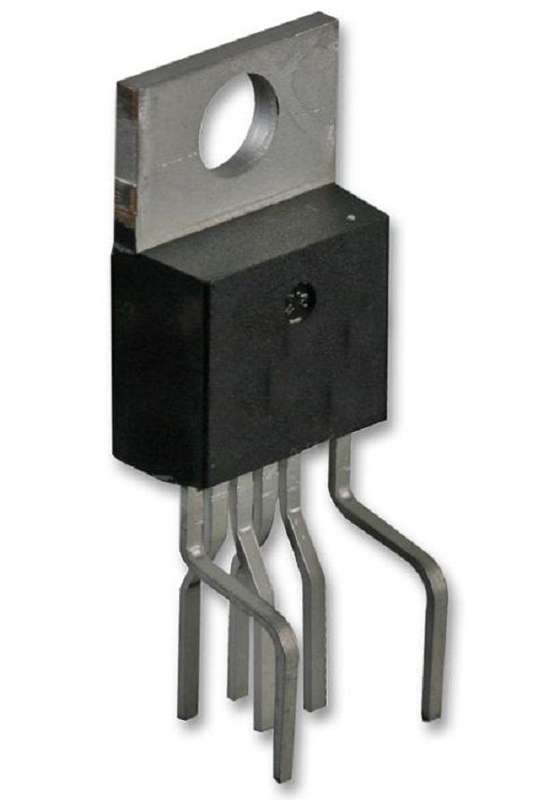

Power Integrations (TOP250YN) AC/DC Converter IC, 85 VAC - 265 VAC

AC/DC Converter IC, TOPSwitch-GX Family, Flyback, 85 VAC - 265 VAC, 210 W,TO-220-6Product OverviewThe TOP250YN is a 135W extended power design flexible integrated Off-lineSwitcher uses the same proven topology as TOPSwitch and it integrating the highvoltage power MOSFET, PWM control, fault protection and other control circuitryonto a single CMOS chip. Many new functions are integrated to improve designflexibility, performance and energy efficiency. Line feed-forward with maximumduty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line.Eliminate or reduce cost of external componentsFully integrated soft-start for minimum stress/over-shootExternally programmable accurate current limitWider duty cycle for more power, smaller input capacitorLine under-voltage detection - No turn OFF glitchesLine over-voltage shutdown extends line surge limitRegulates to zero load without dummy loadingHysteretic thermal shutdown for automatic fault recoveryLarge thermal hysteresis prevents PC board over-heatingApplicationsConsumer Electronics, IndustrialProduct InformationInput Voltage AC Min: 85VInput Voltage AC Max: 265VAC / DC Converter Case Style: TO-220No. of Pins: 6PinsPower Rating: 210WTopology: FlybackOperating Temperature Min: -40°COperating Temperature Max: 150°CProduct Range: TOPSwitch-GX Series
