Power logic PM5100

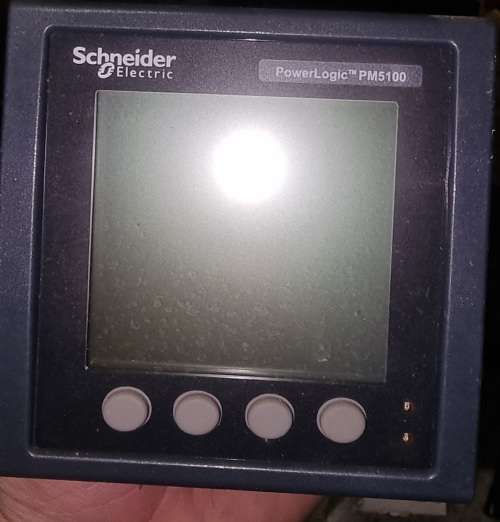

New Schneider power logic PM5100. The Schneider PM5100 is the ideal choice for cost management systems with CL0.5 kWh accuracy and a large back-lit LCD multilingual display

In a single 96 x 96 mm unit, with a graphical display, all three phases, neutral and ground can be monitored simultaneously.

The meters have direct connection up to 690V L-L without voltage transformers complaint with CAT III; allowing more free panel space for the user.

Product Specification

Device(EM5100): Power monitoring

Type of measurements: Active and reactive power (KVAR), Frequency (Hz), Power factor (0-1), Energy (W-KW), Voltage (V), Current (A)

Supply voltage: 125-250 V DC or 110-415 V AC (45-65 Hz)

Network frequency: 50 Hz - 60 Hz

[In] rated current: 1 A, 5 A

Type of network: 1P + Neutral, 3P (3Phase), 3P + Neutral

Power consumption in VA:10 VA at 415 V

Display type: Backlit LCD

Display resolution:128 x 128 pixels

Sampling rate:64 samples/cycle

Measurement current:10 mA- 9 A

Analogue input type: Voltage (impedance 5 MOhm)

Current (impedance 0.3 mOhm)

Accuracy class: Class 0.5S (active energy according to IEC 62053-22)

Insulation: 2500 V

Data recording: Data logs, Event logs, Min/max of instantaneous values, Time, stamping, Alarm logs, Maintenance logs

Memory capacity: 256 kB

Mounting mode: Flush-mounted

Mounting support: Framework

Standards: IEC 60529, IEC 61557-12, IEC 62053-22, EN 50470-1, EN 50470-3, IEC 62053-24

Width: 96 mm

Depth: 72 mm

Height: 96 mm

Product weight: 430g
